-5-
INSTALLATION OF A 6-WIRE INTERCOM
1
2
Set the configuration
jumpers as in the
CALL GENERARTOR MODE JUMPER
Some systems require to use of an internal call genera-
tor. To enable this feature jumper need to be set on po-
sition 2-3. When external ring generator is used, jumper
need to be set on position 1-2.
Internal call generator
External call generator

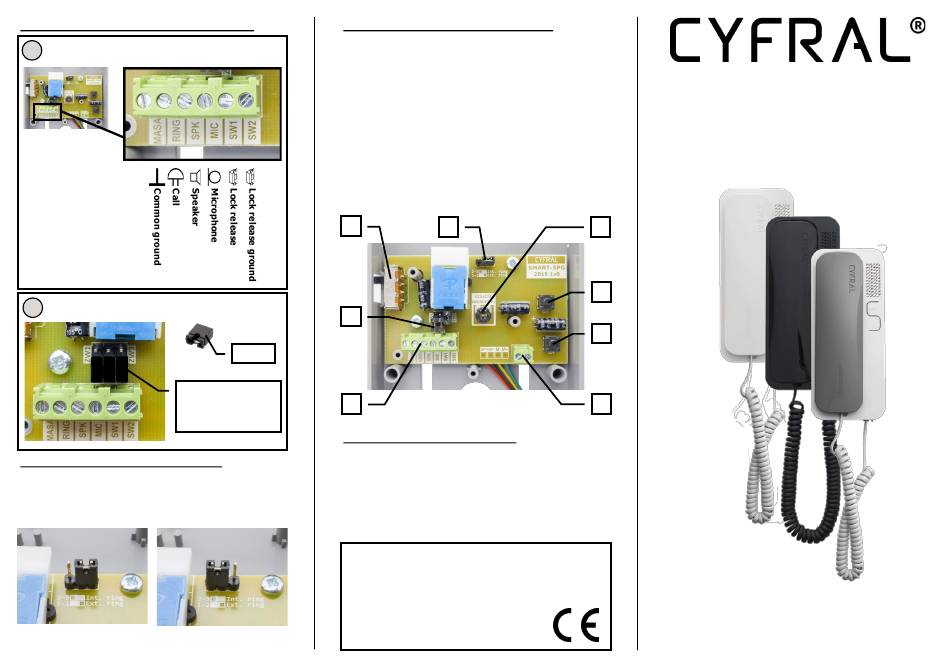

UNIPHONE REGULATION ELEMENTS
1. The main connector for link the uniphone with control
panel
2. Microphone sensitivity adjustment
3. Unit configuration jumpers
4. Multifunction button connector
5. Multifunction button
6. Lock release button
7. 3-position call signal's volume control switch:
- loud call
- medium call
- no sound
8. Call generator mode jumper
7
3
Jumper
1
MULTIFUNCTION BUTTON (5)
The multi-function button is used to connect additional
devices (light switches, gate control etc.) It is indepen-
dent from the intercom system and is a regular short
circuit button.
Maximum Load: 200mA 12V AC/DC
Manufacturer:
CYFRAL Chabelska i Wspolnicy S.J.
ul. Konstantynowska 62/70
95 - 100 ZGIERZ POLAND
e-mail: info@cyfral.pl
www.cyfral.pl
-6-
8
2
6
5
4

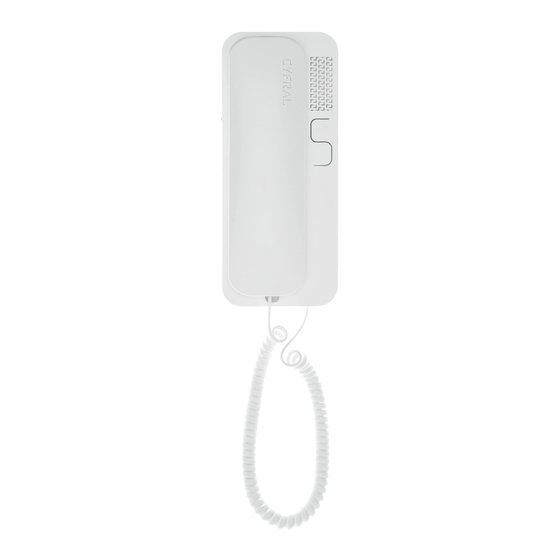

HOUSEHOLD INTERCOM
SMART-5PG
INSTRUCTION MANUAL
(V2.3)
Advertisement
Table of Contents
Related Manuals for Cyfral SMART-5PG
Summary of Contents for Cyfral SMART-5PG
- Page 1 2-3. When external ring generator is used, jumper Maximum Load: 200mA 12V AC/DC need to be set on position 1-2. Manufacturer: CYFRAL Chabelska i Wspolnicy S.J. ul. Konstantynowska 62/70 95 - 100 ZGIERZ POLAND INSTRUCTION MANUAL e-mail: info@cyfral.pl www.cyfral.pl...
- Page 2 COMPATIBILITY TABLE We are very pleased that you decided to purchase the INSTALLATION OF A 5-WIRE INTERCOM SMART-5PG intercom unit. We believe that the top-tier MODEL quality and functionality of our product will meet your Lock Micropho- Common expectations. SMART...
Need help?
Do you have a question about the SMART-5PG and is the answer not in the manual?
Questions and answers
I HAVE TO REPLACE AN OLD ENTRY PHONE BITRON AN0002 ( 6 WIRES ) WITH THE NEW CYFRAL SMART 5PG BUT THE RING NOT WORKING. I'M CLOSED THE JUMPER ON 1-2 INTERNAL RING. DO YOU HAVE SUGGESTION? THANKS AND REGARDS
To troubleshoot the ringing issue when replacing a Bitron AN0002 entry phone with a Cyfral SMART-5PG:
1. Check Wiring Connections: Use the compatibility table. For Bitron AN0002, connect:
- Wire 9 to terminal 1
- Wire 2 to terminal 2
- Wire 6 to terminal 3
- Wire 1 to terminal 4
- Wire C7 to terminal 5
2. Set the Jumper Correctly:
- If using the internal call generator, set the jumper to position 2-3.
- If using an external ring generator, set the jumper to position 1-2.
3. Verify Power Supply: Ensure it provides up to 12V AC/DC and can supply up to 200mA.
4. Test the System: After wiring and jumper settings, test the call function to confirm ringing works.
If the issue persists, double-check wire assignments and jumper position.
