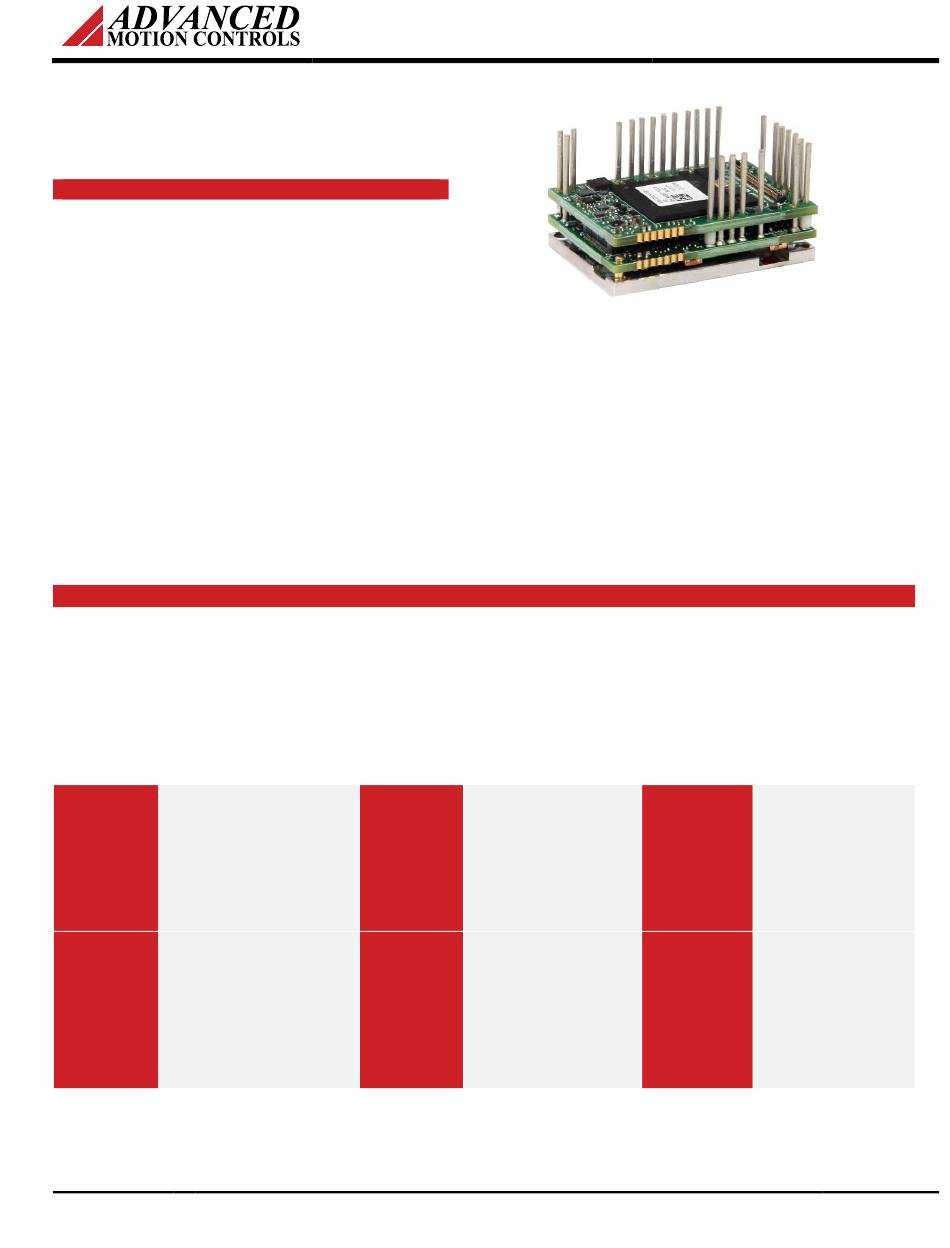

Advanced Motion Controls FlexPro FE060-60C-CM Quick Start Manual

FE060-60C-CM
FlexPro Series
®
Product Status: Active
SPECIFICATIONS
Current Continuous
DC Supply Voltage
Network Communication
The FE060-60C-CM is a FlexPro
The FE060-60C-CM offers full tuning control of all servo loops and is designed to drive brushed and brushless servo
motors, stepper motors, and AC induction motors. The drive accepts a variety of external command signals, or can
use the built-in Motion Engine, an internal motion controller used with Sequencing and Indexing commands.
Programmable digital and analog I/O are included to enhance interfacing with external controllers and devices.
The FE060-60C-CM features a CANopen interface for network communication and USB connectivity for drive
configuration and setup. All drive and motor parameters are stored in non-volatile memory.
IMPACT™ (Integrated Motion Platform And Control Technology) combines exceptional processing capability and
high-current components to create powerful, compact, feature-loaded servo solutions. IMPACT™ is used in all
FlexPro ® drives and is available in custom products as well.
FEATURES
• Follows the CAN in Automation (CiA) 301 Communications
Profile and 402 Device Profile
• Four Quadrant Regenerative Operation
• Programmable Gain Settings
• PIDF Velocity Loop
• Space Vector Modulation (SVM) Technology
• Absolute Encoder
o BiSS C-Mode
o EnDat 2.2
o Tamagawa/Nikon
Feedback
o SSI
Supported
• Incremental Encoder
• Hall Sensors
• Aux Incremental Encoder
• Tachometer (±10V)
• Over the Network
• ±10V Analog
• Sequencing
Command
• Indexing
Sources
• Jogging
• Step & Direction
• Encoder Following
Release Date:
6/12/2024
60 A
10 – 55 VDC
CANopen
®
series servo drive with IMPACT™ architecture.
Motors
Supported
Inputs /
Outputs
ADVANCED Motion Controls · 3805 Calle Tecate, Camarillo, CA, 93012
ph# 805-389-1935 · fx# 805-389-1165· www.a-m-c.com
• Fully Configurable Current, Voltage, Velocity and
Position Limits
• Compact Size, High Power Density
• On-the-Fly Mode Switching
• On-the-Fly Gain Set Switching
• Dedicated Safe Torque Off (STO) Inputs
• Three Phase
• Single Phase
• Stepper
• AC Induction
• 4 Programmable
Digital Inputs
• 3 Programmable
Digital Outputs
• 1 Programmable
Analog Input
FE060-60C-CM
• Profile Modes
• Cyclic Synchronous
Modes
Modes of • Current
• Velocity
Operation
• Position
• Interpolated
Position Mode (PVT)
• RoHS
Agency • UL/cUL
• CE (LVD)
Approvals
Page 1 of 7
