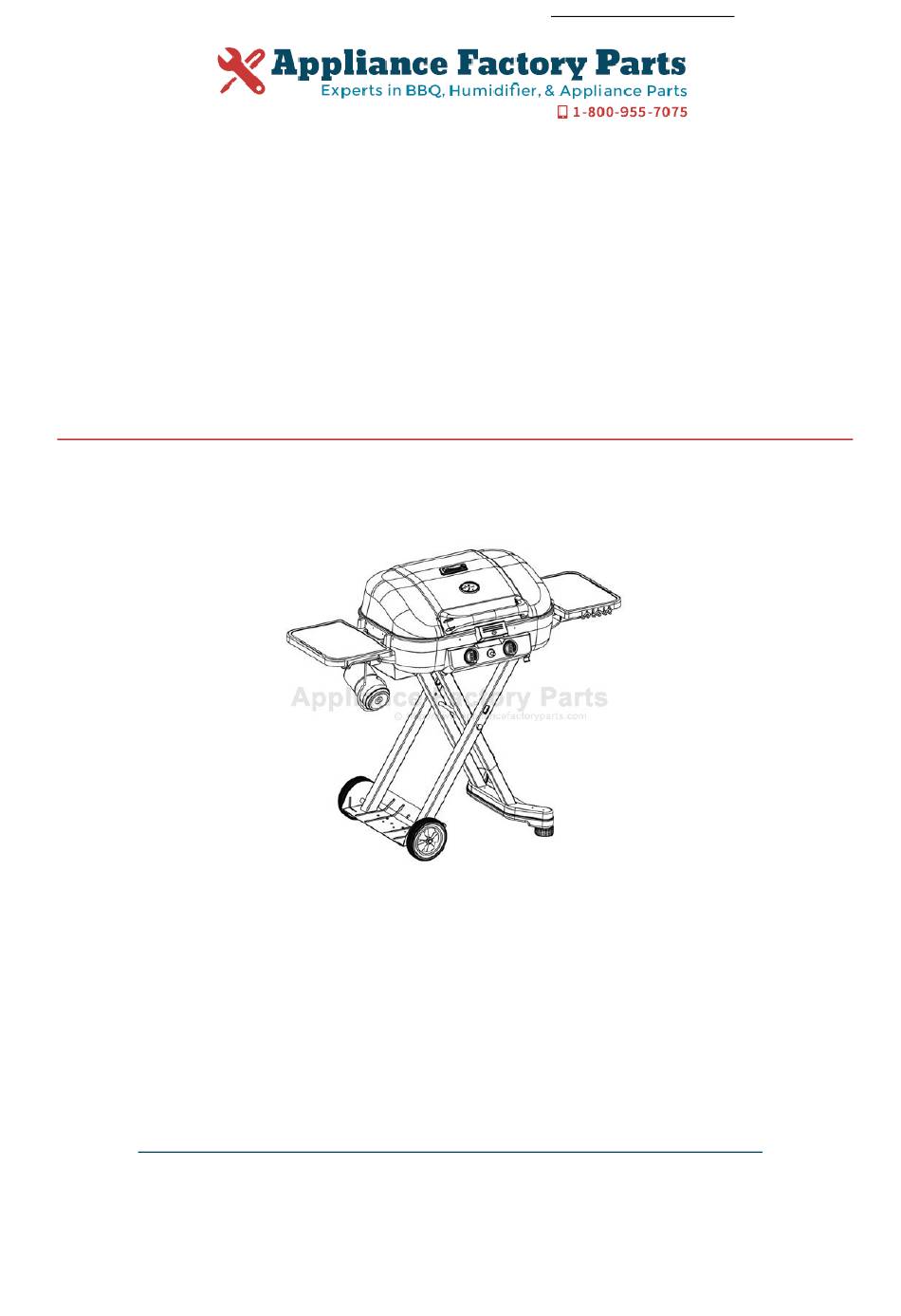

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Coleman 9928-A55 Owner's Manual Shop genuine replacement parts for Coleman 9928-A55 Find Your Coleman Grill Parts - Select From 255 Models -------- Manual continues below --------...
- Page 2 Keep this manual for future reference. If you have questions about NOTE: assembly, operation, servicing or repair of this Propane tank is not included. grill, please call Coleman at 1-800-835-3278 or ® ® TDD: 316-832-8707. In Canada call ANSI Z21.58-2007 • CSA 1.6-2007 1 800 387-6161.
-
Page 3: Table Of Contents
DANGER Contents Technical Characteristics ......... 2 If you smell gas: General Safety Information . -
Page 4: General Installation
1. A minimum clearance of 36 inches from the left, right, back and Coleman for use with this unit. Replacement regulators must bottom sides of the grill must be maintained between the grill and only be those specified by Coleman. -
Page 5: Grill Features
Grill Features 1. Grill Lid 10. Side Shelf with Tool Hooks 2. Thermometer 11. Match Extension (stores under table) 3. Lid Release Latch Towing Handle 4. Control Knob 13. Collapsible Stand 5. Electronic Igniter 14. Side Shelf with Towel Hook 6. -
Page 6: Grill Assembly
Grill Assembly IMPORTANT: Remove all packing material prior to assembly/use. If your grill has stainless steel components, remove all protective plastic film from stainless steel parts prior to assembly/use. This film is installed at the factory to prevent damage that could occur during shipment and handling. 5. -
Page 7: Interior Parts Use And Care
Interior Parts Use and Care Open the grill lid by raising the bottom of the lid latch 11. Two thumbscrews hold each removable heat tent in place. Remove (Fig. 9). the thumbscrews and the heat tents for cleaning or to inspect the burner. -
Page 8: Installing 1 Lb. Disposable Cylinder
13. After cleaning or inspection, 2. Open the grill lid and extend the side tables. Lower the Fig. 15 return the burners down to the propane bottle support (Fig. 17). proper position. Check that all the burner venturi are set over Fig. -
Page 9: Leak Testing - Disposable Gas Cylinders
REVENT IRE OR XPLOSION AZARD faulty part with a replacement part recommended by Coleman. DO NOT attempt to repair the cylinder if it should become damaged; the cylinder MUST be replaced. • NO SMOKING. DO NOT use or permit 2. If you are unable to stop a leak, remove the cylinder from the sources of ignition in the area while doing grill. -
Page 10: Lighting Instructions
Lighting Instructions Lighting The Burners WARNING 1. Push and turn one of the burner control knobs counterclockwise to the “HIGH” position. Wait 5 seconds (Fig. 23 and 24). THE FOLLOWING RULES MUST ALWAYS BE 2. Push igniter button repeatedly until burner lights. You will hear a snapping sound (Fig. -
Page 11: Shutting Off The Grill
Condition The Grill Shutting Off the Grill • Before using the grill for the first time, or after storage, operate the grill 15 minutes on the high setting with the lid closed, to CAUTION burn away oil. • Once the oil has burned away, check the burner flame per the next step. -
Page 12: Grilling Tips And Hints
• Use a medium flame setting for direct cooking of steaks, pork 5. If any of the above mentioned components are damaged, seek replacement from Coleman before operating the grill again. chops, chicken and hamburgers. Locate your nearest service center by calling 1-800-835-3278. -
Page 13: Care, Maintenance And Cleaning
CAUTION Care, Maintenance and Cleaning All cleaning and maintenance should be done only when the grill is cool & with the fuel supply turned off at the cylinder. DRIP TRAY Disposable propane cylinders should be detached from the The drip tray is located below the grill and should be cleaned grill during cleaning. -
Page 14: Cleaning The Venturi
3. Using a screwdriver, remove the screws holding the heat tents Cleaning the Venturi and set aside (Fig. 32). Fig. 32 WARNING Spider’s nests or wasp’s mud inside the venturi may cause fire at the valve. If a fire occurs, immediately turn off the gas supply at the L.P. -
Page 15: Moving And Storage
Moving and Storage Troubleshooting (continued) CAUTION Problem: Flame blows out on low setting or has uneven heat distribution. A collision with the grill, as with any metal object, could cause injury. Use care when moving a portable gas grill. Possible Causes and Solutions: Moving the grill: 1. -
Page 16: Registration Card
¨ warranty. PROTECT YOUR PRODUCT: We will keep the model number and date of purchase of your new Coleman ¨ product on file to help you refer to this information in the event of an insurance claim such as fire or theft. - Page 17 Dependable igniter Thank you for filling out this questionnaire. Your answers are important to us. Please check here [ ] if you prefer not to learn more about Coleman ® Outdoor Cooking Products or obtain information on new interesting opportunities from other companies.
-
Page 18: Replacement Parts List
Replacement Parts List — 9928 Series No. Part Number Description No. Part Number Description 9928-1951 Logo Plate 9928-1131 Fascia 9928-1581 Thermometer Assembly 9928-5561 Match Extension Assembly 9928-1291 Lid Handle 9928-1241 Grease Tray 9928-5051 Lid Assembly - (1) piece porcelain 9928-5651 Threaded Foot Assembly 9928-2171 Wheel... -
Page 19: Warranty
Limited Three Year Warranty The Coleman Company, Inc. (“Coleman”) warrants that for a period of three years from the date of original retail purchase, this product will be free from defects in material and workmanship. Coleman, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period.
