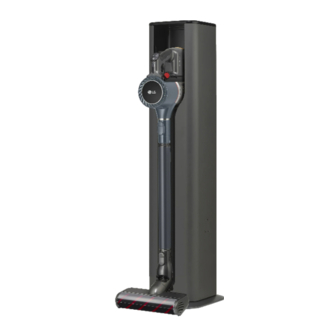

LG VDS-ST8 Series Owner's Manual

Auto empty charging station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Scan to see the online manual.
OWNER'S MANUAL
AUTO EMPTY
CHARGING STATION
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
VDS-ST8****
www.lg.com
MFL71780948
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
Rev.00_072523

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDS-ST8 Series and is the answer not in the manual?

Questions and answers

Related Manuals for LG VDS-ST8 Series

Summary of Contents for LG VDS-ST8 Series

  • Page 1 Scan to see the online manual. OWNER'S MANUAL AUTO EMPTY CHARGING STATION Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH VDS-ST8**** www.lg.com MFL71780948 Copyright © 2023 LG Electronics Inc. All Rights Reserved. Rev.00_072523...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE WARNING STATEMENTS CAUTION STATEMENTS INSTALLATION Product Overview Installing the Charging Station Storing the Accessories 14 OPERATION Charging the Battery Getting Started 20 MAINTENANCE Cleaning the Appliance 23 TROUBLESHOOTING Before Calling for Service...

  • Page 3: Important Safety Instructions

    LG Electronics service center. • Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners.
  • Page 4 • Never use the battery and the charging station from other appliances with this appliance. Use only the battery and the charging station provided by LG Electronics. • Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 5 • If the product has been submerged, contact an LG Electronics service center or dealer for instructions before resuming use. • If the product makes a strange noise or emits an odor or smoke, discontinue use and contact an LG Electronics customer information center.
  • Page 6 • If the earth leakage breaker is tripped when the product is put on the charging station, immediately remove the appliance from the charging station. Contact an LG Electronics customer service center. • Do not use or store a heating device or flammable substance (ether, benzene, alcohol, chemicals, combustible sprays, insecticide, air freshener or cosmetics) in close proximity to the appliance.

  • Page 7: Caution Statements

    IMPORTANT SAFETY INSTRUCTIONS CAUTION STATEMENTS CAUTION • To reduce the risk of injury to persons, malfunction, or damage to the product or property when using the appliance, follow basic safety precautions, including the following: Operation • Do not open the door of the product using excessive force. •...

  • Page 8: Installation

    • For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction, property damage or bodily injury caused by the use of separately purchased unauthorized components, parts, or non-LG products. Front View...
  • Page 9 NOTE • The dust bag, exhaust filter and the motor protection filter will eventually need to be Dust Bag (Expendable) replaced. Contact an LG Electronics customer service center. Installation Kit • The product is shipped with a dust bag already installed.
  • Page 10 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue North Building Englewood Cliffs, NJ 07632 Email lg.environmental@lge.com This device complies with part 15 of the FCC Rules.

  • Page 11: Installing The Charging Station

    INSTALLATION Installing the Charging Station CAUTION • Do not allow children or pets to hang onto the charging station. They could be injured or cause damage to the appliance. • Take care not to drop the product parts while unpacking them to avoid appliance damage or personal injury.

  • Page 12: Storing The Accessories

    12 INSTALLATION WARNING • When drilling a hole in concrete, take care and wear protective goggles. • Before drilling into a wall, make sure that there are no vents, gas or water pipes, or electrical cables behind the wall. Before moving the product to its final position, mark the location on the wall where Use the product mounting screw to attach the you will attach the anti-tip cord.
  • Page 13 INSTALLATION Hang the nozzle on the nozzle hook. NOTE • Before moving the product, unplug it and remove the vacuum cleaner, nozzles, and accessories. • To carry the product, open both doors and hold the areas shown. Storage Inside Open the left door of the product and insert the bedding nozzle or the pet nozzle storage.

  • Page 14: Operation

    14 OPERATION OPERATION Charging the Battery • When charging is complete, the battery level indicator ( ) lights up briefly and then turns off to save energy. Before Charging the Battery • To save energy while charging the product • Make sure that the adapter is connected to both body, press the Select Mode button to the charging station and the power outlet.
  • Page 15 OPERATION Press the battery down into the compartment. NOTE • Insert the auxiliary battery completely. If the auxiliary battery is inserted correctly, the auxiliary battery icon ( ) flashes. • The auxiliary battery icon ( ) in the status display flashes during charging and then lights up briefly and turns off to save energy when charging is complete.

  • Page 16: Getting Started

    16 OPERATION Getting Started Control Panel Features Control Panel List Descriptions Status Display The display shows the dust emptying operation status or when to replace the dust bag, charging status of the auxiliary battery, and dust emptying mode. Start Press the Start/Stop button once to start the dust emptying operation when using the manual dust emptying mode.
  • Page 17 OPERATION List Descriptions • Indicates the dust emptying operation status or when to replace the Dust Emptying (Replace Bag) dust bag. Indicator - White: Product is emptying dust. - Flashing red: If the indicator flashes red while emptying dust, replace the dust bag at the end of the dust emptying operation.
  • Page 18 18 OPERATION • Do not put foreign objects such as hands, garbage, or toys in the dust suction area of the product without a vacuum cleaner mounted. • Do not push, pull, or lean on the product; it may fall, causing injury or damage. •...
  • Page 19 OPERATION remove remaining dust. For more information, see the vacuum cleaner owner's manual. • The UV function in the dust bag enclosure automatically starts when the vacuum cleaner is inserted into the product. It runs for 2 hours or until the door is opened or the vacuum cleaner is removed.

  • Page 20: Maintenance

    20 MAINTENANCE MAINTENANCE Cleaning the Appliance Clean the dust around the dust suction area using a vacuum cleaner. Before Cleaning the Appliance • Replace the dust bag when the dust emptying (replace bag) icon flashes red. • Replace the dust bag every month to maintain the dust emptying performance.
  • Page 21 MAINTENANCE Pull out the dust bag lever to remove the Slide the dust bag in along the rails of the dust bag. product until it is completely inserted. • As the dust bag is pulled out, the top opening is closed. Grab the dust bag lever and push it up until you hear a "click"...
  • Page 22 • Replace the dust bag if it smells, even if it is not hand. full. • The motor protection filter will eventually need to be replaced. Contact an LG Electronics customer service center. Cleaning the Filters Clean the motor protection filter and the exhaust filter every 3 months or sooner if the dust emptying function seems weaker.

  • Page 23: Troubleshooting

    Product setting The internal motor of the product is not operating properly . initialization doesn't • Disconnect the power plug from the outlet and contact an LG Electronics Service Center. work even after the power plug is plugged in again.
  • Page 24 Two icons [dust The motor that holds the vacuum cleaner isn't working properly. emptying (replace • Disconnect the power plug from the outlet and contact an LG Electronics Service Center. bag) and auxiliary battery] flash The motor that opens and closes the vacuum cleaner dust bin cover isn't working simultaneously.
  • Page 25 Memo...
  • Page 26 26 Memo...
  • Page 27 Memo...
  • Page 28 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...
