PROJECT NAME
EMERALD
BASED ON
®
BOSS
PH-1r Phaser
EFFECT TYPE
4-stage phaser
PROJECT SUMMARY
A four-stage JFET-based phaser similar to the Phase 90, but with with a frequency-dependent feedback
control that accentuates the phase effect.
This documentation is for the kit version of the project. If you purchased the PCB by itself, please
use the
PCB-only version
are completely different due to the specialized parts and assembly methods used in the kit.

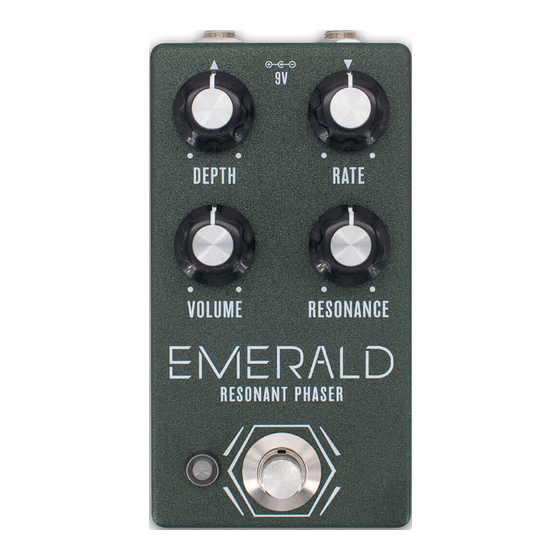

EMERALD RESONANT PHASER
IMPORTANT NOTE
of the documentation instead. The circuit is the same, but the instructions
BUILD DIFFICULTY
Intermediate
DOCUMENT VERSION
1.0.0 (2024-06-01)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for aion EMERALD
Summary of Contents for aion EMERALD
- Page 1 This documentation is for the kit version of the project. If you purchased the PCB by itself, please use the PCB-only version of the documentation instead. The circuit is the same, but the instructions are completely different due to the specialized parts and assembly methods used in the kit. EMERALD RESONANT PHASER...
-
Page 2: Table Of Contents
24 Enclosure Layout: Input/Output PCB 25 Testing & Assembly 26 Bias, Final Assembly, Usage 27 Schematic 28 Full Parts List 29 Full Parts List (cont.) 30 Troubleshooting Information 31 Support & Resale Terms 32 Legal Information & Document Revisions EMERALD RESONANT PHASER... -
Page 3: Introduction
INTRODUCTION If this is your first pedal, welcome to the hobby and thank you for choosing Aion FX. You’ve just joined a community of over 40,000 people around the world with a passion for building homemade noise machines using obsolete electronics technologies, and we’re glad to have you! If you’ve done this before, it’s great to see you again and we’re confident you’ll find this build experience... - Page 4 NAME Diodes 47pF (marked “470”) NAME 100pF (marked “101”) 1N5817 100n (marked “104”) 1N914 Transistors 1N5231B (marked “231B”) NAME JFETs 2N5088 NAME Trimmers 2SK208-GR, matched set of 4 NAME 16-pin header, right angle 16-pin socket 100k trimmer EMERALD RESONANT PHASER...
- Page 5 Enclosure screws Lock washer, stomp switch, 0.6" PCB, main circuit Dress nut, stomp switch, 0.77" PCB, footswitch Wiring PCB, input/output/DC NAME 3-strand wire assembly, 70mm 4-strand wire assembly, 122mm 3-pin wire assembly header 4-pin wire assembly header EMERALD RESONANT PHASER...
-
Page 6: Tools Needed
The tip should used to tighten the dress nut to avoid lot of pedals! be no more than 0.1” (2.5mm) wide. scratching or denting it (which can happen with metal tools). EMERALD RESONANT PHASER... -
Page 7: Component Identification
Some voltage regulators The pins will be soldered to the also look like this. They may also look like this. adapter during kit assembly. have more than 8 legs. WIRE ASSEMBLY WIRE ASSEMBLY HEADER DC JACK LED BEZEL EMERALD RESONANT PHASER... -
Page 8: Hardware Identification
MOUNTING NUT DRESS NUT LOCK WASHER DIAMETER: 0.36” / 9.1mm DIAMETER: 0.375” / 9.5mm DIAMETER: 0.4” / 10.1mm FOOTSWITCH MOUNTING NUT DRESS NUT LOCK WASHER DIAMETER: 0.6” / 15.2mm DIAMETER: 0.77” / 19.6mm DIAMETER: 0.6” / 15.2mm EMERALD RESONANT PHASER... -
Page 9: Overview
6. Transistors 7. Electrolytic capacitors Not all of these component types are included in each kit, so skip them if they aren’t applicable. Some types of film capacitors are taller than electrolytics, so those can be done last. EMERALD RESONANT PHASER... -
Page 10: Resistors
Turn the board upside-down to keep the components held in place while you solder. Don’t try to do all of the resistors at once. You’ll want to stop periodically flip the board and solder everything, then cut the leads using the wire snippers to make room for more. EMERALD RESONANT PHASER... -
Page 11: Diodes
D2 and Z1 are both orange and black and similar in size, but D2 (1N914) will have two paper tabs on the ends of the leads while Z1 (1N5231B) will be loose. EMERALD RESONANT PHASER... -
Page 12: Sockets & Ics
ICs may have two different orientation marks: either a dot in the upper-left or a half-circle notch in the middle of the top side. Some ICs have both marks. This shows which way the IC should be rotated when inserting it into a socket (the socket also has a half-circle notch). EMERALD RESONANT PHASER... -
Page 13: Trimmer
Next, we’ll do the trimmer. Bend the legs outward to keep it in place while soldering. Setting the trimmer The trimmer will be used for the calibration process on page 26 and should not be adjusted after calibration is completed. For now, set it to the 50% position (12:00 noon). EMERALD RESONANT PHASER... -
Page 14: Transistor
Note that there is an extra “E” pad next to the transistor outline. This is only used for NOS Japanese transistors with different pinouts and should be ignored for the kit build. Install the transistor as shown in the silkscreen on the PCB. EMERALD RESONANT PHASER... -
Page 15: Capacitors (Non-Polarized)
Usually the red ones have it printed on the side while the blue or gray ones have it on the top. All of the MLCCs except C23 are blue MLCC capacitors taped to cardboard. For these, the value will be written on the cardboard. C23 (100n MLCC) is yellow and is most easily identified by color. EMERALD RESONANT PHASER... -
Page 16: Wire Header Sockets
Now is the time to go back to page 13 and insert the ICs into the sockets. These are the same height as the JFET socket in the next step, so it will help keep the PCB level while that is installed. EMERALD RESONANT PHASER... -
Page 17: Jfet Socket
It can be helpful to solder just a single pin at first so you can check the angle. This gives room to reflow the joint if it’s not level with the board. Once you’ve soldered more than one joint, it will be very difficult to correct. EMERALD RESONANT PHASER... -
Page 18: Capacitors (Polarized)
“+” (positive) side marked instead of the negative. Since tantalum capacitors aren’t commonplace in guitar pedals, many people instinctively reverse them, and as a result, their build has issues. Like electrolytics, the longer leg still goes in the square pad. EMERALD RESONANT PHASER... -
Page 19: Jfet Module
Identify the short and long pins front (refer to step 3 diagram). facing it straight on. of the main PCB and the spare of the right-angle pin header. pin is on the far left side. EMERALD RESONANT PHASER... -
Page 20: Footswitch Pcb
BLUE MARKING Once all three wire assemblies are soldered, set the footswitch PCB aside. We’ll solder the actual footswitch and LED in a later step. EMERALD RESONANT PHASER... -
Page 21: Input/Output Pcb
PCB. There’s not a lot of clearance between the bottom of this board and the top of the main PCB once everything is in place, and you don’t want the pins to short against anything on accident. EMERALD RESONANT PHASER... -
Page 22: Enclosure Layout: Panel Mounts
You’ll need to hold the bezel in place when OUTER WASHER tightening the nut. Be aware that the bezel is fairly MOUNTING NUT sharp. Try using a rubber band for grip instead of just pressing your finger against the bottom. EMERALD RESONANT PHASER... -
Page 23: Enclosure Layout: Main & Footswitch Pcbs
However, Aion FX projects are designed to be extremely easy to remove from the enclosure for troubleshooting, with no desoldering required—so with these kits, it’s actually much easier to “box it before you rock it”. -
Page 24: Enclosure Layout: Input/Output Pcb
Note the use of two mounting nuts on each of the jacks, one inside and one outside. The inner nut acts as a spacer to set the DC jack flush with the outside of the enclosure. The inner nuts should be threaded as far down as they can go. MOUNTING NUT OUTER WASHER LOCK WASHER MOUNTING NUT 125B EMERALD RESONANT PHASER... -
Page 25: Testing & Assembly
Don’t over-tighten or you could damage the set screw. But on the other hand, if it’s not tight enough then the knob will be prone to falling off or losing its alignment with the markings on the enclosure. EMERALD RESONANT PHASER... - Page 26 If doesn’t work, or doesn’t sound quite right after calibration, don’t be discouraged. See page 30 for troubleshooting info. USAGE The Emerald has four controls: • Rate sets the speed of the phaser effect, from 100 milliseconds to 16 seconds. • Depth sets the intensity of the phaser effect.
-
Page 27: Schematic
15uF tantalum 1N5817 100uF 47uF 100n 0.1uF IC4B IC4A RATE TL022P TL022P 470k RESONANCE 10kB 2N5088 IC1A IC2A IC2B IC3A IC3B 470R IC1B JRC4558D JRC4558D JRC4558D JRC4558D JRC4558D JRC4558D 100pF 330k 330k 330k 330k 2SK208-GR 2SK208-GR 2SK208-GR 2SK208-GR EMERALD RESONANT PHASER... -
Page 28: Full Parts List
1uF film 10n film 1uF film 47uF electro 47pF MLCC 10n film 1uF film 0.1uF tantalum 100pF MLCC 10n film 47pF MLCC 100uF electro 33n film 10n film 1uF film 100n MLCC 10n film 10n film 10n film EMERALD RESONANT PHASER... -
Page 29: Full Parts List, Cont
DIP-8 socket (4) 2SK208-GR 1N914 JRC4558D 16-pin header & socket 2SK208-GR 1N5231B JRC4558D 2SK208-GR TL022 2SK208-GR Trimmers Potentiometers Switches PART VALUE PART VALUE PART BIAS 100k Rate 1MC (C105) 3PDT stomp Depth 100kB Res. 10kB Volume 100kA EMERALD RESONANT PHASER... -
Page 30: Troubleshooting Information
4.72 4.72 3.77 4.70 4.72 4.72 4.71 Note: The voltage on the “G” pins of Q2-5 will oscillate with the position of the Rate control, and the range will vary with the position of the Bias trimmer. EMERALD RESONANT PHASER... - Page 31 “goop” the PCB or otherwise obscure the source. In other words: you don’t have to go out of your way to advertise the fact that you use Aion FX kits, but please don’t go out of your way to hide it.
- Page 32 These kits are intended to be built by the customer. Aion FX is not responsible for language that may be used by the customer in the marketing or resale of the finished product.
