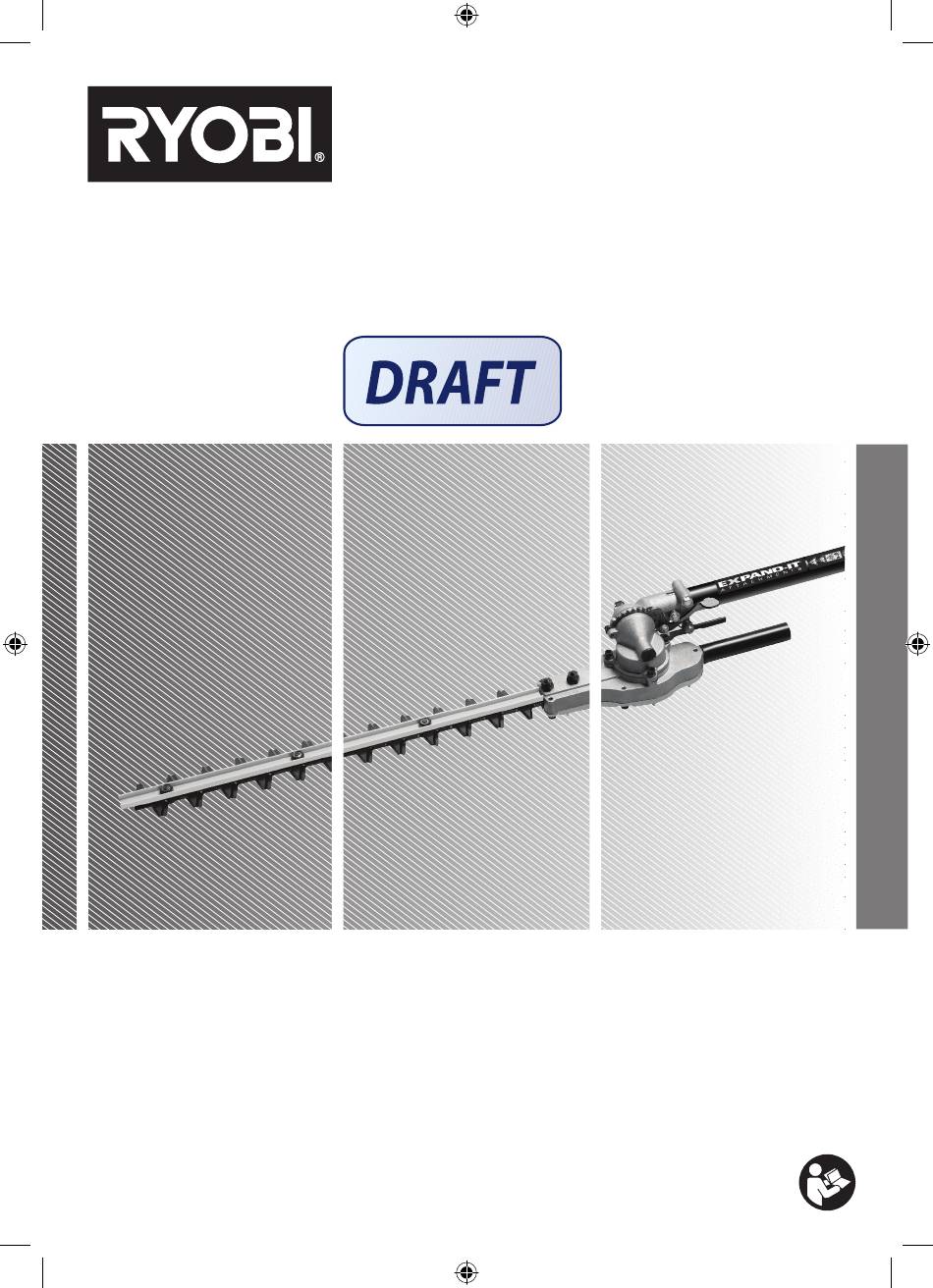

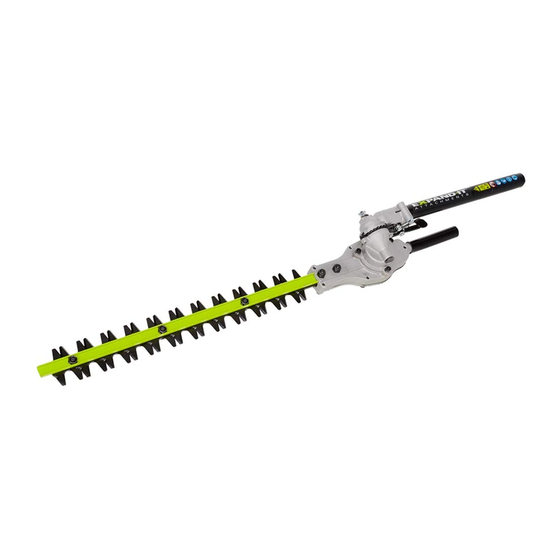

  • Page 1 FRONT PAGE AHF05...

  • Page 2: Intended Use

    ■ Keep children and bystanders away while operating IMPORTANT! a power tool. Distractions can cause you to lose control. It is essential that you read the instructions in this manual ELECTRICAL SAFETY before assembling, operating, and maintaining the product. ■ Power tool plugs must match the outlet.

  • Page 3: Hedge Trimmer Safety Warnings

    ■ Do not let familiarity gained from frequent use of make a connection from one terminal to another. tools allow you to become complacent and ignore Shorting the battery terminals together may cause burns tool safety principles. A careless action can cause or a fire.

  • Page 4: Additional Safety Warnings

    ● before leaving the product unattended ADDITIONAL SAFETY WARNINGS ● before checking, maintaining, or working on the ■ Some regions have regulations that restrict the use of product the product to some operations. Check with your local ■ Do not modify the product in any way. authority for advice.

  • Page 5: Maintenance

    inside them. Corrosive or conductive fluids, such as service centre only. When servicing, use only original seawater, certain industrial chemicals, and bleach or replacement parts. bleach-containing products, etc., can cause a short ■ You may only make adjustments or repairs described circuit.

  • Page 6: Symbols On The Product

    If you experience any of the symptoms of this condition, immediately discontinue use and see your physician. Warning ■ Injuries may be caused, or aggravated, by prolonged use of a product. When using any product for prolonged periods, ensure to take regular breaks. Unlock SYMBOLS ON THE PRODUCT Lock...
  • Page 7 AHF05 Blade Attachment hanger Adjustment handle Safety lock lever Lock ratchet wheel Blade cover Operator's manual Know your product...
  • Page 8 Wear eye, ear, and head protection Press the attachment hanger lock and remove the attachment hanger. when operating the product. Wear non-slip, heavy-duty protective gloves when handling the blade assembly. Wear non-slip, protective footwear that will protect your feet and improve your footing on slippery surfaces.
  • Page 9 Trimming the hedge Trimming the hedge p.10 p.12 from the side from the top Cleaning the Storing the product p.15 p.16 product...
  • Page 10 ≤60˚ ≥15m (50 ) (50’) TRIMMING THE HEDGE FROM THE SIDE WARNING: Risk of electrocution! Do not operate within 10 m of overhead electrical lines. Position the product at an angle of 60° or less, depending on the specific situation. Keep bystanders at least 15 m away.
  • Page 11 4. Push down the lock ratchet wheel. 5. Adjust the working angle to 90°. 6. Push down the lock ratchet wheel. 7. Push down the safety lock lever to lock the working angle. 8. Remove the blade cover. ≤90º Operation...
  • Page 12 9. Begin trimming the side of the hedge from left to right. TRIMMING THE HEDGE FROM THE 1. Install the blade cover. 2. Turn the lock on the power head counterclockwise. Press the attachment hanger lock. 3. Remove the product from the power head.
  • Page 13 4. Rotate the product 180°. 5. Reattach it to the power head until the attachment hanger lock clicks into place. 6. Turn the lock on the power head clockwise to secure the connection. 7. Lay the product on the ground. 8.
  • Page 14 9. Push up the lock ratchet wheel. 10. Adjust the working angle to 90°. 11. Push down the lock ratchet wheel. 12. Push up the safety lock lever to lock the working angle. 13. Remove the blade cover. ≤90º Operation...

  • Page 15: Cleaning The Product

    14. Begin trimming the top of the hedge from left to right. CLEANING THE PRODUCT 1. Clean the body and handles of the product with a soft, dry cloth and a stiff brush. WARNING: Do not use water to clean the product.

  • Page 16: Storing The Product

    STORING THE PRODUCT WARNING: Make sure that the product is clean before storing. 1. Install the blade cover. 2. Turn the lock on the power head counterclockwise. Press the attachment hanger lock. 3. Remove the product from the power head. 4.

  • Page 17: Product Specifications

    1,200 W Uncertainty of measurement K = 1.5 m/s Rated voltage 230 - 240 V a.c. 50 Hz NOTE: Visit your local special orders desk or contact RYOBI No-load speed 1,800/min customer service for replacement parts. Maximum product working length...
