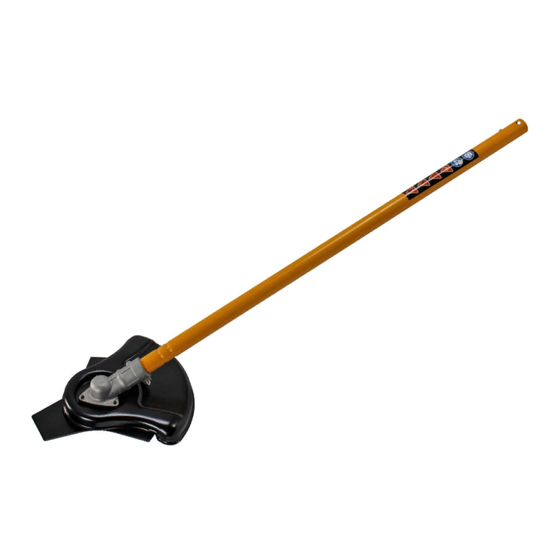

Brushcutter attachment
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

OPERATOR'S MANUAL
BRUSHCUTTER ATTACHMENT
ABC04G
Your brushcutter attachment has been engineered and manufactured to our high standard for dependability, ease of opera-
tion, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REF ER ENCE
