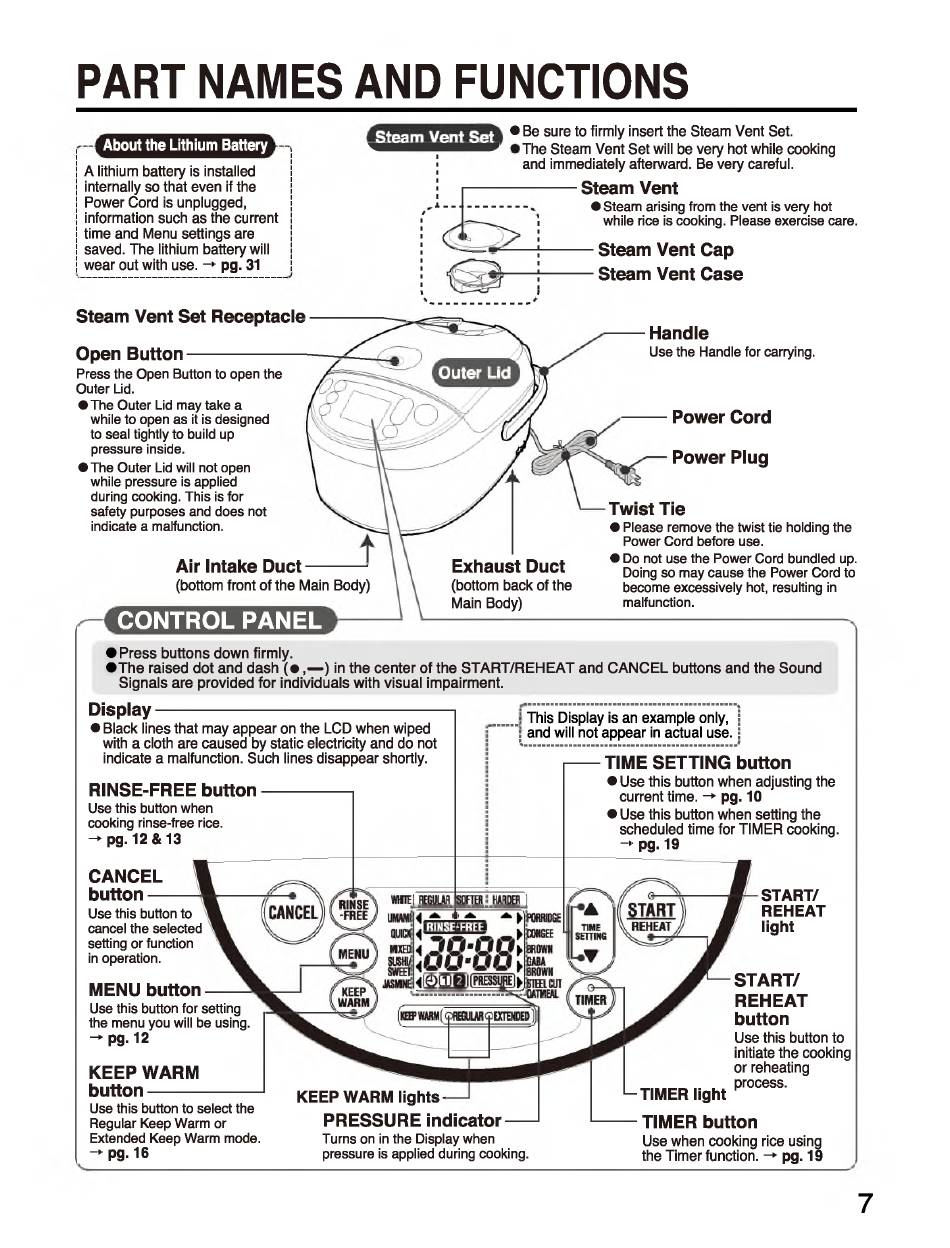

PART NAMES AND FUNCTIONS

About the Lithium Battery
A lithium battery is installed
internally so that even if the
Power Cord is unplugged,
information such as the current
time and Menu settings are
saved. The lithium battery will
wear out with use. -*• pg. 31
Steam Vent Set Receptacle
Open Button
Press the Open Button to open the
Outer Lid.
• The Outer Lid may take a
while to open as it is designed
to seal tightly to build up
pressure inside.
• The Outer Lid will not open
while pressure is applied
during cooking. This is for
safety purposes and does not
indicate a malfunction.
Air Intake Duct
(bottom front of the Main Body)
CONTROL PANEL
• Press buttons down firmly.
•T h e raised dot and dash ( • , — ) in the center of the START/REHEAT and CANCEL buttons and the Sound
Signals are provided for individuals with visual impairment.
Display
• Black lines that may appear on the LCD when wiped
with a cloth are caused by static electricity and do not
indicate a malfunction. Such lines disappear shortly.
RINSE-FREE button
Use this button when
cooking rinse-free rice.
-►pg. 12 & 13
CANCEL
button
Use this button to
cancel the selected
setting or function
in operation.
MENU button
Use this button for setting
the menu you will be using.
- pg-12
KEEP WARM
button-----------------
Use this button to select the
Regular Keep Warm or
Extended Keep Warm mode.
-*• pg. 16
Exhaust Duct
(bottom back of the
Main Body)
KEEP WARM lights -
PRESSURE indicator —
Turns on in the Display when
pressure is applied during cooking.
• Be sure to firmly insert the Steam Vent Set.
The Steam Vent Set will be very hot while cooking
and immediately afterward. Be very careful.
Steam Vent
• Steam arising from the vent is very hot
while rice is cooking. Please exercise care.
Steam Vent Cap
Steam Vent Case
Handle
Use the Handle for carrying.
Power Cord
Power Plug
Twist Tie
• Please remove the twist tie holding the
Power Cord before use.
• Do not use the Power Cord bundled up.
Doing so may cause the Power Cord to
become excessively hot, resulting in
malfunction.
■ This Display is an example only,
; and will not appear in actual use.
TIME SETTING button
• Use this button when adjusting the
current time. -*• pg. 10
• Use this button when setting the
scheduled time for TIMER cooking.
-*• pg. 19
' — TIMER light
TIMER button
Use when cooking rice using
the Timer function. -*• pg. 19
START/
REHEAT
light
START/
REHEAT
button
Use this button to
initiate the cooking
or reheating
process.
