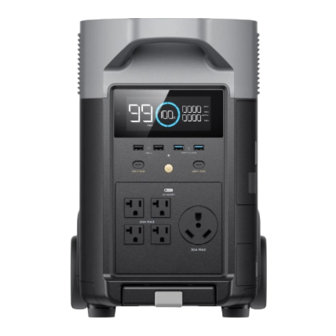

EcoFlow DELTA Pro Manual

Portable power station
Hide thumbs Also See for DELTA Pro:

Advertisement

Table of Contents

Contents
Contents
Overview
LCD Screen
Power On/O-
Charge Your Devices
Charge DELTA Pro
X-Boost
EPS
Care and Maintenance
Specifications
EcoFlow App
What's in the Box
Accessories
FAQ
Safety Instructions
FAQ
Overview
Overview
1
Ambient light detector
2
LCD screen
3
USB-A output port
4
Main power bu'on
5
AC power bu'on
6
AC output sockets*
7
Pairing indicator
8
USB-A fast charging output port
EcoFlow App
After-sales Policy
CANADIPAD
13
14
15
16
17
18
19
20
Community
X-Stream charging input port
Overload protection switch
Extra ba'ery port
Anderson port
Car outlet
DC5521 output port
12V DC power bu'on
Remote control port

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELTA Pro and is the answer not in the manual?

Questions and answers

Nicholas Underhill
May 15, 2025

Where is the pv switch for solar charging? How do I enable solar charging?

0

Related Manuals for EcoFlow DELTA Pro

Summary of Contents for EcoFlow DELTA Pro

  • Page 1 Contents Overview EcoFlow App After-sales Policy Community LCD Screen Power On/O- Charge Your Devices Overview Overview Charge DELTA Pro X-Boost Care and Maintenance Specifications EcoFlow App CANADIPAD What’s in the Box Accessories Safety Instructions Ambient light detector X-Stream charging input port...

  • Page 2: Lcd Screen

    Bluetooth standby switch: After the Bluetooth standby switch is turned on, DELTA Pro still works with the main power bu'on turned o-, use EcoFlow app or remote control (sold separately) to turn on/o- the product (Bluetooth standby has a certain amount of power consumption, please turn it o- if you don’t need to remotely control the...

  • Page 3: Charge Your Devices

    O-: Internet connection failed *Error code Refer to the EcoFlow app for details Refer to "Troubleshooting" for details. Power On/O- Power On/O- Power On: Short press once Power On: Short press once Press the main power bu'on once to turn on the product, then the LCD screen lights up and the main power indicator becomes breathing white.
  • Page 4 AC Output AC Output Press the AC Power Bu'on once to turn on/o- the AC output sockets. Total power: 3600W Please make sure that the product is turned on. Make sure that the sum power of all loaded devices is lower than that of the rated power.
  • Page 5 Overload Protection Switch to resume charging. The charging power can be adjusted through the AC Charge Speed Switch on the back of the product. You can set the charging power range in the EcoFlow App.
  • Page 6 11-150V⎓15A Max, 1,600W Max 1. Solar charging cable (MC4-XT60 adapter cable) and the solar panel are supplied separately. 2. When using an EcoFlow solar panel to charge the product, please follow the instructions that come with the solar panel. 3. Before connecting the solar panel, please ensure that the solar panel’s output voltage is within 150V to avoid product damages.
  • Page 7 Smart Extra Ba'ery Smart Extra Ba'ery A single DELTA Pro can link with up to two Smart Extra Ba'eries at once for added capacity. Refer to the user manuals of the Smart Extra Ba'ery and Smart Generator for detailed instructions.

  • Page 8: Care And Maintenance

    X-Boost X-Boost With EcoFlow X-Boost technology, the product can power a 4,500W max. device while the rated output power remains 3,600W, avoiding operation failure due to ovverload protection. X-Boost Tips: 1. X-Boost is not available when the AC output is turned on in a recharging state (in bypass mode).

  • Page 9: Specifications

    1. Ideally, use and store the product in a place of between 20°C ~ 30°C, and always keep it away from water, intense heat, and sharp objects. For an extended product lifespan, do not store it in places of temperatures above 45°C or below -10°C.

  • Page 10: What's In The Box

    2. Whether the product can be charged or discharged depends on the actual temperature of the ba'ery pack. EcoFlow App EcoFlow App Control, monitor and customize your EcoFlow DELTA Pro from afar with the EcoFlow App. Download and see how to connect What’s in the Box What’s in the Box...

  • Page 11: Safety Instructions

    6. Do not use uno-icial components or accessories. If you need to replace any components or accessories, please visit o-icial EcoFlow channels to check relevant information. 7. When using the product, please strictly follow the operating environment temperature specified in this user manual.
  • Page 12 Please take anti-eletric shock measures before touching the product. Following this, place the product in a safe, waterproof and open area. Once complete contact EcoFlow Customer Service immediately. 17. This product is not recommended for powering medical emergency equipment related to personal safety, including but not limited to medical grade ventilators (hospital version CPAP: Continuous Positive Airway Pressure), artificial...
  • Page 13 Your retailer will accept used products and return them to an environmentally-sound recycling facility. Hereby, EcoFlow Inc. declares that the radio equipment type portable power station is in compliance with Directives 2014/53/EU, 2011/65/EU(RoHS), (EU) 2015/863(RoHS). The full text of the EU declaration of conformity is available at the following Internet address: eu: h'p://www.ecoflow.com/eu/eu-compliance...
