PA 100
User Manual /Manual de Uso
Rev 16.01.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the PA 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Work Pro PA 100

Summary of Contents for Work Pro PA 100

  • Page 1 PA 100 User Manual /Manual de Uso Rev 16.01.01...
  • Page 2 Do not use this product when in close proximity to water. Do not install this product near any direct heat source. Do not block areas of ventilation. PAGE 1 User Manual / Manual de uso PA 100...

  • Page 3: Installation Notes

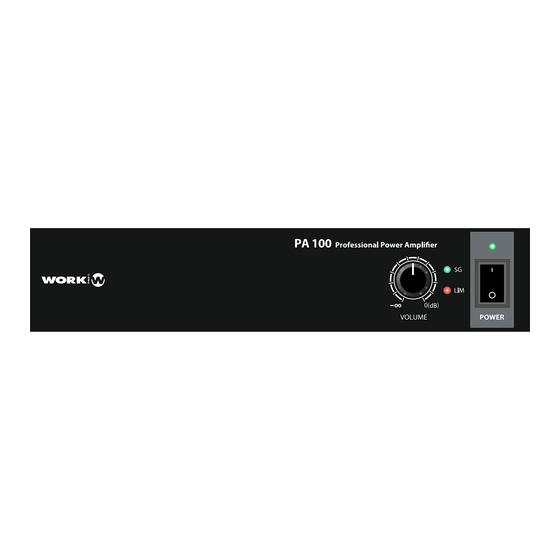

    DESCRIPTION PA 100 is an installed sound amplifier that can operate with low impedance or 70/100V line loudspeakers. The operating mode is selected through a switch in the rear side and a dipswitch block which has some terminals reserved for future improvements.

  • Page 4: Front Panel

    [VOLUME] knob to the left so the indicator light goes out. [VOLUME] knob Adjusts the volume output to the speakers. Turning to the right increases the volume. Turning all the way to the left mutes the sound. PAGE 3 User Manual / Manual de uso PA 100...

  • Page 5: Rear Panel

    ([8Ω 16Ω]). [RS485 input (RJ45 connection)] It is possible to send RS485 commands from an external device in order to control several function in PA 100. [LINE IN] RCA type stereo input jack (unbalanced. Connect external devices such as CD player, etc.
  • Page 6 Note :Take into account the maximum power loaded per channel (50W @ 8Ω) Note: In low impedance DOES NOT EXIST Bridge mode. Therefore, the usual bridge connection (using both + terminals), are used ONLY in high impedance mode. PAGE 5 User Manual / Manual de uso PA 100...
  • Page 7 No use el producto cerca del agua. descargas eléctricas. No instale este producto bajo la luz solar directa. No bloquee las salidas de ventilación. PAGE 6 User Manual / Manual de uso PA 100...

  • Page 8: Notas De Instalación

    DESCRIPCION PA 100 es un amplificador de instalación que puede funcionar tanto en baja impedancia como con altavoces de línea 70/100V. El modo de funcionamiento se selecciona mediante un switch en el panel trasero y un bloque de dipswitches, el cual dispone de algunos terminales reservados para futuras mejoras.

  • Page 9: Panel Frontal

    LED [VOLUME] Ajusta el volumen de la salida del amplificador. Girando a la derecha se incrementa el volumen, girando a la izquierda se reducir hasta conseguir "mutear" la salida. PAGE 8 User Manual / Manual de uso PA 100...

  • Page 10: Panel Trasero

    ([8Ω 16Ω]). [Entrada RS485 (conexión RJ45)] Es posible enviar comandos RS485 desde un dispositivo externo para controlar varias funciones en el PA 100. [LINE IN] Conectores de entrada estéreo RCA (salida desbalanceada). Conecte un dispositivo LINE externo como reproductores CD, etc.
  • Page 11 Nota :Tenga en cuenta que la potencia máxima cargada por canal es de (50W @ 8Ω) Nota:En baja impedancia NO EXISTE el modo Bridge. Así pues, el conexionado bridge usual (usando ambos terminales +), se usa UNICAMENTE en modo alta impedancia. PAGE 10 User Manual / Manual de uso PA 100...
