PA 60/2
User Manual
Rev 1.15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA 60/2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Work Pro PA 60/2

Summary of Contents for Work Pro PA 60/2

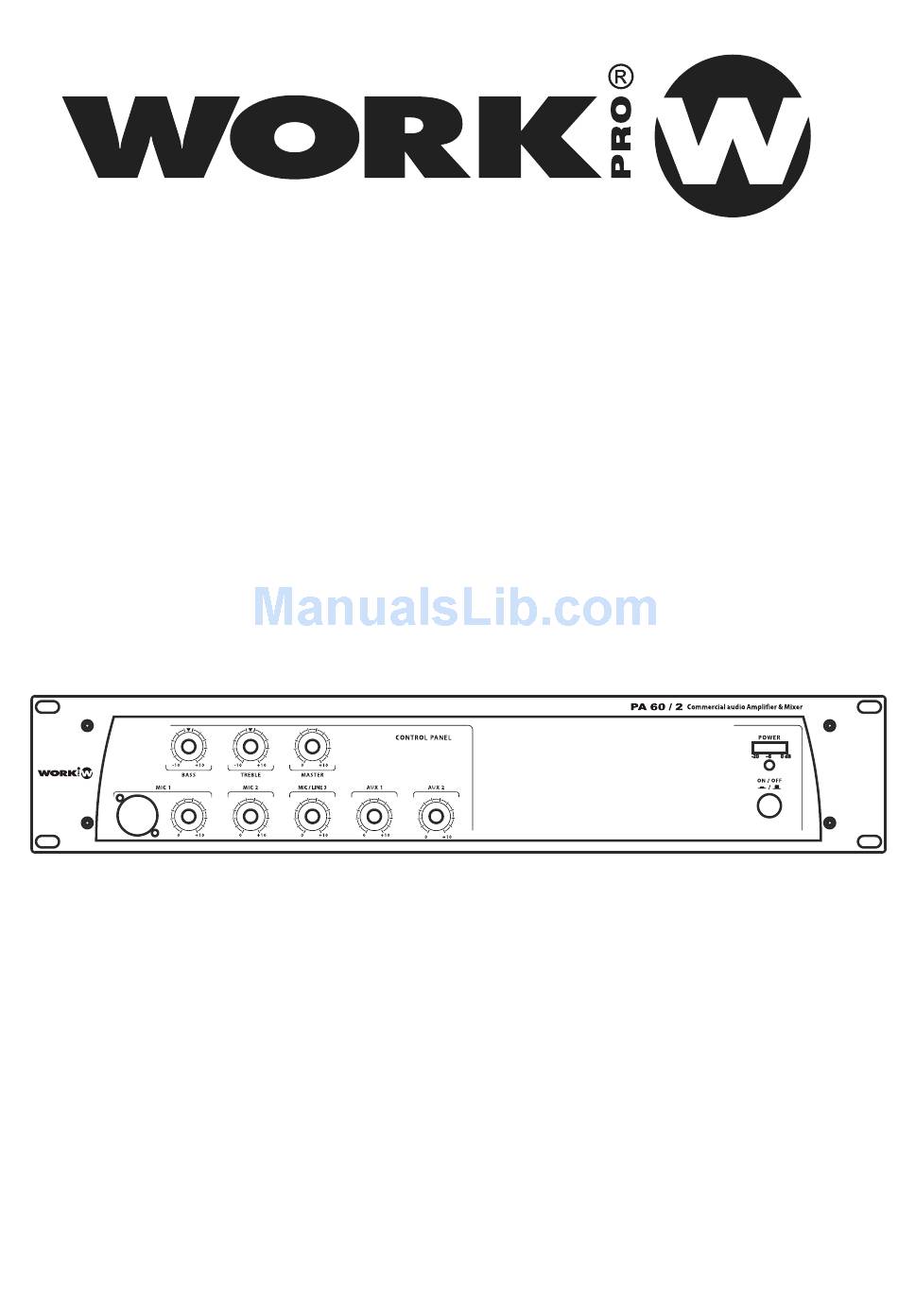

  • Page 1 PA 60/2 User Manual Rev 1.15...
  • Page 2 Do not use this product when in close proximity to water. Do not install this product near any direct heat source. Do not block areas of ventilation. PAGE 1 User Manual PA 60/2...

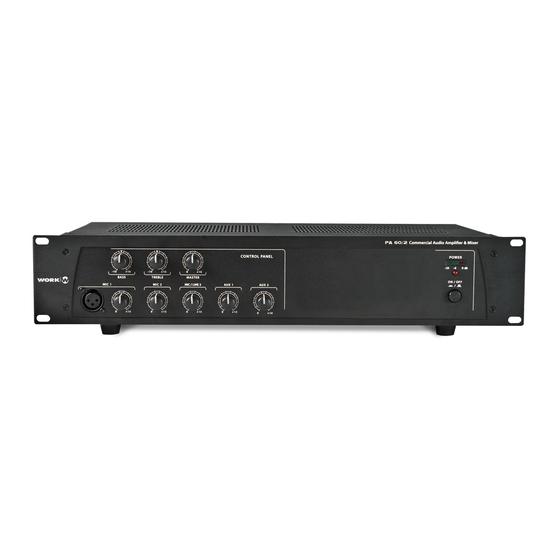

  • Page 3: Front Panel

    11. Output level indicator LED 5. AUX1 Volume Control 12. Power On / Off Indicator LED 6. AUX2 Volume Control REAR PANEL PA 60/2 50 Hz 200 W 1. Earth Connection Screw 12. AC fuse holder 13. Mains voltage (115/230V) selector switch 2.

  • Page 4: Installation Notes

    Connect the amplifier only to grounded mains outlets. Connecting the amplifler to the mains supply (115/230Vac) has to be accomplished by inserting the supplied mains cord into the corresponding socket and afterward plugging it into a mains outlet. 260 mm 483 mm PAGE 3 User Manual PA 60/2...
  • Page 5 S 102 Microphone Priority PA 60/2 has a priority override system. MIC 1 has the highest priority (apart from TEL/EMER) It has priority over the rest of inputs (MIC 2, INPUT 3, AUX 1, AUX 2). To activate the priority state, pins 2 & 4 on the DIN 5P connector need to be shorted.
  • Page 6 Aux Connection PA 60/2 provides two auxiliary inputs (18) & (19) which may be used for connecting other signal sources such as a Radio Tuner, CD or Cassette player (LINE level). Turn the front potentiometers (5) & (6) clockwise to increase the volume or anticlockwise to reduce the volume.
  • Page 7 The volume can be set by the tel. paging volume control (21). The terminals allow connection of a telephone/paging system interface. NOTE: The Telephone/Emergency input has the highest priority; all other units will be overriden. PAGE 6 User Manual PA 60/2...

  • Page 8: Technical Specifications

    Two tone chime(‘ Ding-dong’ pre-announcement chime) Priority Tel./Emer. -MIC1 Main Supply AC power 115 /230 V - 50/60Hz Main Supply DC power 24 V - 4A Consumption 200 W Dimensions 483x88x260mm(WxHxD) Weight 8 kg PAGE 7 User Manual PA 60/2...
  • Page 9 No use el producto cerca del agua. descargas eléctricas. No instale este producto bajo la luz solar directa. No bloquee las salidas de ventilación. PAGE 8 User Manual PA 60/2...

  • Page 10: Panel Frontal

    11. Indicador LED de nivel de salida 5. Control de volumen AUX1 12. Indicador LED de encendido/apagado 6. Control de volumen AUX2 PANEL TRASERO PA 60/2 50 Hz 200 W 1. Tornillos conexión a tierra 12. Portafusible AC 13. Selector alimentación (115/230V) 2.

  • Page 11: Notas De Instalación

    (115/230Vac) tiene que llevarse a cabo mediante la inserción del cable de alimentación suministrado en la toma correspondiente y luego conectarlo a una toma de corriente. 260 mm 483 mm PAGE 10 User Manual PA 60/2...
  • Page 12 S 102 Micrófono de prioridad PA 60/2 tiene un sistema de prioridad. MIC 1 tiene la prioridad más alta (aparte de TEL / EMER) Tiene prioridad sobre el resto de las entradas (MIC 2, INPUT 3, AUX 1, AUX 2).
  • Page 13 Conexión Aux PA 60/2 proporciona dos entradas auxiliares (18) y (19) que se pueden usar para la conexión de otras fuentes de señal tales como un sintonizador de radio, reproductor de CD o Cassette (nivel de línea). Gire los potenciómetros frontales (5) y (6) en sentido horario para aumentar el volumen o hacia la izquierda para reducirlo.
  • Page 14 El volumen puede ser ajustado por el controlo tel. paging (21). Los terminales permiten la conexión de una interfaz de sistema de teléfono / paginación. NOTA: La entrada Tel. /Emer. tiene la más alta prioridad, todas las demás entradas se anularán. PAGE 13 User Manual PA 60/2...

  • Page 15: Especificaciones Tecnicas

    Alimentación principal AC 115 /230 V - 50/60 Hz Alimentación DC 24 V - 4 A Consumo 200 W Dimensiones 483 x 88 x 260 mm ( An x Al x Pr) Peso 8 kg PAGE 14 User Manual PA 60/2...
  • Page 16 This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical an electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
