2.13 Power Terminals (CON1, 5, 7, 8, 10, 19, 20, 21, 22)
The high-power connections for the DC Bus and phase connections utilize a 6-32 screw terminal. These
terminals may be connected to the power supply, load, or motor using a ring terminal with appropriately
rated wire for the current and voltage at which the system will be operated. Additionally, these terminals
act as the interface to accessory boards including the buck/boost filter board, allowing a direct connection
between the motherboard and accessory boards without wiring.
PRD-08611 REV. 1, June 2024
© 2024 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and SpeedVal™ and
the Wolfspeed logo are trademarks of Wolfspeed, Inc. Other trademarks, product and company names are the property of their
respective owners and do not imply specific product and/or vendor endorsement, sponsorship or association.

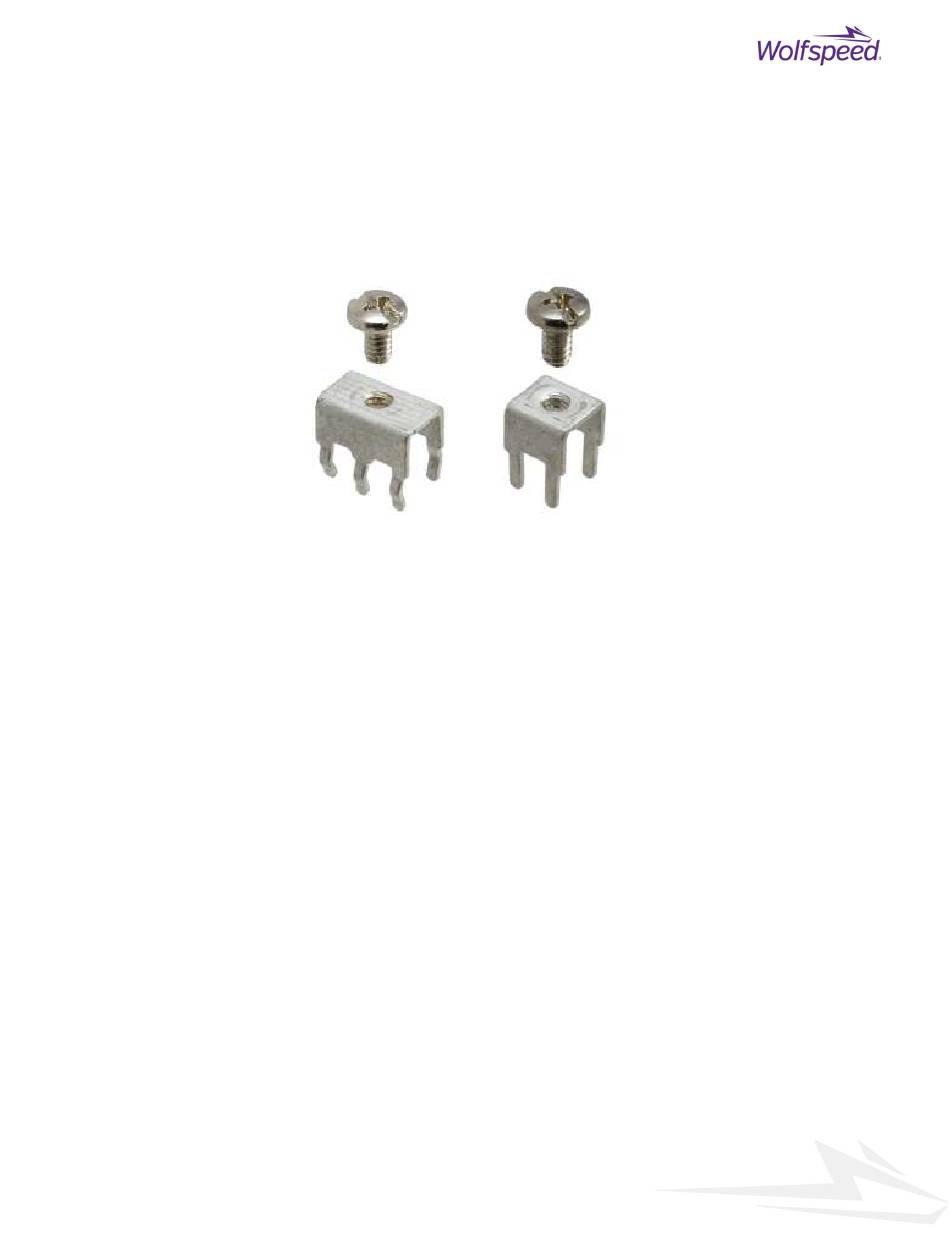

Figure 14: High-power screw terminal connections
