Item Description
1
Gate Driver Interface Connector
2
High-Side V
GS
3
Low-Side V
GS
4
NTC Temperature Sensor Connector
Gate Driver Standoffs
There are two sets of holes in the motherboard for each gate driver daughter card. One set of these holes
will line up with the selected gate driver. Included in the motherboard kit are an 8-32 screw, nut, standoff,
and washer. The washer should be placed between the standoff and the motherboard to provide the correct
overall height for the gate driver to mount.
PRD-08611 REV. 1, June 2024
© 2024 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and SpeedVal™ and
the Wolfspeed logo are trademarks of Wolfspeed, Inc. Other trademarks, product and company names are the property of their
respective owners and do not imply specific product and/or vendor endorsement, sponsorship or association.

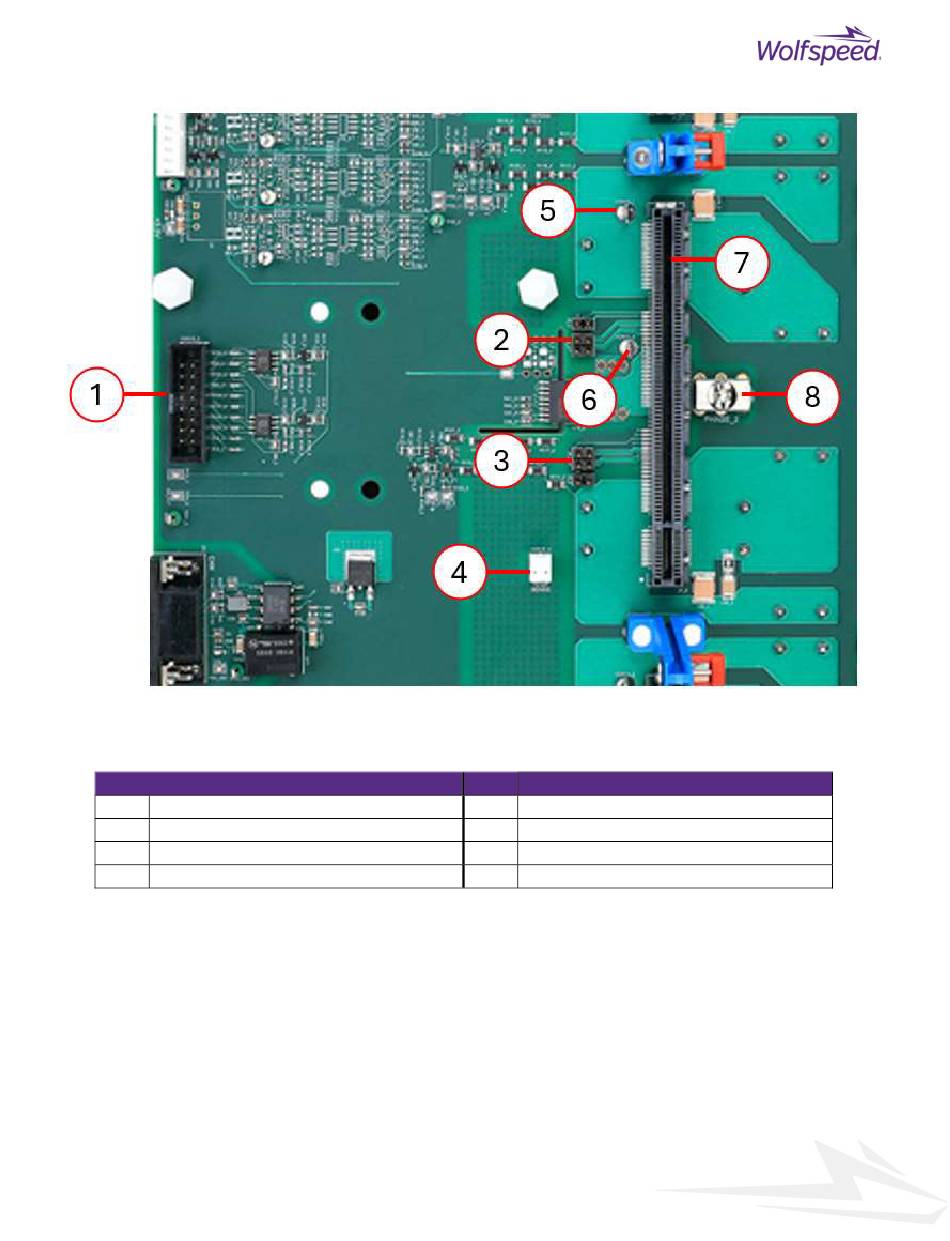

Figure 5: SpeedVal™ Kit phase detail
Table 3: Motherboard list of connections for Figure 5
and Miller Clamp
and Miller Clamp
MOD-MB-3P-0900V-40A SpeedVal™ Kit Three-Phase Motherboard User Guide
Item Description
5
High-Side Drain Sense Tab
6
Low-Side Drain Sense Tab
7
Power Daughter Card Connector
8
Switch Node Power Terminal
