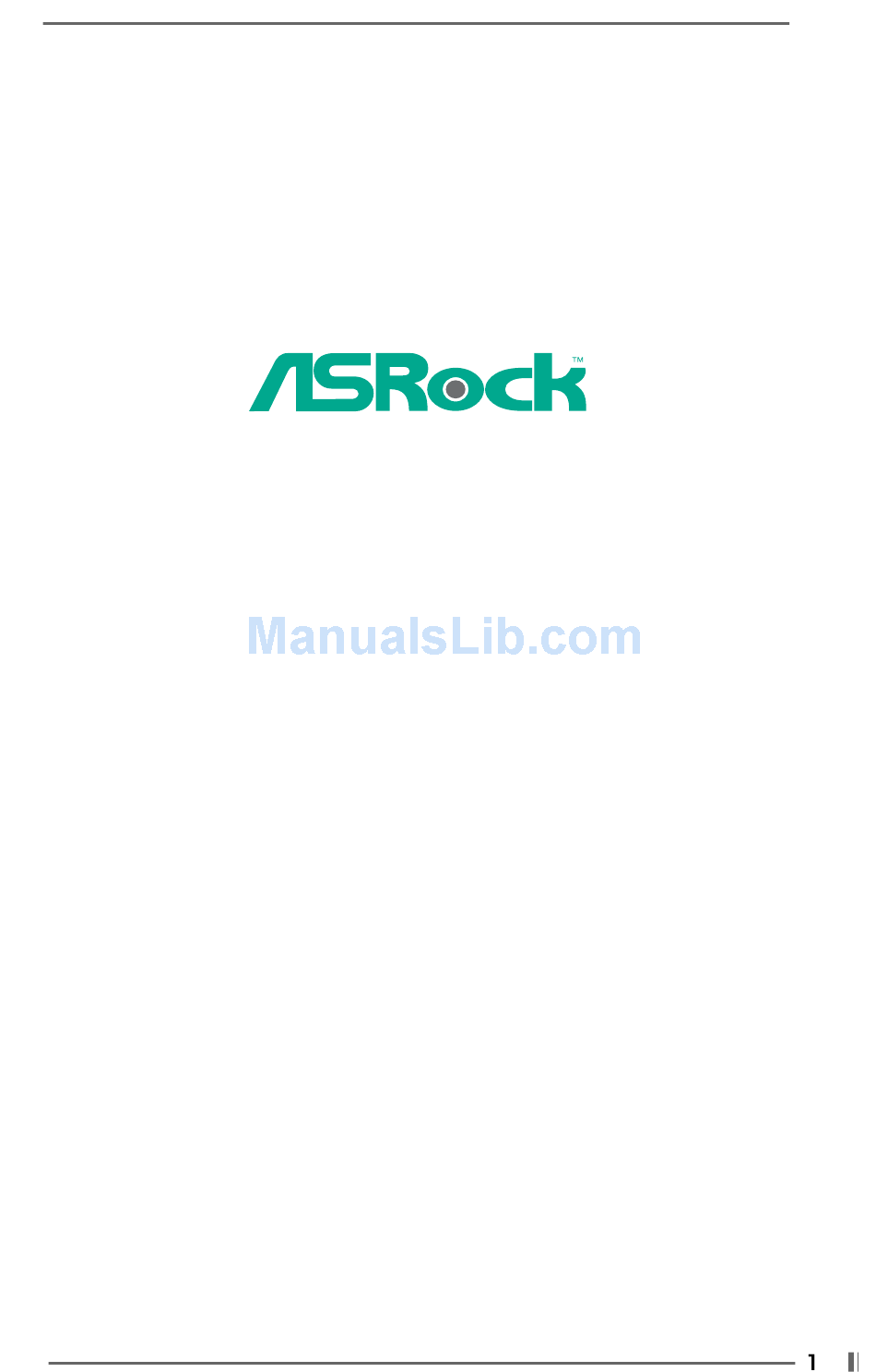

P4i65PE-M

User Manual

Version 1.0
Published November 2004
Copyright©2004 ASRock INC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4I65PE-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK P4I65PE-M

Summary of Contents for ASROCK P4I65PE-M

  • Page 1: User Manual

    P4i65PE-M User Manual Version 1.0 Published November 2004 Copyright©2004 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the manual or product.

  • Page 3: Table Of Contents

    ............... 9 2 Installation ............10 Pre-installation Precautions............10 2.1 CPU Installation..............11 2.2 Installation of CPU Fan and Heatsink ........11 2.3 Installation of Memory Modules (DIMM)....... 12 2.4 Expansion Slots (PCI and AGP Slots)........13 2.5 Jumpers Setup..............14 2.6 Onboard Headers and Connectors ........
  • Page 4 4 Software Support ........... 34 4.1 Install Operating System ..........34 4.2 Support CD Information ..........34 4.2.1 Running Support CD ..........34 4.2.2 Drivers Menu ............34 4.2.3 Utilities Menu ............34 4.2.4 Contact Information ..........34...

  • Page 5: Introduction

    ASRock’s commitment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by- step guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to BIOS setup and information of the Support CD.

  • Page 6: Specifications

    1.2 Specifications Platform: Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm ® ® ® CPU: Socket 478, supports Intel Pentium 4 / Celeron (Prescott, Northwood, Willamatte) processor Chipsets: North Bridge: Intel ® 865PE chipset, FSB @ 800 / 533 / 400MHz,...
  • Page 7 To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard! It may cause permanent damage! ®...

  • Page 8: Motherboard Layout

    CPU Fan Connector (CPU_FAN1) Infrared Module Header (IR1) CPU Heatsink Retention Module Floppy Connector (FLOPPY1) 184-pin DDR DIMM Slots (DDR1- 2) Game Port Connector (GAME1) Secondary IDE Connector (IDE2, Black) Internal Audio Connector: AUX1 (White) Primary IDE Connector (IDE1, Blue)

  • Page 9: Asrock I/O Plus

    1.4 ASRock I/O Plus Parallel Port USB 2.0 Ports (USB01) RJ-45 Port USB 2.0 Ports (USB23) Line In (Light Blue) Serial Port: COM1 Line Out (Lime) PS/2 Keyboard Port (Purple) Microphone (Pink) PS/2 Mouse Port (Green) Shared USB 2.0 Ports (USB45)

  • Page 10: Installation

    Chapter 2 Installation P4i65PE-M is a Micro ATX form factor (9.6-in x 7.8-in, 24.4 cm x 19.8 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to en- sure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard com- ponents or change any motherboard settings.

  • Page 11: Cpu Installation

    CPU into the socket to avoid bending of the pins. Step 4. When the CPU is in place, press it firmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked.

  • Page 12: Installation Of Memory Modules (Dimm)

    DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. notch break...

  • Page 13: Expansion Slots (Pci And Agp Slots)

    2.4 Expansion Slots (PCI and AGP Slots) There are 3 PCI slots and 1 AGP slot on P4i65PE-M motherboard. PCI slots: The PCI slots are used to install expansion cards that have the 32-bit PCI interface. AGP slot: The AGP slot is used to install a graphics card. The ASRock AGP slot has a special locking mechanism which can securely fasten the graph- ics card inserted.

  • Page 14: Jumpers Setup

    Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power supply. (see p.8 No. 24) (see p.8 No. 24) Note: If the jumpers JL1 and JR1 are short, both the front panel and the rear panel audio connectors can work. Clear CMOS (CLRCMOS0, 2-pin jumper) 2-pin jumper (see p.8 No.

  • Page 15: Onboard Headers And Connectors

    FLOPPY1 Pin1 (see p.8 No. 20) the red-striped side to Pin1 Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the connector. Primary IDE connector (Blue) Secondary IDE connector (Black) (39-pin IDE1, see p.8 No. 8) (39-pin IDE2, see p.8 No.
  • Page 16 USB 2.0 Header ASRock I/O Plus accommo- USB_PWR dates 6 default USB 2.0 ports. If (9-pin USB67) DUMMY those USB 2.0 ports on the I/O (see p.8 No. 12) panel are not sufficient, this USB 2.0 header is available to...
  • Page 17 Please connect a CPU fan cable to this connector and match (3-pin CPU_FAN1) +12V CPU_FAN_SPEED the black wire to the ground pin. (see p.8 No. 4) ATX Power Connector Please connect an ATX power supply to this connector. (20-pin ATXPWR1) (see p.8 No.

  • Page 18: Serial Ata (Sata) Hard Disks Installation

    STEP 3: Connect one end of the SATA data cable to the motherboard’s primary SATA connector (SATA1). STEP 4: Connect the other end of the SATA data cable to the primary SATA hard disk. If you just want to install only one SATA HDD, the installation process is complete at this step.

  • Page 19: Bios Setup Utility

    Power-On-Self-Test (POST) to enter the BIOS SETUP UTILITY, otherwise, POST will continue with its test routines. If you wish to enter the BIOS SETUP UTILITY after POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis.

  • Page 20: Navigation Keys

    To save changes and exit the BIOS SETUP UTILITY <ESC> To jump to the Exit Screen or exit the current screen Main Screen When you enter the BIOS SETUP UTILITY, the Main screen will appear and display the system overview BIOS SETUP UTILITY Advanced...

  • Page 21: Cpu Configuration

    This item should always be [Auto] for better system stability. Ratio Status This is a read-only item, which displays whether the ratio status of this motherboard is “Locked” or “Unlocked”. If it shows “Unlocked”, you will find an item Ratio CMOS Setting appears to allow you changing the ratio value...

  • Page 22: Chipset Configuration

    If it shows “Locked”, then the item Ratio CMOS Set- ting will be hidden. If you use the ratio value to time the CPU frequency, it will be equal to the core speed of the installed processor.
  • Page 23 DRAM Burst Length DRAM Burst length can be set as [8] or [4]. Memory Hole The default value of this item is [Disabled], or you may set the value of this item as [15MB-16MB]. Init. Graphic Adapter Priority This allows you to select [PCI/AGP] and [AGP/PCI] as the initial graphics adapter priority.

  • Page 24: Acpi Configuration

    Use this item to enable or disable Ring-In signals to turn on the system from the power-soft-off mode. PCI Devices Power On Use this item to enable or disable PCI devices to turn on the system from the power-soft-off mode. PS/2 Keyboard Power On Use this item to enable or disable PS/2 keyboard to turn on the system from the power-soft-off mode.

  • Page 25: Ide Configuration

    When [Compatible Mode] is selected Combined Mode Option It allows you to select between [Pri IDE + SATA] and [SATA + Sec IDE]. If it is set to [Pri IDE + SATA], then the secondary IDE will not work. Likewise, if it is set to [SATA + Sec IDE], then the primary IDE will not work.

  • Page 26: Ide Device Configuration

    [ARMD]: This is used for IDE ARMD (ATAPI Removable Media Device), such as MO. LBA/Large Mode Use this item to select the LBA/Large mode for a hard disk > 512 MB under DOS and Windows; for Netware and UNIX user, select [Disabled] to disable the LBA/Large mode.

  • Page 27: Pcipnp Configuration

    Block (Multi-Sector Transfer) The default value of this item is [Auto]. If this feature is enabled, it will enhance hard disk performance by reading or writing more data during each transfer. PIO Mode Use this item to set the PIO mode to enhance hard disk performance by optimizing the hard disk timing.

  • Page 28: Floppy Configuration

    Use this item to enable or disable floppy drive controller. Serial Port Address Use this item to set the address for the onboard serial port or disable it. Configuration options: [Disabled], [3F8 / IRQ4], [2F8 / IRQ3], [3E8 / IRQ4], [2E8 / IRQ3].
  • Page 29 Parallel Port Address Use this item to set the address for the onboard parallel port or disable it. Configuration options: [Disabled], [378], and [278]. Parallel Port Mode Use this item to set the operation mode of the parallel port. The default value is [ECP+EPP].

  • Page 30: Usb Configuration

    “Auto” option will disable the legacy USB support. 3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 31: Boot Screen

    3.5 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. 3.5.1 Boot Settings Configuration BIOS SETUP UTILITY Boot Boot Settings Configuration To enable or disable the boot from network feature.

  • Page 32: Boot Device Priority

    CD/DVD drives. 3.6 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. BIOS SETUP UTILITY...

  • Page 33: Exit Screen

    BIOS SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Dis- card changes and exit setup?” Select [OK] to exit the BIOS SETUP UTILITY without saving any changes. Discard Changes When you select this option, it will pop-out the following message, “Dis-...

  • Page 34: Software Support

    This motherboard supports various Microsoft Windows operating systems: 98 SE / ME / 2000 / XP. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer to your OS documentation for more information.
