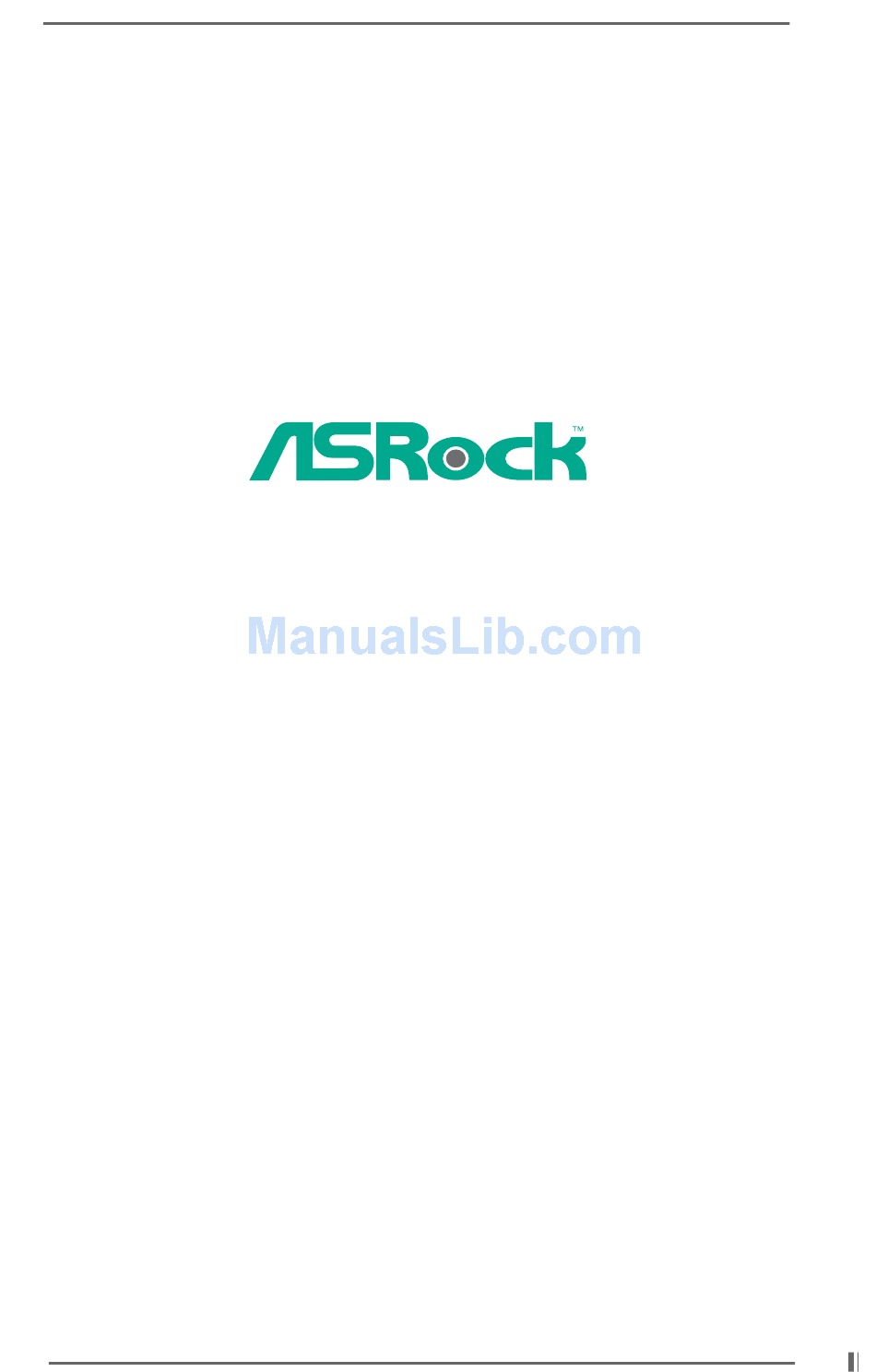

P4I45D
User Manual
Published October 2002
Copyright©2002 ASRock INC. All rights reserved.
1 1 1 1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4I45D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK P4I45D

Summary of Contents for ASROCK P4I45D

  • Page 1 P4I45D User Manual Published October 2002 Copyright©2002 ASRock INC. All rights reserved. 1 1 1 1 1...
  • Page 2 In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the manual or product.

  • Page 3: Table Of Contents

    3.1 BIOS Setup Utility ............14 3.1.1 BIOS Menu Bar ............14 3.1.2 Legend Bar ............. 14 3.2 Main Menu ..............15 3.3 Advanced, Security, Power, Boot, and Exit Menus ..17 4 Software Support 4 Software Support 4 Software Support ...........

  • Page 4: Introduction

    ASRock’s commitment to quality and endurance. Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by- step installation guide for new DIY system builders. Chapter 3 and 4 contain basic BIOS setup and Support CD information.
  • Page 5 CPU and the heatsink when you install the PC system. 2. PCI 5 supports PCI slave mode only. [ DO NOT use the slot PCI 5 if there is USB device working on any of the USB 2.0 ports : USB 0,1 (see page 7, item 8) and USB 4,5 (see page 6, item 13).

  • Page 6: Motherboard Layout

    Speaker connector (SPEAKER1) CPU fan connector (CPU_FAN1) South Bridge controller North Bridge controller CLRCMOS1 184-pin DDR DIMM slots (DDR1, DDR2, blue) PCI slots 168-pin SDRAM DIMM slots (SDR1, SDR2, black) Audio CODEC Primary IDE connector (IDE1, blue) Front panel audio connector (AUDIO1)

  • Page 7: Asrock I/O

    1.4 ASRock I/O 1.4 ASRock I/O 1.4 ASRock I/O 1.4 ASRock I/O 1.4 ASRock I/O Parallel port USB 1.1 ports (USB 2,3) RJ-45 port USB 2.0 ports (USB 0,1) Game port Serial port (COM1) Microphone (Pink) PS/2 keyboard port (Purple)

  • Page 8: Installation

    Chapter 2 Installation Chapter 2 Installation Chapter 2 Installation P4I45D is an ATX form factor (12" x 9.6", 30.5 x 24.4 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

  • Page 9: Installation Of Heatsink And Cpu Fan

    Step 4. When the CPU is in place, press it firmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked. Step 1...

  • Page 10: Expansion Slots

    Step 3. Firmly insert the DIMM into the slot until the retaining clip snap back in place and the DIMM is properly seated. 2.6 Expansion Slots (PCI and AGP Slots) 2.6 Expansion Slots (PCI and AGP Slots) 2.6 Expansion Slots (PCI and AGP Slots) 2.6 Expansion Slots (PCI and AGP Slots)

  • Page 11: Jumpers Setup

    +5VSB (standby) and enable PS/2 or USB wake up +5VSB (Default) events. Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power supply. CLRCMOS1 Disconnect the power cord, (see p.6 item 17) then short the solder points...
  • Page 12 Note: To optimize compatibility and performance, please connect your hard disk drive to the primary IDE connector (IDE1, blue) and CD-ROM to the secondary IDE connector (IDE2, black). USB2.0 header ASRock I/O on P4I45D mother- USB_PWR (9-pin USB45) board provides you 2 default DUMMY (see p.6 item 13)
  • Page 13 CPU fan connector Connect the fan cable to the +12V (3-pin CPU_FAN1) connector matching the black CPU_FAN_SPEED (see p.6 item 3) wire to the ground pin. ATX power connector Connect an ATX power (20-pin ATXPWR1) supply to the connector. (see p.6 item 1)

  • Page 14: Bios Setup

    BIOS FWH chip on the motherboard stores the BIOS Setup Utility. When you start up the computer, there is a chance for you to run the BIOS Setup. Press <F2> during the Power-On-Self-Test (POST) to enter the BIOS Setup Utility, otherwise, POST continues with its test routines.

  • Page 15: Main Menu

    Enter:Select Sub-Menu System Date [Month/Day/Year] Set the system date that you specify. Valid values for month, day, and year are Month: (Jan to Dec), Day: (1 to 31), Year: (up to 2099). Use keys to move between the Month, Day and Year fields.
  • Page 16 If the auto- detection fails, it may due to that the hard disk is too old or too new. If the hard disk was already formatted on an older system, the BIOS Setup may detect incorrect parameters.

  • Page 17: Advanced, Security, Power, Boot, And Exit Menus

    LBA Mode This allows user to select the LBA mode for a hard disk > 512 MB under DOS and Windows; for Netware and UNIX user, select [Off] to disable the LBA mode.

  • Page 18: Installing Operating System

    4.2.1 Running The Support CD 4.2.1 Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN” is enabled in your computer. If the Main Menu did not appear automatically, locate and double click on the file ASSETUP.EXE from the BIN folder in the Support CD to display the menus.

  • Page 19: Advanced Menu

    Wrong setup may cause problems during operation. CPU Ratio Selection: Use this to set the multiple that times the frontside bus frequency must equal to the core speed of the installed processor. SDRAM Frequency: If [Auto] is selected, the motherboard detects the memory module(s) inserted and automatically assigns appropriate frequency.
  • Page 20 OnBoard Serial Port: Use this to set addresses for the onboard serial ports or disable serial ports. Configuration options: [Auto], [Disabled], [3F8 / IRQ4 / COM1], [2F8 / IRQ3 / COM2], [3E8 / IRQ4 / COM3], [2E8 / IRQ3 / COM4]. OnBoard Infrared Port: This allows you to enable or disable the onboard infrared port feature.

  • Page 21: Security Menu

    Set User Password: Press <Enter> to set User Password. Valid password can be a 1 to 6 alphanumeric characters combination. If you already have a password, you must enter your current password first in order to create a new password.

  • Page 22: Power Menu

    Ring-In Power On: Use this to enable or disable Ring-in signals to turn on the system from the power-soft-off mode. PME# Power On: Use this to enable or disable PCI PME# to turn on the system from the power-soft-off mode.

  • Page 23: Boot Menu

    4. Boot Setup Menu 4. Boot Setup Menu 4. Boot Setup Menu Quick Boot Mode: This mode speeds up the boot-up routine by skipping memory retestings. Boot-time Diagnostic Screen: This screen shows CPU and hardware information during Power-On-Self-Test (POST) routine. If this screen is disabled, only ASRock logo is shown during the boot up process.
  • Page 24 Exit Saving Changes: After you enter the sub-menu, the message “Save current settings and exit” will appear. If you press <ENTER>, it will save the current settings and exit the BIOS SETUP Utility. Exit Discarding Changes: After you enter the submenu, the message “Quit without saving changes”...
