Owner's Manual

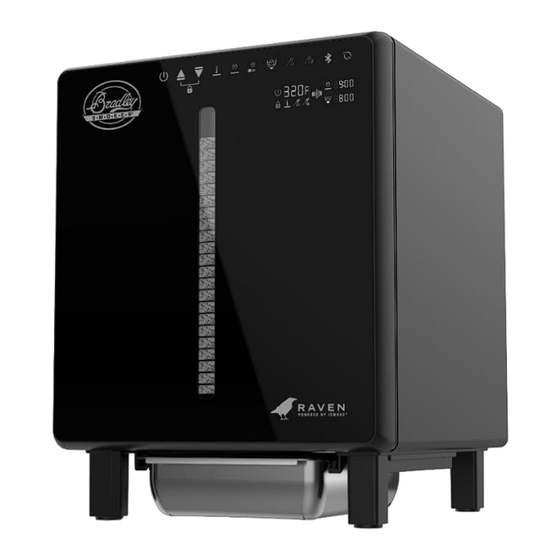

Raven Smoker
Bluetooth Version
110 ~ 120V – MODEL: BS1120BT
220 ~ 240V – MODEL: BS1120BTCE
Bradley Smoker Inc.
1-866-508-7514
support@bradleysmoker.com
www.bradleysmoker.com
Printed in China/ Imprimé en Chine/ Impreso en China/ Gedruckt in
China
May 2024/ Mai 2024/ Mayo 2024/ Kann 2024
V 3.0
┃
1
Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley Smoker iSmoke BS1120BT
Summary of Contents for Bradley Smoker iSmoke BS1120BT
- Page 1 Owner’s Manual Raven Smoker Bluetooth Version 110 ~ 120V – MODEL: BS1120BT 220 ~ 240V – MODEL: BS1120BTCE Bradley Smoker Inc. 1-866-508-7514 support@bradleysmoker.com www.bradleysmoker.com Printed in China/ Imprimé en Chine/ Impreso en China/ Gedruckt in China May 2024/ Mai 2024/ Mayo 2024/ Kann 2024 V 3.0...
- Page 2 Bradley Smoker Apps Name: Bradley Smoker iSmoke™ ┃ Page...
- Page 3 (with the addition of ice) while consistently delivering superior results using minimal effort. The Bradley Smoker™ is unique in that it produces smoke which is four times cleaner than traditional burn-box chips* or wood pellets. It automatically extinguishes the spent Bisquettes®...
-
Page 4: Table Of Contents
General Maintenance Page External Components Page Cabinet Internal Components Page Assembly Instructions Page Seasoning Your Smoker Page Optimum Use Of Your Bradley Smoker ™ Page Touch Indicators Explained Page Display Panel Referenced Page Display Operation Explained Page 16 - 22... -
Page 5: Safety
IMPORTANT SAFEGUARDS When using electrical appliances, basic Safety precautions should always be followed including the following: • Read all instructions. • Carefully read through assembly instructions to prepare the smoker for use. • Do not modify your smoker from its original state. Modifying the appliance will nullify the warranty. - Page 6 IMPORTANT SAFEGUARDS CONTINUE: • Outdoor extension cords should be used with outdoor use products and are surface marked with the suffix letter “W” and with a tag stating, “Suitable for use with outdoor appliances”. • CAUTION: risk of electric shock. Keep the extension cord connection dry and off the ground.
- Page 7 HOUSEHOLD USE ONLY/ OUTDOOR USE ONLY. DO NOT OPERATE IN AN ENCLOSED AREA Carbon Monoxide Hazard Warning • The use or combustion of Bradley Flavored Bisquettes® in this product could expose users to chemicals such as carbon monoxide. Unventilated use will increase the risk of serious health issues, up to and including death.
-
Page 8: General Maintenance
Refer to the External Components List & Internal Components List Diagrams on Pages 9-10 Important Safety Precautions • Use precautions during user maintenance. • The Bradley Smoker™ must be maintained and cleaned after each use. • Unplug the Long Power Cord from the wall outlet before starting any maintenance or cleaning. -
Page 9: External Components
EXTERNAL COMPONENTS Smoker cabinet Power Switch Front door Feet Display panel. Door adjustment holes On/OFF switch Power receptacle Power cord Chimney vent damper. Fuse holder. Fuse holder tab. ┃ Page... -
Page 10: Cabinet Internal Components
CABINET INTERNAL COMPONENTS Door seal. Drip tray. Water/renderings tray. Heating element (2 included). Grill rack (4 included). Shelving for grill rack. Feeder tube. Temperature high limit. Internal temperature sensor. Meat probe 1. Meat probe 2. Smoke generator cover. Smoke Generator. Door switch. -
Page 11: Assembly Instructions
ASSEMBLY INSTRUCTIONS How to assemble your 4 Rack Bradley BS1120BT (CE) Bradley Raven smoker • Remove the smoker from the box. • Take all packaged parts out of the smoker. • Remove all protective packaging materials from parts. • Set the smoker on a firm base, stand, or on a table. •... -
Page 12: Seasoning Your Smoker
Seasoning the Bradley Smoker™ is an ongoing process, the more you use your smoker, the better tasting your foods will be. Seasoning is mainly to remove the impartial smells from your smoker. The smell of your new Bradley Smoker™ is not necessarily how you want your food to taste. -
Page 13: Optimum Use Of Your Bradley Smoker
OPTIMUM USE OF YOUR BRADLEY SMOKER™ Bradley Smoker™ is specifically designed to cook food at a low and slow temperature. By using this method, you will end up with a better taste and aroma. So, take your time to plan your cooking process, and let the Bradley Electric Grill/Smoker work its magic to create a mouth- watering smoked dish. -
Page 14: Touch Indicators Explained
TOUCH INDICATORS EXPLAINED Up and Down Adjustment Power Switch Switch and Child Lock Cook Temperature Cook Timer Switch Switch ® Bisquettes Smoker Timer Switch Advance Timer Switch Meat Probe 1 Meat Probe 2 Temperature Alert Temperature Alert Switch Switch F / C Unit Exchange Bluetooth Switch Switch ┃... -
Page 15: Display Panel Referenced
DISPLAY PANEL REFERENCED POWER When power has been turned on this icon will be lit. TEMPERATURE Displays cabinet and meat probe temperature. BLUETOOTH When Bluetooth is turned on this icon will be lit. SIGNAL When Bluetooth is connected this icon will be lit. COOK TIMER Cook time icon. -
Page 16: Display Operation Explained
DISPLAY OPERATIONS EXPLAINED Powering On / OFF the Unit Press the POWER Switch to turn ON / OFF the smoke. When powering the smoker ON, the sound will beep once, and the power indication light will turn red. The entire display panel will turn on for self-check. - Page 17 Continued from page 13 Notes: Only one smart device can be connected to the smoker at a time. When the main power switch (7) page 8, has been turned off, the smart device ID will be erased from the smoker memory. A new pairing connection must be initiated when powering the unit back ON again.
- Page 18 Cook Timer Parameter Settings Press the Cook Timer switch. The cook timer icon light turns On and timer digits will be flashing. Flashing digits on the display will show the default timer of 05:00 or the previously set timer value. Press the up and down switch to adjust the cook timer.
- Page 19 ® Bisquettes Advancement and Smoke Timer Settings ® Bisquettes advancing timer can be selected at 20, 30, or 40-minute intervals. First, you have to select the interval increment and then set the total smoking time. ® Press the Bisquettes Advance Timer switch and then press to select the timing of 20, 30, or 40 min.
- Page 20 Meat Probe 1 and 2 Temperature Alert Settings Press the Meat Probe Temperature alert switch. The Meat Probe icon light and temperature digits will be flashing. The display will show the default temperature of 50°C or previously set temperature value. Press the Meat Probe Temperature alert switch once.
- Page 21 Temperature Unit Exchange Settings Press the Temperature Unit Exchange Switch to change from C to F. Activating The Child Lock Press both the up and down switch at the same time to enable or disable the Child Lock. When the smoker is turned on from the power indicator and there is no operation detected on the control panel after 5 minutes, the child lock will automatically be activated.
-
Page 22: Before You Call
Bradley Smoker™ needs service. We are ready to assist you. Please retain your original receipt or invoice for warranty validation if service is needed. -
Page 23: Troubleshooting
TROUBLESHOOTING-------ERROR CODES To better help you with troubleshooting, your smoker has a built-in messaging system displaying the probable cause of error codes. Alarm on Cancel Error Code Conditions Message smoker Alarm displayed 1. When the system detects no Heating Buzzer sounds, current drawn by the element Press Element... - Page 24 Press any key to reset the error code and alarm sound. Only an authorized technician may work on electrical repairs on this appliance. Bradley Smoker Inc. accepts no responsibility for any malfunction or damage which is caused by unsuitable electrical repairs.
-
Page 25: Electrical Specifications
ELECTRICAL SPECIFICATIONS North America Europe, GS, CE, and CB Model: BS1120BT BS1120BTCE Rated Voltage 110 ~ 120V 220 ~ 240V Rated Frequency 50 / 60 Hz Rated Power ~1005-1200W ~1005-1200W Cooking heating element 1000W (2pcs x 500W) ® Bisquettes burner 100-300W 100-300W CAPACITIES... -
Page 26: Warning
Warning! Warning: Changes or modifications to this unit, not expressly approved by the party responsible for compliance, could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 27: Warranty
This limited warranty is non-transferable and is valid only in the country of purchase. • The warranty for Bradley Smoker Inc. is limited to repairing or replacing parts that are deemed defective by the company. If any component is found to be defective, Bradley Smoker Inc.
