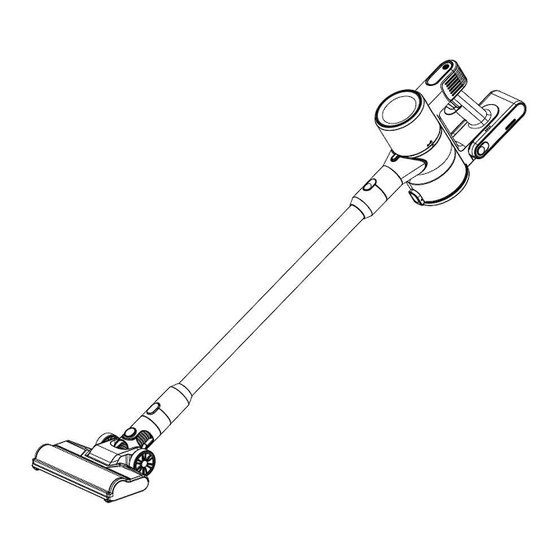

- Page 1 IN231100221V01_UK 852-020V70 VC-6003 Manual for handheld vacuum AC 100V-240V 50/60Hz IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
-
Page 2: Safety Instructions
Safety instructions To avoid electric shocks, fires and other injuries caused by improper use, read this entire manual carefully. ● Under guided supervision, children aged eight years and above can use this appliance, provided they understand the potential risks and hazards. Under guided supervision, persons with disabilities or persons without experience can use this appliance, provided they understand the potential risks and hazards. -
Page 3: Product Presentation
Product presentation List of accessories Power adapter Long flat suction Two-in-one flat suction Electric floor brush Host mount with screw * 3 * 3, expansion pipe Extension tube... - Page 4 Product presentation Host component description Display indicates the following: - Battery status with charge and discharge percentage. - Alarm for the main motor plug. - Alarm for a jam in the ground brush motor. Toggle between high and low Stainless steel filter and HEPA filter Air outlet Dust bucket...
- Page 5 Install Mounting the host 1. The host mounting base is optional. You can decide whether to install it based on your specific needs. 2. For installation, choose a cool and dry location with a nearby power supply. Avoid placing the support in areas prone to humidity, like the kitchen, or direct sunlight. 3.
- Page 6 5. Only use the power supply included with the device.(CZH013270050EUWP) 6. Only use the battery pack provided with this appliance. (Model: VC-6003) 7. To remove the battery pack, press down on the battery pack release button, then slide the battery pack to the right, following the illustration.
- Page 7 1. Two-in-one brush: Suitable for beds, sofas and other cloth materials, particularly for removing dust. 2. Flat brush: Suitable for cleaning narrow gaps, tight spaces and hard-to-reach areas like crevices, door and window corners, stairs and other confined spaces. 3. Fuzzy rolling brush: Suitable for cleaning floors, tiles, marble floors and other hard surfaces.
-
Page 8: Care And Maintenance
Care and maintenance Pay attention to product maintenance 1. Make sure you are using original parts,, otherwise, you may void your warranty. 2. If the brush intermittently stops after a few working cycles due to the filter components becoming clogged, clean the filter components, starting with the first level. - Page 9 Care and maintenance Cleaning the cyclone system and HEPA filter components 1. Press the button in the direction shown, turn the dust cup assembly to unlock, and then take out the dust cup filter assembly. 2. Rinse the cyclone system components until clean. After cleaning, let them dry for at least 24 hours.
- Page 10 Care and maintenance Cleaning floor brush Note: Before removing the floor brush, ensure it is detached from the host machine to prevent accidentally turning on the vacuum cleaner and avoiding injury. Do not use water to clean the floor brush as it contains electrical components. Be cautious of sharp objects when removing debris entangled around the brush head.
-
Page 11: Basic Parameter
Basic parameter Master Model VC-6003 Shape size 345x118x210mm Battery capacity 2200mAh Net Weight 1.3kg Dust cup capacity 0.5L Nominal voltage 22.2V Rated power 250W Electric floor brush FB-01 Model 22.2V Nominal voltage Rated power Executive standard: GB4706.1 GB4706.7 GB4343.1 GB17625.1 IEC 62133-2:2017... - Page 12 The name and content of harmful substances in the product Hazardous substance Name of parts Cr (VI) PBDE ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Metal parts ○ ○ ○ ○ ○ ○ Shell ○ ○ ○ ○...
-
Page 13: Frequently Asked Question
Frequently asked question If your vacuum cleaner displays an abnormal condition, refer to the following table for guidance on how to address the issue: Fault display code Possible cause Solution The dust cup is full and has Clean the dust cup of blocked the suction. - Page 14 Frequently asked question If the vacuum cleaner does not work properly, please refer to the following table to handle the abnormal situation. Common faults Possible cause Solution The battery is dead or low. Please charge the product. Automatic protection is Allow the product to cool down activated due to overheating for 30 minutes before...
- Page 15 Service If issues mentioned above persist, even after attempting to address them, please contact our after-sales service. If you have any questions, please contact our customer care centre. Our contact details are below: 0044-800-240-4004 enquiries@mhstar.co.uk IMPORTER ADDRESS: MH STAR UK LTD Unit 27, Perivale Park, Horsenden lane South Perivale, UB6 7RH...
