Mic/Camera/Carplay/Android Auto - Boss Audio Systems ELITE BE10ACP User Manual

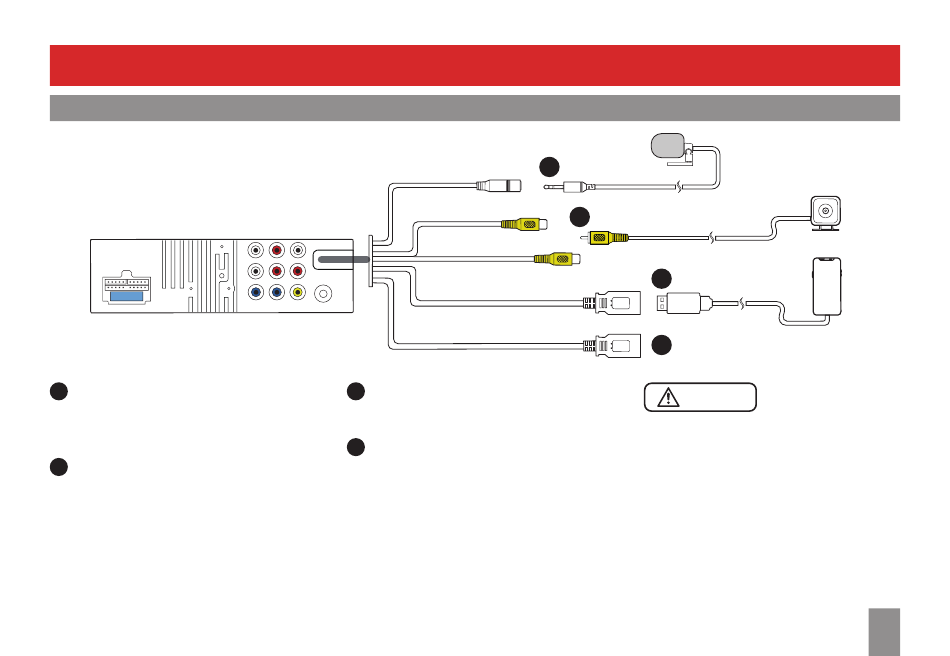

Connections

Mic/Camera/CarPlay/Android Auto

15
1
Connect the 3.5mm plug of the supplied
hands-free microphone for sound input
when using phone call or voice assistance
through Bluetooth or CarPlay/Android Auto.
2
Connect the RCA plug of your camera for
video signal input.
To operate your rear camera, you also need
to connect camera power and reverse signal.
(P.27)
Microphone Input
Front Camera Input
FL FR L-IN
R-IN
RL RR
SUB1 SUB2 V-IN
RADIO
3
Connect the lightning cable or USB cable of
your iPhone or Android device to enable use
of CarPlay or Android Auto.
4
Connect a USB flash drive for media
playback, or a mobile phone for charging.
1
2
Rear Camera Input
Apple CarPlay
Android Auto
USB/Charging
3
4
WARNING
Never rely solely on the backup camera. Always
check your surroundings before backing up.
Images may appear reversed if your camera is
not properly installed or set up.
Do not use features of this unit if it cannot be
operated safely and legally in your location.
31
