Connections

Parking Brake Wiring

IMPORTANT NOTE
Video and photo playback can be enabled
only when the parking brake switch wire is
connected to your vehicle, and the vehicle's
parking brake is engaged.
Park your vehicle in a safe place and engage the
parking brake to view video and photo.
WARNING
Improper connection or use of the parking
brake switch wire (e.g. defeating the safety
feature) violates Federal, State, and Local laws.
This may lead to injury, property damage, and/
or death.
Watching videos or photos while driving is
against Federal, State, and Local laws.
FL FR L-IN
R-IN
RL RR
15
SUB1 SUB2 V-IN

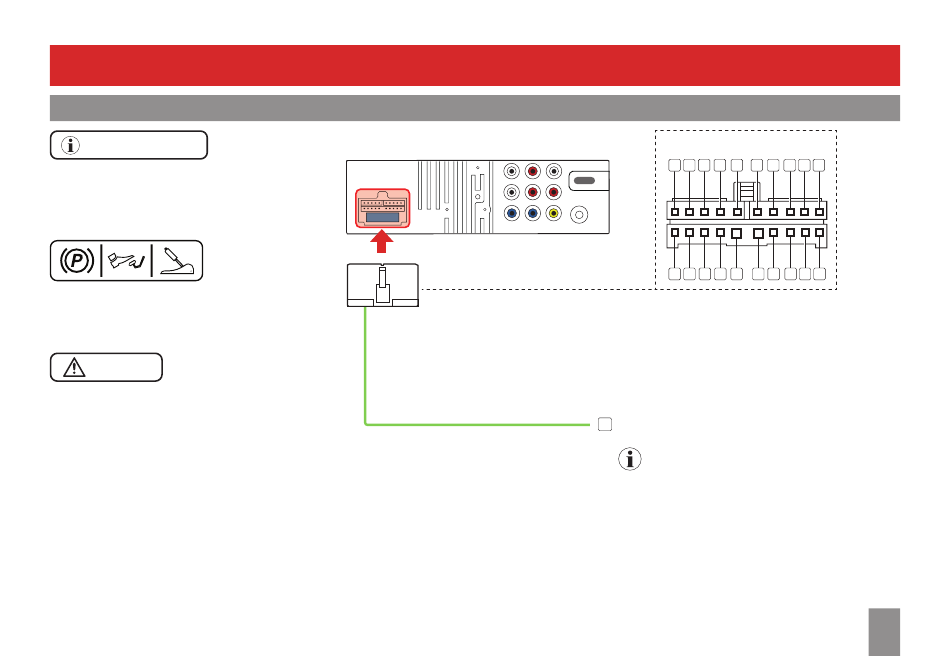

PARKING SW (Light green)
Parking brake switch wire
Front View
10 9 8 7 6
RADIO
20 19 18 17 16
To vehicle's parking brake switch
13
Note
Parking brake switch location varies from vehicles.
Consult a professional installer.
5 4 3 2 1
15 14 13 12 11
