6 Non-hazardous Area Model and Hazardous Area Model Mounting

6.1 Purge Air Connections

The iScan2 flame scanners (Non-hazardous Area Model and Hazardous Area Model) have a 1" NPT (F)
mounting connection. Use of a swivel mount assembly is recommended to permit proper sighting
adjustment of the flame scanner. (See Section "SIGHTING THE SCANNER" for instructions).

6.2 Mounting Instructions:

STEP 1 Remove the mounting ring and the mounting adapter from the scanner by unscrewing the
mounting ring.
STEP 2 Slip the mounting ring over the scanner mount.
STEP 3 Thread the mounting adapter onto the scanner mount and tighten by hand only.
STEP 4 Attach the scanner housing to the mounting adapter with the mounting ring and tighten by
hand only.
STEP 5 Avoid a sharp bend radius of scanner cable's quick disconnect. Provide strain relief if
required in order to maintain proper seating for the quick disconnect connectors.
NOTE:
of removal and to prevent mechanical damage.

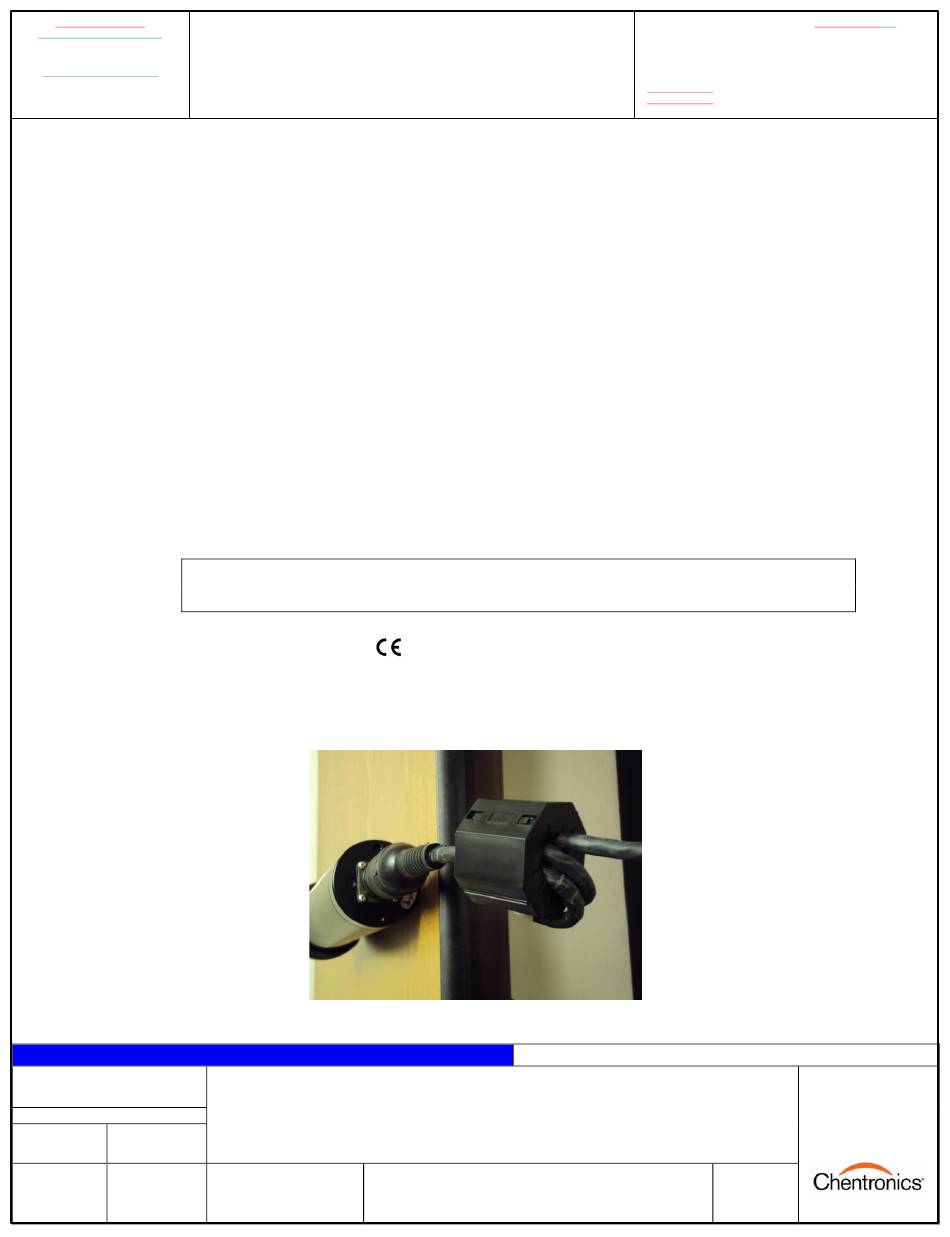

STEP 6 For applications requiring
2649-026) must have ferrite added to meet CISPR 14-1. The ferrite must be installed within
6" (15 cm) of the scanner body. The cable must pass through the ferrite 3 times as shown in
the picture below.
RELATED DOCUMENT – MUST COMPLY WITH SCHEDULE DOCUMENT(S):
FOR A LIST OF RELEVANT PATENTS
AND TRADEMARKS PLEASE SEE
CHENTRONICS.COM/LEGAL-NOTICES
ISO 9001 CERTIFIED
DRAWN BY:
ON:
AR
2022-NOV-01
LAST REV BY: ON:
INSTALLATION & OPERATION MANUAL
The mounting ring must be tightened and removed by hand only to allow for ease
Ferrite is manufactured by Fair-Rite. Part number is 0431177081.
INSTALLATION & OPERATION MANUAL
DCO No
.
15135
DWG. No.
marking, specifically for EN298:2012, the input cable (PN
