Lumascape Nero LED NE1 Installation Instructions

LUMASCAPE INC
1300 Industrial Rd, Unit #19
San Carlos, CA 94070, USA
T (650) 595-5862
W www.lumascape.com
Free Call : (866) 695-5862
LS333ANS-2COB | LS333ANS-2LED
Warranty void if not installed per instructions and local electrical code
WARNING
Install in accordance with National Electric
Code, ANSI/NFPA 70 or the Canadian Elec-
trical Code, Part I (CEC), CSA C22.1
Use only ¾" non-metallic
conduit. Conduit entry must
be oriented upwards facing.
Always use a pool and spa
rated junction box between
luminaires and power
unit (unless power unit is
specifically listed for use
without such junction box).
Creation of an airlock is critical
to ensure water cannot drain
out through the conduit.
Use tie-wire points to
securely hold forming shell
in place during construction.
Should you experience any difficulty, please contact Lumascape directly: phone (866) 695-5862 or email info@lumascape.com
IF IN DOUBT, PLEASE CALL
www.lumascape.com
Except where the luminaire is installed in an area of the swimming pool that is not used for
swimming and the lens is adequately guarded to keep any person from contacing it, the
luminaire shall be installed in or on a wall of the pool, with the top lens opening not less than
18"" below the normal water level of the pool.
For use of a listed swimming pool or spa transformer and, if the conduit is so connected
without using a swimming pool junction box, the transformer shall be marked as suitable for
direct conduit connection to the forming shell of a wet niche luminaire.
For details, refer to wiring information on reverse page.

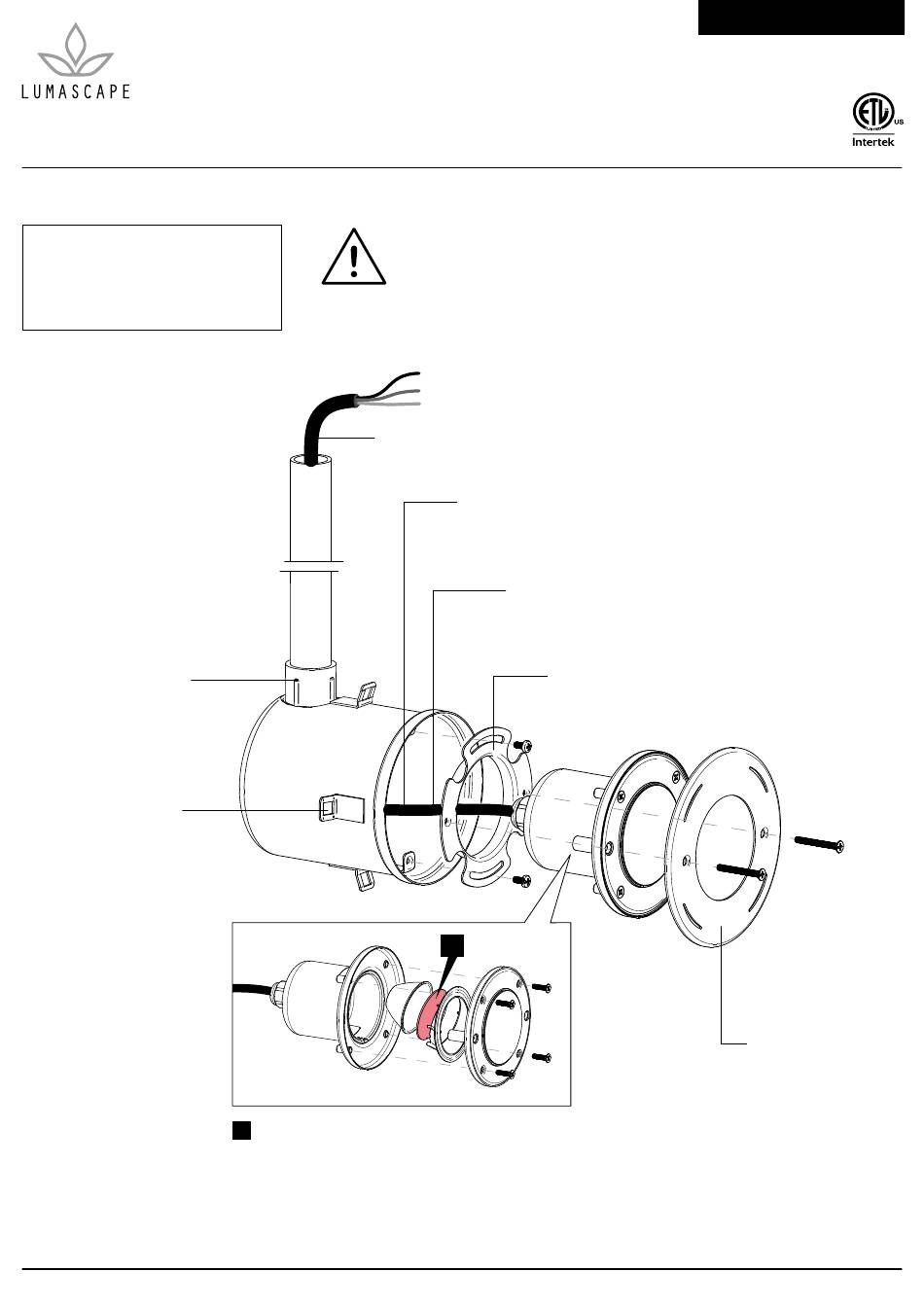

Diffuser Installation (LS333ANS-2COB ONLY)
A
Open luminaire and insert diffuser between reflector and
accessory holder. Re-seal luminaire.
INSTALLATION INSTRUCTIONS
MODEL: LS333ANS-2COB, LS333ANS-2LED
INPUT VOLTAGE: 30 V DC (LS333ANS-2COB)
12-15V AC, 24V DC (LS333ANS-2LED)
Factory attached cable. Standard cable length is 16'. For longer lengths,
this must be ordered from the factory. Replacement of factory assembled
cable will void warranty.
Coil a minimum 6' cord inside wet niche, or at minimum
enough to reach side of pool - required for future
luminaire servicing and for NEC compliance.
Mounting ring is used to fine tune rotational adjustment
of the luminaire. Ensure this component is installed in
the forming shell BEFORE pulling the cable through.
A
FORM IN0039US 171116
UNDERWATER LUMINAIRE
Cover plate must be
installed to ensure
compliance with
local code.
Copyright ©2017 LUMASCAPE
IN0039US 171116
