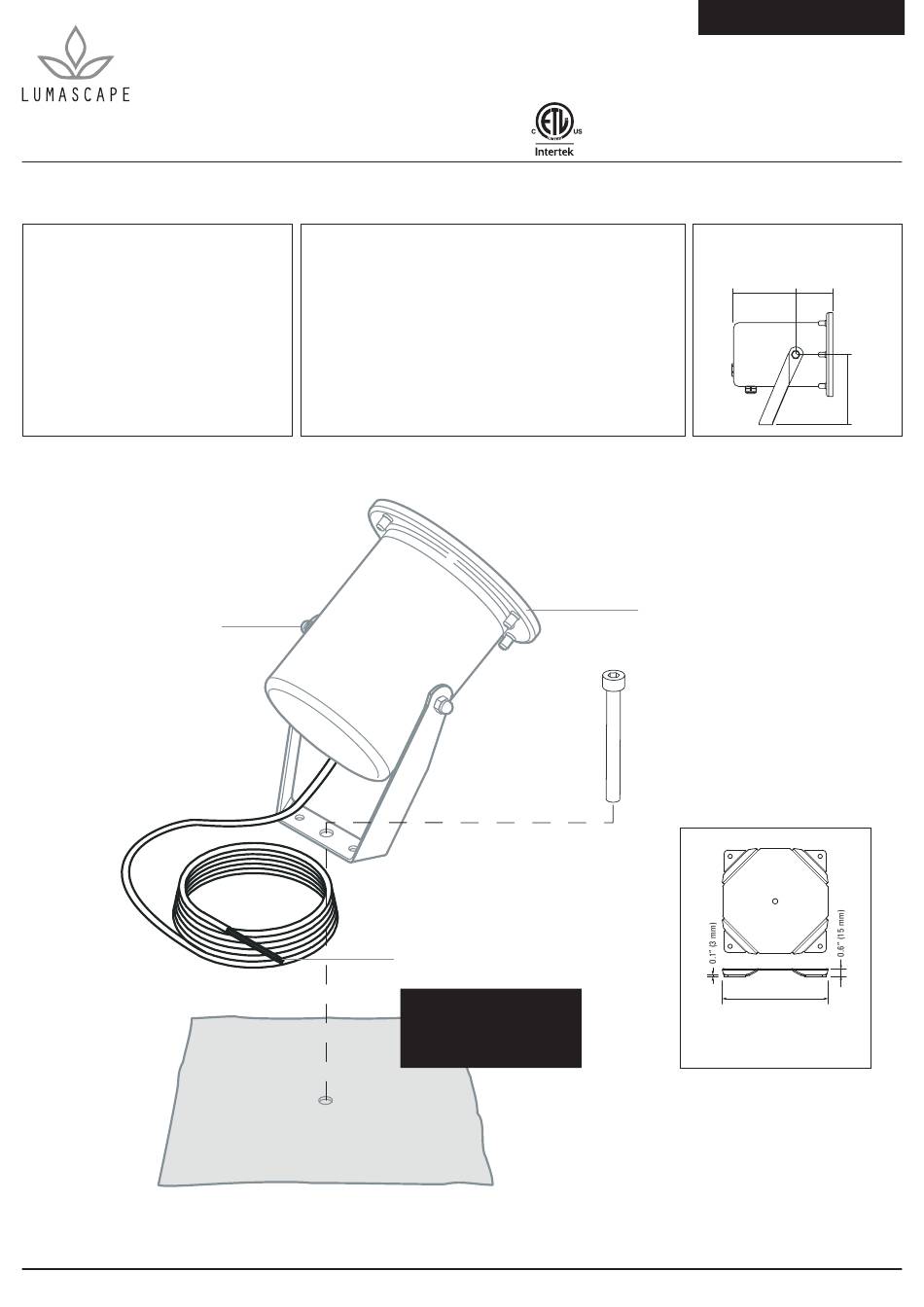

Lumascape LS365LED Installation Instructions

LUMASCAPE
1300 Industrial Rd, Unit #19
San Carlos, CA 94070, USA
T (650) 595-5862
W www.lumascape.com
Free Call : (866) 695-5862
LS365LeD (IP68)

Warranty void if not installed per instructions and local electrical code

Note: Fixture uses intelligent driver. Always leave on for 20 seconds unless programing.

WARNING

It is strongly recommended to a use
Lumascape transformer
Opening luminaire will void warranty
Install in accordance with National
Electric Code, ANSI/NFPA 70 or the Canadian
Electrical Code, Part I (CEC), CSA C22.1
Never use electronic transformers
with LED luminaires
Aim luminaire as desired and
tighten dome nuts to lock
luminaire tilt into position.
www.lumascape.com
INSTALLATION INSTRUCTIONS
CAUTION
• Luminaire is factory sealed. Do not remove cover.
• The luminaire should only be used complete with its
protective shield (cover).
• Do not shorten, interfere or disconnect cable from luminaire.
Warranty will be void if cable assembly is tempered with.
• If cable is damaged replace with cable supplied by
Lumascape only.
• Do not use power tools to tighten screws.
• Do not overtighten screws.
Run the cable out and connect to
a suitable source of power.
Power supply
isolated prior to connection or
disconnection of cables. Failure
to do so will result in damage to
the luminaire components.
CATegORy:
MODeL:
Luminaire is factory sealed.
DO NOT REMOVE COVER.
Secure luminaire to mounting surface using
a suitable non-corrosive fastener. One 5/16
in (8 mm) stainless steel masonry anchor is
recommended for concrete mounting.
Luminaire may also be mounted using the
optional LS6074 Mounting Plate depicted below
must be
FORM IN0158US
Underwater
LS365LED

OVERVIEW

140MM 80MM
(5.51IN) (3.15IN)
160MM
(6.3IN)
Ø 7.9" (200 mm)
LS6074 Mounting Plate
(optional accessory)
IN0158US - 24/04/15
