Lumascape LS333ANS-2COB Installation Instructions

Advertisement

Quick Links

Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
LS333ANS-2COB & LS333AS-2COB
Warranty void if not installed as per installation instructions
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
Wire Colour Designation
1
Black
Red
Grey
(1)
2
4
3
NOTE: These installation instructions are accepted in most areas. Some supply authorities may require alternative installation methods.
Should you experience any difficulty, please contact Lumascape directly: phone 07 3286 2299 or email sales@lumascape.com.au
IF IN DOUBT, PLEASE CALL
www.lumascape.com.au
It is strongly recommended to use
Lumascape power supply or transformer
Use of electronic transformer will
permanently damage luminaire
All connections must be kept dry; failure to
do so may result in product reliability issues
Installation to be done by a qualified
Single Colour Dim
1
Luminaire Cable
30 V DC -
Connect to a suitable power supply in accordence
30 V DC +
with local wiring rules.
(1)
PWM
Do not connect if dimming
is not required
Suppluy Conduit
2
Attach to niche gland and use to run luminaire
cable back to power supply.
Niche
3
Install at the time of construction. Use temporary
fibre board shield supplied to cover niche when
concrete is sprayed. About 1.3 m of cable can be
coiled inside the niche.
5
A
Copyright ©2016 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773
INSTALLATION INSTRUCTIONS
INSTRUCTIONS COVER: 30 V DC Ripple Free Power Supply
WARNING
electrician
NOTE: Make sure to pull luminaire cable
through mounting ring before feeding
through conduit and terminating
7
6
A

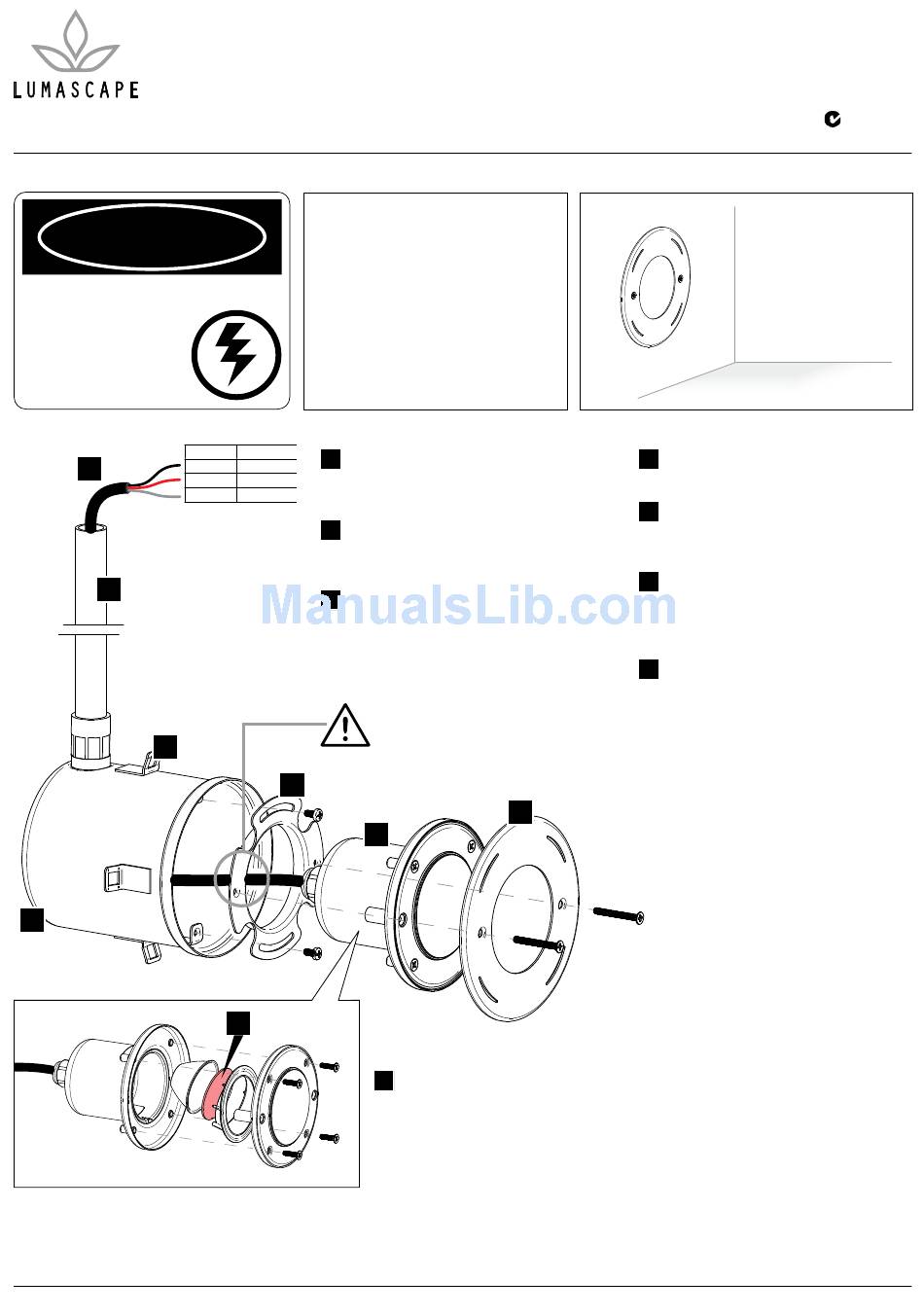

Diffuser Installation
Open luminaire and insert diffuser between
reflector and accessory holder. Re-seal
luminaire.
MODEL: LS333ANS-2COB & LS333AS-2COB
FINISHED
APPEARENCE
4
Mounting Lugs
Use to hold niche in place during construction.
5
Mounting Ring
Used slightly adjust luminaire position and rotation
within niche.
6
Luminaire
If your luminaire was ordered with the factory
pre-set tilted optical system make sure to install it
in the correct orientation.
7
Cover Plate
Place in front of luminaire before using screws to
mount luminaire and cover plate to mounting ring.
UNDERWATER
A.C.N. 0105 72 773
IP68
IN0157 - 18 March 2016
