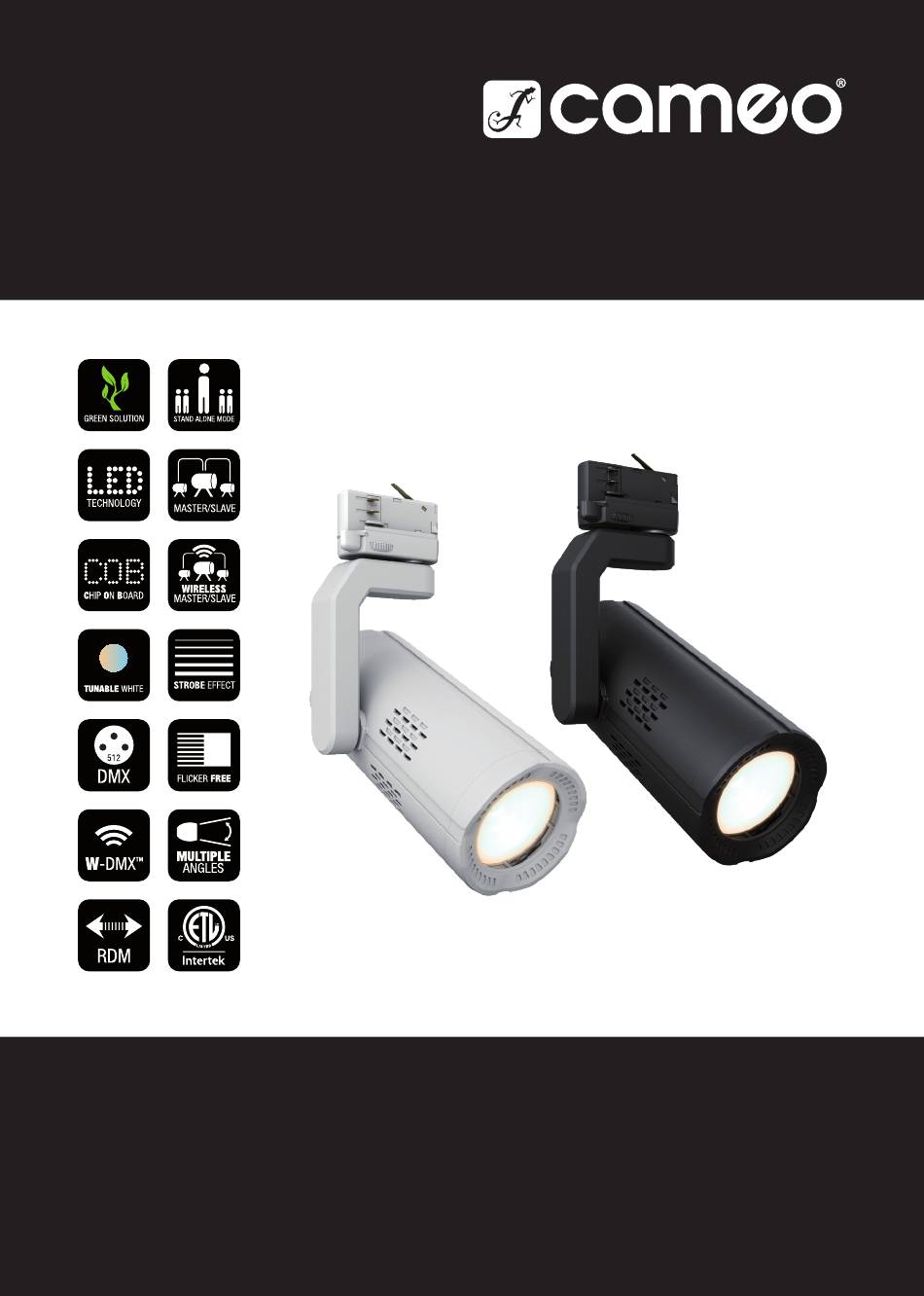

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO G4 TW TRACKLIGHT WITH TUNABLE WHITE LED CLG4TW / CLG4TWWH...
-
Page 2: Table Of Contents
DEFINITIONS AND SYMBOL EXPLANATIONS SAFETY INSTRUCTIONS INSTRUCTIONS FOR INDOOR INSTALLATION EQUIPMENT INCLUDED INTRODUCTION CONNECTIONS, OPERATING AND DISPLAY ELEMENTS OPERATION PER UNIT CONTROLLER CAMEO UNICON INSTALLATION FITTING THE DIRECTIONAL GRILLE, DIFFUSER AND FILTER OPTIONAL ACCESSORIES CARE, MAINTENANCE AND REPAIR DIMENSIONS TECHNICAL DATA... - Page 3 CONTENUTO DELL’IMBALLAGGIO INTRODUZIONE CONNESSIONI, ELEMENTI DI COMANDO E DI VISUALIZZAZIONE FUNZIONAMENTO PER UNITÀ CONTROLLER CAMEO UNICON INSTALLAZIONE MONTAGGIO DELLA GRIGLIA DIREZIONALE, DEL DIFFUSORE E DEL FILTRO ACCESSORI OPZIONALI CURA, MANUTENZIONE E RIPARAZIONE DIMENSIONI DATI TECNICI DISTANZA MINIMA DALLA SUPERFICIE ILLUMINATA...
-
Page 4: Information On This User Manual
This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is availab- le on our website CAMEOLIGHT.COM. -
Page 5: Safety Instructions
This symbol identifies hazardous areas or hazardous situations. This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards caused by intense light sources. This symbol indicates a device in which there are no user-replaceable parts. This symbol indicates additional information on the operation of the product. This symbol indicates a device that may only be used in dry rooms. - Page 6 2. Make sure that the voltage and frequency of the mains supply correspond to the values indicated on the unit. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables. 3.
- Page 7 ATTENTION: 1. Do not install or operate the device near any radiators, heat registers, stoves or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat. 2. Do not place ignition sources such as burning candles near the device. 3.
-
Page 8: Instructions For Indoor Installation Equipment
The operation of transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (e.g. radio frequency and transmission power). WARNING: Devices with wireless signal transmission are not suitable for use in sen- sitive areas in which radio operation can lead to potential detrimental effects. -
Page 9: Included
The spotlight features the RDM standard (Remote Device Management). This remote unit manage- ment enables status query and configuration of RDM end devices via an RDM-capable controller, such as the optionally available Unit Controller Cameo UNICON (item number CLIREMOTE). The Cameo UNICON also allows access to the entire fixture menu. -
Page 10: Connections, Operating And Display Elements
Rail adapter for mounting on a compatible 3-phase rail. TILTABLE AND SWIVELLING SUPPORT ARM Support arm with two joints for adjusting the beam direction on the horizontal and vertical plane. RJ45 INTERFACE Interface for configuring and controlling the fixture using the Cameo UNICON DMX/RDM controller. - Page 11 The fixture can also be configured using another RDM controller and controlled using a standard DMX controller. Pin assignment: W-DMX RESET BUTTON Button for disconnecting W-DMX connections and for pairing the spotlight with W-DMX devices. The housing surface of the device can become very hot during regular operation. Always allow the unit to cool down sufficiently before operating the button.
-
Page 12: Operation Per Unit Controller Cameo Unicon
RDM devices (Discovery) and if the G4 TW is correctly connected and switched on, a device is found (Discovered: 1). After a short time, the G4 TW is displayed as the only unit in a list (the first part of the displayed RDM unit shows the unit model, the second part behind "/" is the label and can be individually adjusted in the menu item Label for easier identification). - Page 13 Number of channels in current DMX mode Sensor LED temperature (press to display) Individual Cameo device menu for editing settings Fixture Menu (see DEVICE MENU [Fixture Menu]) LABEL In the RDM/Fixture menu, select Label and confirm the selection to individually name the RDM device.
- Page 14 DEVICE MENU (Fixture Menu): In the RDM/Fixture menu, select Fixture Menu and confirm the selection. CONFIGURE DMX START ADDRESS Select DMX Address, confirm the selection, set the desired DMX address and confirm the entry. (highest value depends on the currently activated DMX operating mode) SELECT DMX MODE Select DMX Mode, confirm the selection, then select the desired DMX mode and confirm the selection.
- Page 15 STANDALONE MODE TUNEABLE WHITE In the standalone mode Tuneable White, the colour temperature (CCT) can be adjusted from 1800 K to 6500 K in 100 K increments, in addition to the brightness (Dimmer) and colour (Tint). Select Stand Alone, confirm the selection, then select Tunable White and confirm again. Now select the menu item you wish to edit and confirm the selection.
- Page 16 SYSTEM SETTINGS (Settings) Select Settings and confirm. This will take you to the submenu for accessing the system information (see table): Settings Hold Last command is retained User Colour 1 Activates User Color 1 Operational status DMX Fail Fade out 10s 10 seconds fade to blackout with DMX signal fault Blackout...
- Page 17 Warm White Cross-mode brightness setting of Calibra- = Colour calibration WW and CW with values from 0 – tion Cold White Switching wireless Wireless control disabled W-DMX control on and off Wireless control activated Always On LED Permanently on Status LED off = Set status LED LED is switched off after 30 sec-...
-
Page 18: Installation
INSTALLATION HAZARD: Overhead mounting requires extensive experience, including the calcula- tion of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified profes- sional. -
Page 19: Fitting The Directional Grille, Diffuser And Filter
To dismantle the headlamp, open the locking lever (fig. 3) and pull the headlamp downwards out of the rail (fig. 4). FITTING THE DIRECTIONAL GRILLE, DIFFUSER AND FILTER Up to three optionally available accessories can be mounted in combination in front of the head- lamp's exit lens (see OPTIONAL ACCESSORIES). -
Page 20: Optional Accessories
Now place the end ring including accessories on the headlamp as shown in figure D. OPTIONAL ACCESSORIES Filter Diffusers Straightening grids CLG4CTB (CTB Filter) CLG46010LENS (60° x 10°) CLG4HC (Honeycomb, black) CLG4CTO (CTO filter) CLG410LENS (10°) CLG4HCWH (Honeycomb, white) CLG420LENS (20°) CLG430LENS (30°) CLG460LENS (60°) CARE, MAINTENANCE AND REPAIR... -
Page 21: Dimensions
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case). 3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed. 4. -
Page 22: Technical Data
80,2 34,5 108,7 TECHNICAL DATA Product number: CLG4TW(WH) Product type: LED spotlight Type: Installation spotlight Colour spectrum: 2700K - 6500K Number of LEDs: LED type: 2in1 Chip LED output: 40 W LED PWM frequency: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz(adjustable) Half chaff angle: Tenth scattering angle: DMX input:... -
Page 23: Minimum Distance To Illuminated Surface
Colour reproduction index Ra: >97 GLOBAL pro (formerly NOKIA) XTS, XTTS and XTSC 3-phase Compatible rails: tracks Power supply connection: Rail adapter (selectable phase) Ambient temperature 0°C – 40°C (in operation): Relative air humidity: <80%, non-condensing Housing colour: Black (CLG4TW) / White (CLG4TWWH) Housing material: Metal Housing cooling:... -
Page 24: Manufacturer's Declarations
DEVICE: 1. This appliance is subject to the European Directive on Waste Electrical and Electronic Equipment as amended. WEEE Directive Waste Electrical and Electronic Equip- ment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country! 2. -
Page 25: Informationen Zu Dieser Bedienungsanleitung
DMX CONTROL / DMX STEUERUNG / PILOTAGE DMX / CONTROL DMX / STEROWANIE DMX / CONTROLLO DMX 2CH 16 2 CH Function Values Dimmer 000 - 255 0% to 100% Dimmer 000 - 255 0% to 100% fine Warm 000 - 255 0% to 100% White Cold... -
Page 26: Sicherheitshinweise
128 - 250 Strobe slow -> fast <1Hz - 20Hz Multi- Strobe functional functions 251 - 255 Strobe open Strobe Warm Warm 000 - 255 0% to 100% White White Cold Cold 000 - 255 0% to 100% White White 000 - 005 No function 006 - 006 Warm white 007 - 046 Warm white ->... - Page 27 Reset All Functions (except DMX-Address and 236 - 237 Device Device Mode) (hold 3s) settings settings 238 - 255 No function EN: (1*) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call. DE: (1*) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.
-
Page 30: Hinweise Für Indoor-Installationsgeräte
CAMEOLIGHT.COM Adam Hall GmbH Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | United Kingdom REV: 03...
