USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO
F4 D PO IP

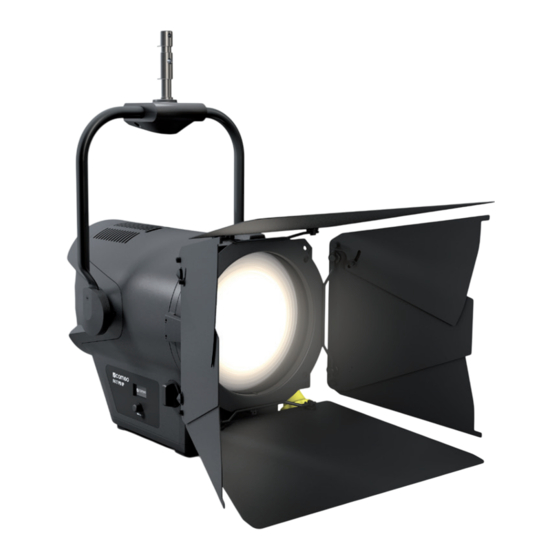

PROFESSIONAL FRESNEL SPOTLIGHT WITH DAYLIGHT LED,
POLE OPERATED - IP65
CLF4DPOIP
F4 T PO IP
PROFESSIONAL FRESNEL SPOTLIGHT WITH TUNGSTEN LED,
POLE OPERATED - IP65
CLF4TPOIP
Advertisement
Related Manuals for Cameo F4 D PO IP
Summary of Contents for Cameo F4 D PO IP
- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D´UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D´USO F4 D PO IP PROFESSIONAL FRESNEL SPOTLIGHT WITH DAYLIGHT LED, POLE OPERATED - IP65 CLF4DPOIP F4 T PO IP PROFESSIONAL FRESNEL SPOTLIGHT WITH TUNGSTEN LED, POLE OPERATED - IP65...
- Page 2 CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH ESPAÑOL PREVENTIVE MEASURES MEDIDAS DE SEGURIDAD INTRODUCTION INTRODUCCIÓN CONNECTIONS, OPERATING AND DISPLAY ELEMENTS CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS OPERATION DE VISUALIZACIÓN INSTALLATION, MOUNTING AND SETTING WITH FUNCIONAMIENTO OPERATING ROD COLOCACIÓN, MONTAJE Y AJUSTE MEDIANTE BARRA BARN DOOR AND FILTER FRAMES: INSTALLING/REMOVING...
- Page 3 We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM.
- Page 4 32. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains). 33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction.
- Page 5 POWER OUT TRUE1 compatible mains output socket for power supply to additional CAMEO spotlights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A). Always blanked with the corresponding rubber blanking cap if not used.
- Page 6 TIPS • As soon as the spotlight is correctly is connected to the power supply, the following will be displayed in succession: “Welcome to Cameo”, the model name and the software version. After this process, the lamp is ready for operation and starts in the previously enabled mode.
- Page 7 CONFIGURING DMX MODE (DMX Mode) Press the encoder to access the main menu. Rotate the encoder to select the menu item “DMX Mode” (left arrow) and confirm by pushing the encoder. You can now select the desired DMX mode by rotating the encoder. Confirm the selection by pushing the encoder. Select the arrow symbol at the top of the menu for “back”...
- Page 8 DEVICE SETTINGS (Settings) Press the encoder to access the main menu. Rotate the encoder to select the menu item “Settings” (left arrow) and confirm by pushing the encoder. This will take you to the submenu for setting the submenu items (see table, rotate the encoder to select and push the encoder to confirm selection).
- Page 9 Adjusts fan speed Back Auto Automatic fan speed control Max Intensity Maximum fan power for maximum brightness Low Noise Extra quiet fan with reduced brightness Factory Reset resets to factory Back setting Reset Now! reset to factory settings Dimmer curves linear exponential...
- Page 10 INSTALLATION, MOUNTING AND SETTING WITH OPERATING ROD Thanks to its four plastic feet, the spotlight can be positioned in a suitable location on a level surface. Mounting to a truss is possible using the built-in 28 mm TV spigot (A) and a suitable TV truss clamp (not supplied). Ensure firm connections and secure the spotlight by attaching a suitable safety cable to the point intended for this purpose on top of the housing (B).
- Page 11 DMX TECHNOLOGY DMX-512 DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN"...
- Page 12 TECHNICAL DATA Article number: CLF4DPOIP CLF4TPOIP Product type: Outdoor LED spotlight Outdoor LED spotlight Type: Pole-operated Fresnel spotlight with zoom function Pole-operated Fresnel spotlight with zoom function Color spectrum: Daylight 5600 K Tungsten (warm white) 3200 K CRI: Number of LEDs: LED type: 520 W 520 W...
- Page 13 MANUFACTURER´S DECLARATIONS MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Decla- rations-CAMEO_DE_EN_ES_FR.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: Info@adamhall.com / +49 (0)6081 / 9419-0. CORRECT DISPOSAL OF THIS PRODUCT (valid in the European Union and other European countries with a differentiated waste collection system) This symbol on the product, or on its documents indicates that the device may not be treated as household waste.
- Page 14 cameolight.com Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com REV: 02...
