Summary of Contents for Cameo G4 T

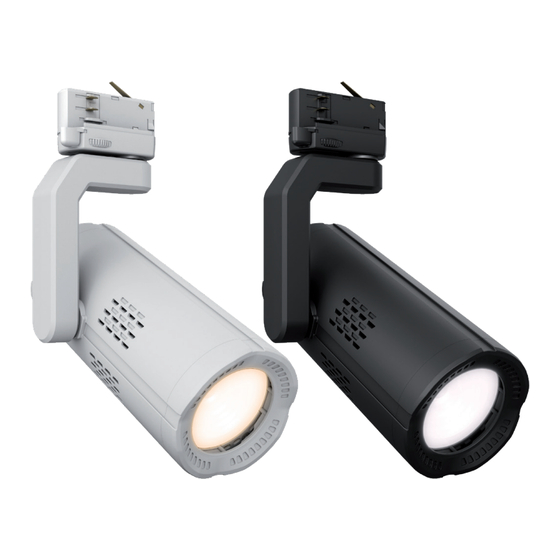

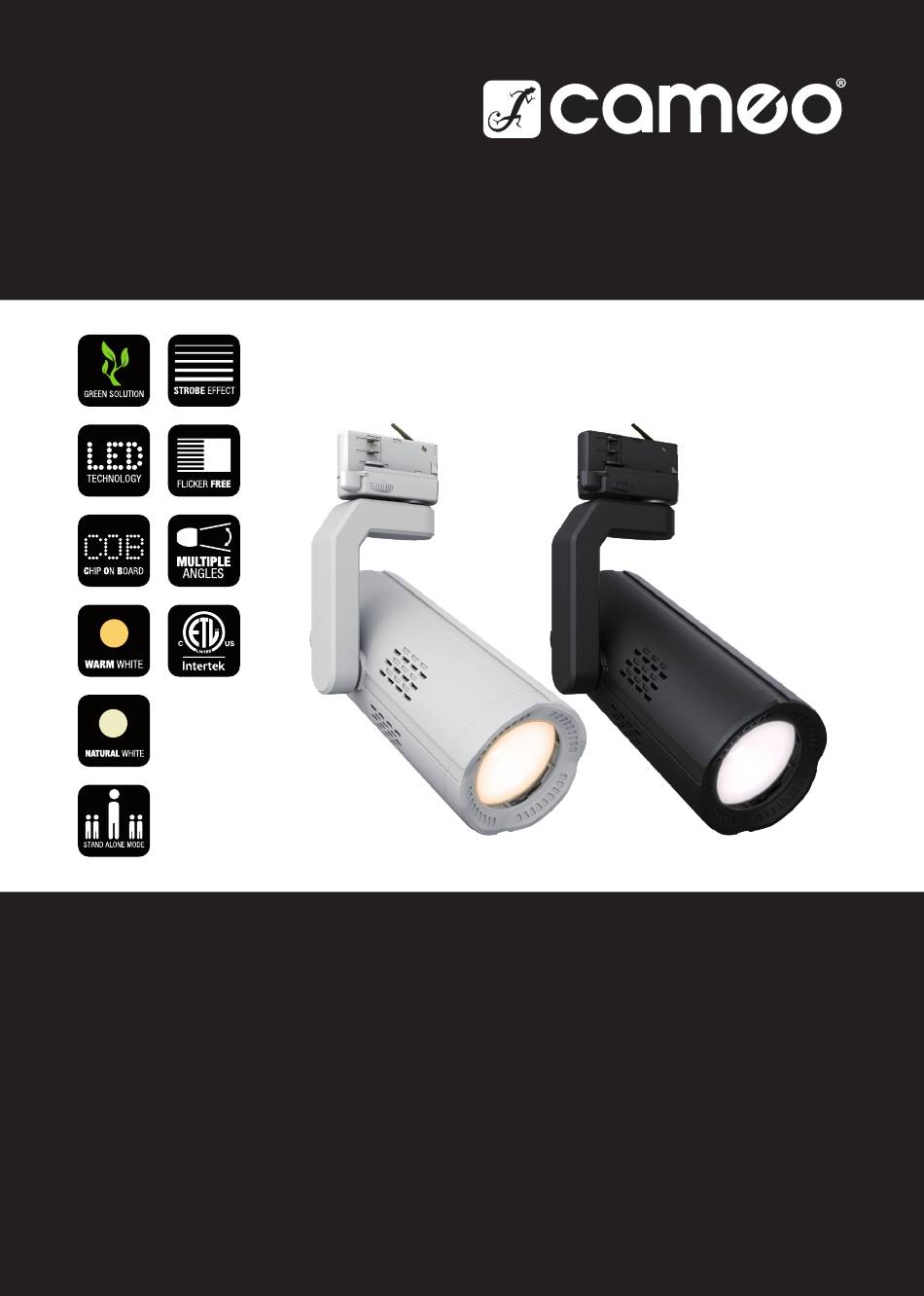

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D`UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D‘ USO G4 T TRACKLIGHT WITH TUNGSTEN LED CLG4T / CLG4TWH G4 N TRACKLIGHT WITH NEUTRAL WHITE LED CLG4N / CLG4NWH...
-
Page 2: Table Of Contents
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH INFORMATION ON THIS USER MANUAL INTENDED USE DEFINITIONS AND SYMBOL EXPLANATIONS SAFETY INSTRUCTIONS INSTRUCTIONS FOR INDOOR INSTALLATION EQUIPMENT PACKAGING CONTENT INTRODUCTION LAMP WITH HOLDING ARM AND RAIL ADAPTER INSTALLATION FITTING THE DIRECTIONAL GRILLE, DIFFUSER AND FILTER OPTIONAL ACCESSORIES... -
Page 3: Information On This User Manual
This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is availab- le on our website CAMEOLIGHT.COM. -
Page 4: Safety Instructions
This symbol identifies hazardous areas or hazardous situations. This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards caused by intense light sources. This symbol indicates a device in which there are no user-replaceable parts. This symbol indicates additional information on the operation of the product. This symbol indicates a device that may only be used in dry rooms. - Page 5 2. Make sure that the voltage and frequency of the mains supply correspond to the values indicated on the unit. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables. 3.
- Page 6 ATTENTION: 1. Do not install or operate the device near any radiators, heat registers, stoves or other heat sources. Ensure that the device is always installed in such a way that it is suffi- ciently cooled and cannot overheat. 2. Do not place ignition sources such as burning candles near the device. 3.
-
Page 7: Instructions For Indoor Installation Equipment
Included in the scope of delivery of the product CLG4T are: X 1 x Cameo G4T spotlight, black X User manual The scope of delivery of the product CLG4TWH includes:... -
Page 8: Lamp With Holding Arm And Rail Adapter
CONTROL FUNCTIONS Manual dimmer FEATURES Compatible with GLOBAL pro (formerly NOKIA) XTS, XTTS and XTSC 3-phase tracks 40 W Neutral White / Tungsten LED. Operating voltage: 100–240 V AC. Diffusing screens, filters and straightening grids optionally available. LAMP WITH HOLDING ARM AND RAIL ADAPTER - The CLG4T and CLG4N models have identical mechanical features and controls -... -
Page 9: Installation
RAIL ADAPTER Rail adapter for mounting on a compatible 3-phase rail. TILTABLE AND SWIVELLING SUPPORT ARM Support arm with two joints for adjusting the beam direction on the horizontal and vertical plane. DIMMER Dimmer for adjusting the brightness. INSTALLATION HAZARD: Overhead mounting requires extensive experience, including the calcula- tion of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. -
Page 10: Fitting The Directional Grille, Diffuser And Filter
To dismantle the headlamp, open the locking lever (fig. 3) and pull the headlamp downwards out of the rail (fig. 4). FITTING THE DIRECTIONAL GRILLE, DIFFUSER AND FILTER Up to three optionally available accessories can be mounted in combination in front of the head- lamp's exit lens (see OPTIONAL ACCESSORIES). -
Page 11: Optional Accessories
Now place the end ring including accessories on the headlamp as shown in figure D. OPTIONAL ACCESSORIES Filter Diffusers Straightening grids CLG4CTB (CTB Filter) CLG46010LENS (60° x 10°) CLG4HC (Honeycomb, black) CLG4CTO (CTO filter) CLG410LENS (10°) CLG4HCWH (Honeycomb, white) CLG420LENS (20°) CLG430LENS (30°) CLG460LENS (60°) -
Page 12: Care, Maintenance And Repair
CARE, MAINTENANCE AND REPAIR In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used. We generally recommend a visual inspection before each operation. -
Page 13: Dimensions
DIMENSIONS (mm) 80,2 34,5 108,7... -
Page 14: Technical Data
TECHNICAL DATA Product number: CLG4T(WH) CLG4N(WH) Product type: LED spotlight LED spotlight Type: Installation spotlight Installation spotlight Colour spectrum: 3000K 4000K Number of LEDs: LED type: Single Single LED output: LED PWM frequency: 800Hz (fixed) 800Hz (fixed) Half chaff angle: Tenth scattering angle: DMX input: ----... -
Page 15: Minimum Distance To Illuminated Surface
Interchangeable lenses Interchangeable lenses (10°, 20°, 30°, 60°, 60°x10°) (10°, 20°, 30°, 60°, 60°x10°) Accessories (optional): Honeycomb, CTO filter, Honeycomb, CTO filter, CTB filter CTB filter MINIMUM DISTANCE TO ILLUMINATED SURFACE This symbol with distance specification in metres (m) indicates the minimum distance between the light head and the illuminated surface. -
Page 16: Manufacturer's Declarations
MANUFACTURER’S DECLARATIONS Manufacturer's warranty & limitation of liability Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu-Anspach / E-Mail Info@adamhall.com / +49 (0)6081 / 9419-0 Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf In case of service, please contact your sales partner. CE conformity Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU) - Page 17 CAMEOLIGHT.COM Adam Hall GmbH Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | United Kingdom REV: 03...
