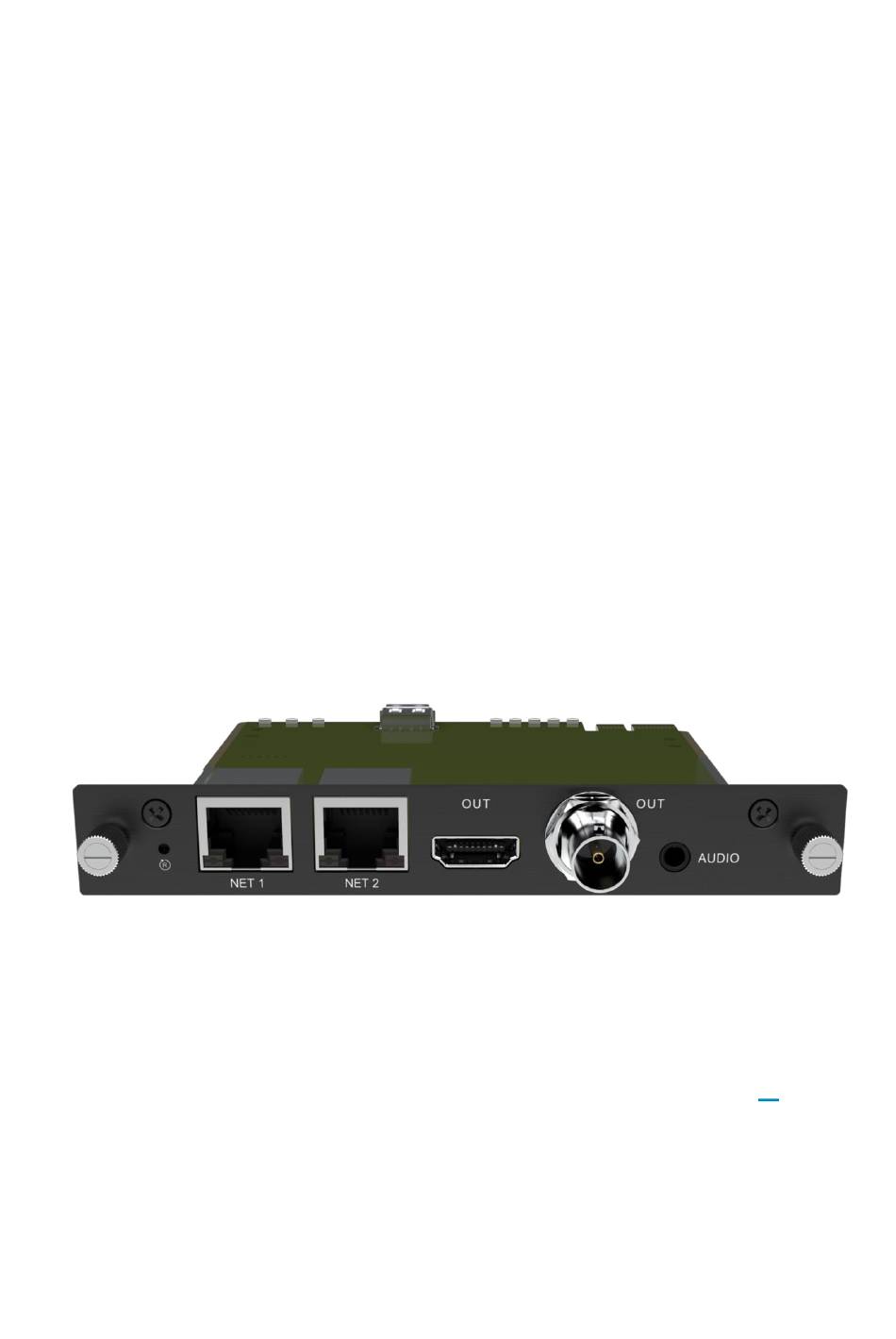

- Page 1 Rack-mounted Multiple Channels H.265 4K Decoding Card RD-300 Quick Start Guide 2021 REV. 1 Thanks for your purchasing! Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the...
-
Page 2: Interface Description
device, please strictly follow the instructions of this guide or install and use it under the guidance of professionals. Incorrect electrical connections or physical installation may cause permanent damage to the device and even threaten personal safety. 1. Interface description 1. - Page 3 1) Card installation Align the card assembly to the two sides of the card slot, push in parallel and tighten the left and right screws. 1. Align and push the card in parallel 2. Tighten the left and right screws 2) Device connection Ethernet interface Monitor...
-
Page 4: Add Video Source
3) Login to the management web page If you connect NET 1 to your computer, enter 192.168.1.168 or http://192.168.1.168 in the browser. In the pop-up login dialog box, it will require the username and password. admin admin Default username: , default password: 4) Device IP address configuration After you login to your device, you can configure your network as DHCP or Manually Set, which can be used for streaming and device management. - Page 5 2) Add an NDI | HX video source On the WEB page "Media" - "Discovery", the NDI video source in the same subnet can be found in the pop-up dialog box NDI Sources. Select the source you want to add, click “Add", and the video source will be added to the video source list. Note: It only supports to decode NDI|HX Version 2.0 sources.
- Page 6 Drag the added source into the source preview list, and after the normal connection starts decoding, you can preview the source screen and decode the source parameters on the WEB page. Note: Preview function should be working the latest version of Google and Edge browser;...
-
Page 7: Decoding Output Configuration
5. Decoding output configuration The decoder has two output windows that can decode the same or different content for both SDI and HDMI output simultaneously. All you need to do is drag the video source you've added to the corresponding output window and the decoder starts decoding. - Page 8 6. Decode the playback buffer For a variety of different scenarios and networks, for decoding the balance of real-time and smoothness, the device provides a variety of buffering strategies for users to choose from. According to the actual network situation settings, you can choose a lower delay in the good network conditions, while a higher delay in a poor network condition.
-
Page 9: Restore Factory Settings
Quick reset：Used to reset the decoding service, typically to make modified parameters take effect immediately or to decode exceptions. The current decoding service is briefly interrupted during a quick reset and requires approximately 3S. Reboot：To decode the device to perform a hot restart, try the device restart if the device is not functioning well and still does not resolve the issue through a quick reset. - Page 10 The decoder supports online firmware upgrading. Through the "System Settings" - "Firmware Upgrade" function of the WEB management interface, you can upload the firmware upgrade files provided by the manufacturer for the firmware online upgrade. After the firmware upgrade file uploaded successfully, the decoder will automatically restart the device for the upgrade, which will take approximately 1 to 3 minutes (depending on the memory of the firmware, the upgrade time varies), please be patient.
