4 Channels Rack-mounted Decoding Card
RD-230
Quick Start Guide
2021
REV. 1
Thanks for your purchasing! Before using this product, it is recommended that you read the
guide carefully. To ensure your personal safety and avoid physical or electrical damage to the
device, please strictly follow the instructions of this guide or install and use it under the guidance
Advertisement
Table of Contents
Related Manuals for Adcom RD-230
Summary of Contents for Adcom RD-230
- Page 1 4 Channels Rack-mounted Decoding Card RD-230 Quick Start Guide 2021 REV. 1 Thanks for your purchasing! Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the...
-
Page 2: Interfaces Description

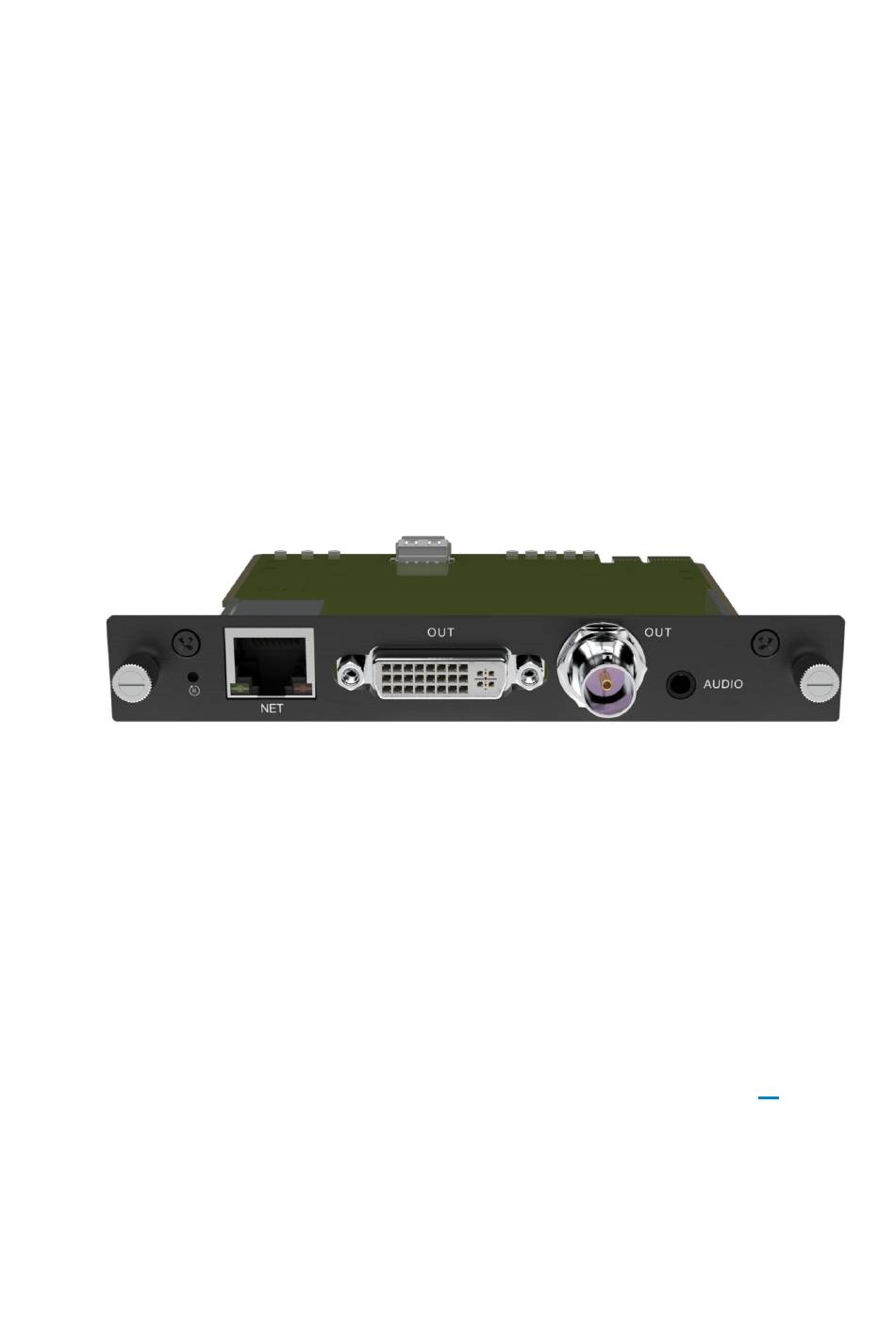

of professionals. Incorrect electrical connections or physical installation may cause permanent damage to the device and even threaten personal safety. 1. Interfaces description 1. Reset Button Press and hold for 5 seconds to restore the factory settings 2. Ethernet Port1 1*RJ-45,100/1000Mbps 3. - Page 3 1. Align and push the card in parallel 2. Tighten the left and right screws 2) Device connection Ethernet interface AC input Monitor DVI(HDMI/VGA) OUT SDI OUT 2.2 Device login 1）Device default management IP address: The default IP for the decoding card is 192.168.1.168 and the subnet mask is 255.255.255.0.
-
Page 4: Add Video Source
192.168.1.* (*Refers to numbers other than 168 between 1-255), Click "OK". 3) Login to the management web page To connect the device's NET to your computer, and enter 192.168.1.168 or http://192.168.1.168 in the browser. In the pop-up login dialog box, it will require the user name and password. - Page 5 Note: It only supports to decode NDI|HX Version 2.0 sources. All added sources are displayed in the video source list, and when no decoding, the status is gray and offline. To preview or decode the output, manually drag to the upper preview or output area to decode.
-
Page 6: Decoding Output Configuration
Note: Preview function should be working the latest version of Google and Edge browser; Browser preview does not support H.265 and video sources with B-frame encoding; when multiple IP addresses are configured, the preview is working by using the actual IP address of the device. 4. - Page 7 Note: One interface cannot correspond to the contents of two output windows, and if both SDI and HDMI are selected in one output window, it will output the same content. 6. Decode the playback buffer For a variety of different scenarios and networks, and to balance of real-time and smoothness while decoding, the device provides a variety of buffering strategies for users to choose from.
-
Page 8: Restore Factory Settings
7. Quick reset and reboot Quick reset：Used to reset the decoding service, typically to make modified parameters take effect immediately or to decode exceptions. The current decoding service is briefly interrupted during a quick reset and requires approximately 3S. Reboot：To decode the device to perform a hot restart, try the device restart if the device is not functioning well and still does not resolve the issue through a quick reset. - Page 9 The decoder supports online firmware upgrades to update the software version of the decoded device. Through the "System Settings" - "Firmware Upgrade" function of the WEB management interface, you can upload the firmware upgrade files provided by the manufacturer for the firmware online upgrade. After the firmware upgrade file uploaded successfully, the decoder will automatically restart the device for the upgrade, which will take approximately 1 to 3 minutes (depending on the memory of the firmware, the upgrade time varies),...
