Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2.Please do not tighten screws or bolts until the assembly is completed.
3. T o level the chairs or table, before tightening all the screws, the chairs or table must be placed on a
flat surface and then tighten the screws.
4. Please put all parts on a non-abrasive floor before assembly and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PARTS LIST
NO.
COMPONENT
SERVER
A
B
LEGS
Created date: 08/11/2023
Assembly Instructions
SKETCH
QTY
1PC
4PCS
MADE IN VIETNAM
ITEM NO. D4212-30

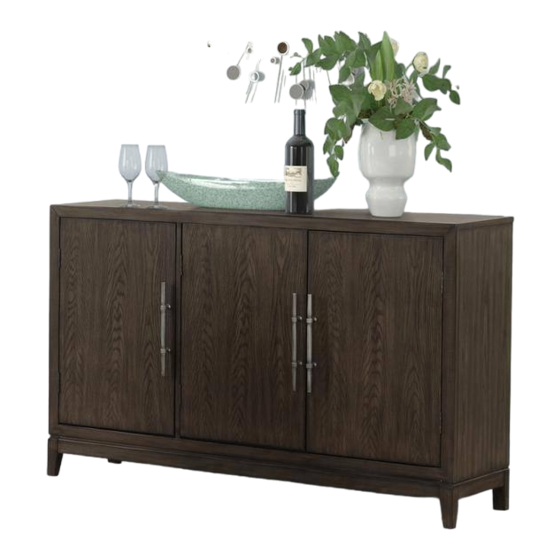

CITYSCAPE SERVER
(1 PC/CTN)
HARDWARE LIST
NO.
COMPONENT
FLAT WASHER
1
5/16" DIA.
SPRING
2
WASHER
5/16" DIA.
BOLT
3
5/16" x 2"
ALLEN
WRENCH
4
( 4mm )"
ANTI
5
TIPPING KIT
SKETCH
QTY
8 PCS
8 PCS
8 PCS
1 PC
1SET
PAGE: 1 OF 3
Advertisement
Related Manuals for New Classic Furniture CITYSCAPE D4212-30
Summary of Contents for New Classic Furniture CITYSCAPE D4212-30
- Page 1 Assembly Instructions ITEM NO. D4212-30 CITYSCAPE SERVER (1 PC/CTN) Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions ITEM NO. D4212-30 CITYSCAPE SERVER (1 PC/CTN) STEP 1 Place the server (A) upside down on a soft and clean surface. Assemble legs (B) to Server (A) one by one by using Allen wrench (4) with hardware 1, 2, and 3. *Attention: Fully tighten all the bolts.
- Page 3 Assembly Instructions ITEM NO. D4212-30 CITYSCAPE SERVER (1 PC/CTN) STEP 3 Anti- Tipping kit Wall Anti- Tipping kit must always be used to prevent the furniture from tipping. MADE IN VIETNAM PAGE: 3 OF 3...
