Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2.Please do not tighten screws or bolts until the assembly is completed.
3. To level the chairs or table, before tightening all the screws, the chairs or table must be placed on a
flat surface and then tighten the screws.
4. Please put all parts on a non-abrasive floor before assembly and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PARTS LIST
NO.
COMPONENT
A
CHAIR BACK
B
SEAT
RIGHT SIDE
C1
FACING (RSF)
LEG
LEFT SIDE
C2
FACING (LSF)
LEG
RIGHT SIDE
D1
FACING (RSF)
STRETCHER
LEFT SIDE
D2
FACING (LSF)
STRETCHER
Created date: 08/10/2023
Assembly Instructions
SKETCH
QTY
2PCS
2PCS
2PCS
2PCS
2PCS
2PCS
MADE IN VIETNAM
ITEM NO. D4212-20
CITYSCAPE DINING CHAIR
(2 PCS/CTN)
HARDWARE LIST
NO.
COMPONENT
FLAT WASHER
1
1/4" DIA.
SPRING
2
WASHER
1/4" DIA.
SHORT BOLT
3
1/4" x 1 1/2"
MEDIUM BOLT
4
1/4" x 2 5/32"
LONG BOLT
5
1/4" x 2 3/4"
ALLEN
WRENCH
6
( 4mm )"
WOOD SCREW
7
1/4" x 1 9/16"
QTY
SKETCH
20 PCS
20 PCS
4 PCS
8 PCS
8 PCS
1 PC
8 PCS
PAGE: 1 OF 3
Advertisement
Related Manuals for New Classic Furniture CITYSCAPE D4212-20
Summary of Contents for New Classic Furniture CITYSCAPE D4212-20
- Page 1 Assembly Instructions ITEM NO. D4212-20 CITYSCAPE DINING CHAIR (2 PCS/CTN) Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 ITEM NO. D4212-20 CITYSCAPE DINING CHAIR (2 PCS/CTN) STEP 1 STEP 2 Place the chair back (A) on a soft and clean surface. Assemble the front legs (C1) and ( C2) with the seat (B) by Assemble the seat (B) with the chair back (A) by using Allen using Allen Wrench (6) with hardware 1,2, and 4.

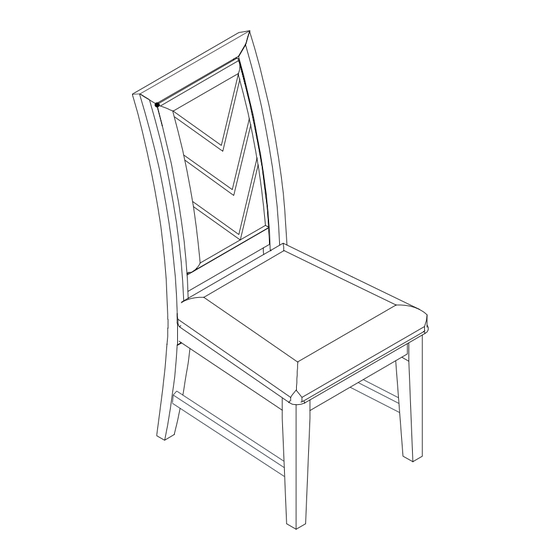

- Page 3 Assembly Instructions ITEM NO. D4212-20 CITYSCAPE DINING CHAIR (2 PCS/CTN) STEP 5 Repeat STEP 1 through STEP 4 to assemble the other chair. Fully Assembled Chair MADE IN VIETNAM PAGE: 3 OF 3...
