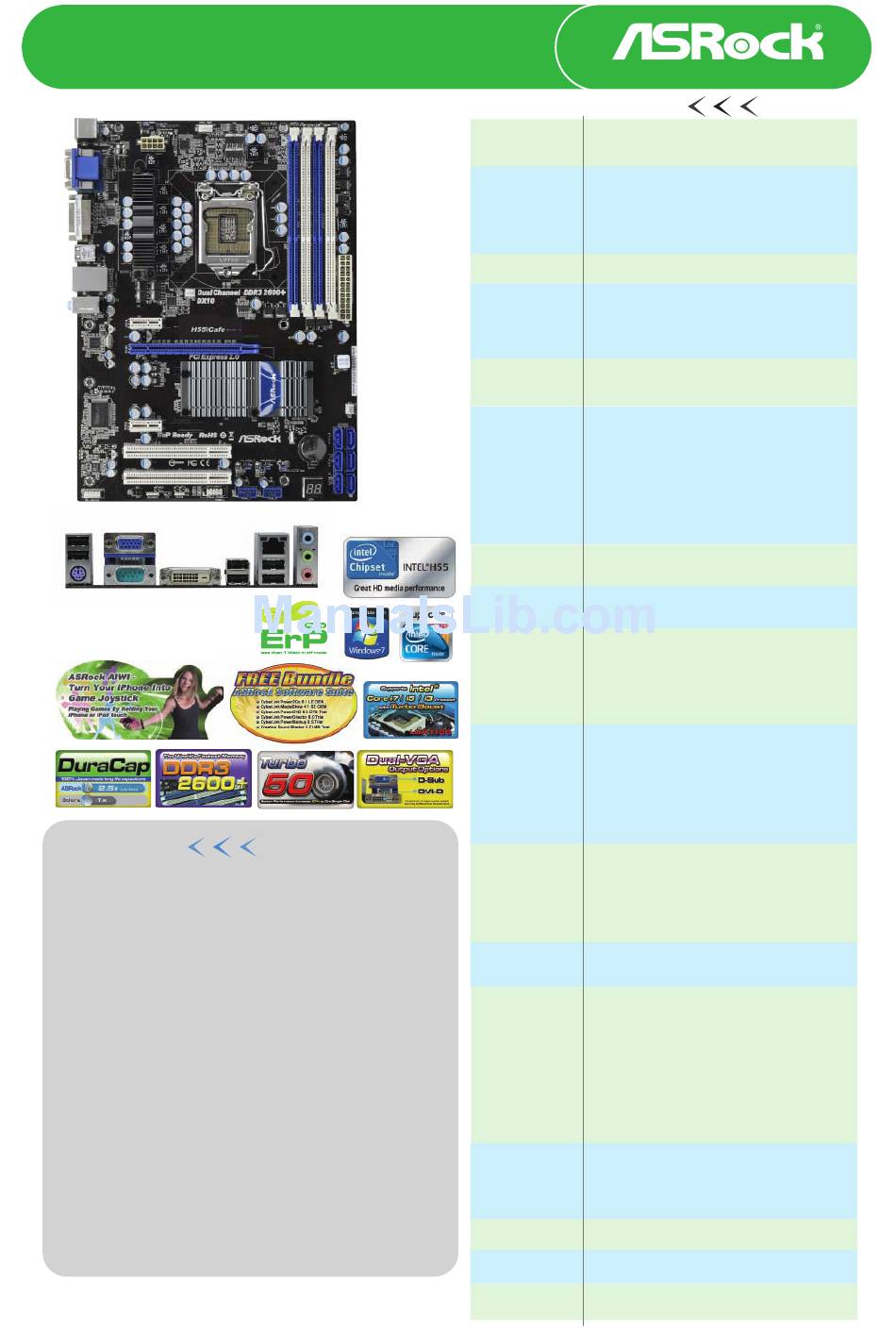

ASROCK H55ICAFE Brochure & Specs

H55iCafe
Intel H55 Chipset
®
Product Brief
- ASRock DuraCap (2.5 x longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Supports Dual Channel DDR3 2600+(OC)
- Dual VGA Output: DVI-D and D-Sub
- Turbo 50 Technology
- PCIE Gigabit LAN 10/100/1000 Mb/s,
Dr. Debug
- Supports ASRock Instant Boot, Instant Flash,
OC Tuner, IES, OC DNA, AIWI, APP Charger,
Good Night LED, Multi-Speed Fan Control
- ErP/EuP Ready
- Free Bundle : CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster
X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w. a s ro ck.c o m
Detail Specification
Platform
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Supports Intel
LGA1156 Package
- 4 + 1 Power Phase Design
- Supports Intel
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Intel H55
®
Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- Supports Intel
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
Expansion Slot
- 2 x PCI Express 2.0 x1 slots (2.5GT/s)
- 2 x PCI slot
* Requires Processor with Intel
Graphics *
- Intel HD Graphics
®
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Dual VGA Output: support DVI-D and D-Sub ports by independent
display controllers
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
port
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111C
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
functions
- 1 x IR header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
BIOS Feature
- 16Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU VID, CPU GFX, VCCM, SB, VTT, PCH_PLL Voltage
Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock AIWI
- ASRock APP Charger
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
- Turbo 50 / Turbo 100 Technology (Requires Processor with Intel
Graphics Technology)
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (Optional)
Core i7 / i5 / i3 and Pentium G6950 Processors in
