1.5 Components of the interior

1 Ground connector
2 Antenna-interfaces
3 USB-interface socket, type USB 3.1
4 USB-interface sockets, type USB 3.2
5 RJ45-interface socket, according PoE++
6 230 V AC power outlet
7 Appliance plug with integrated fuses F1 & F2 and switch S1
8 Antenna-interfaces
1 2

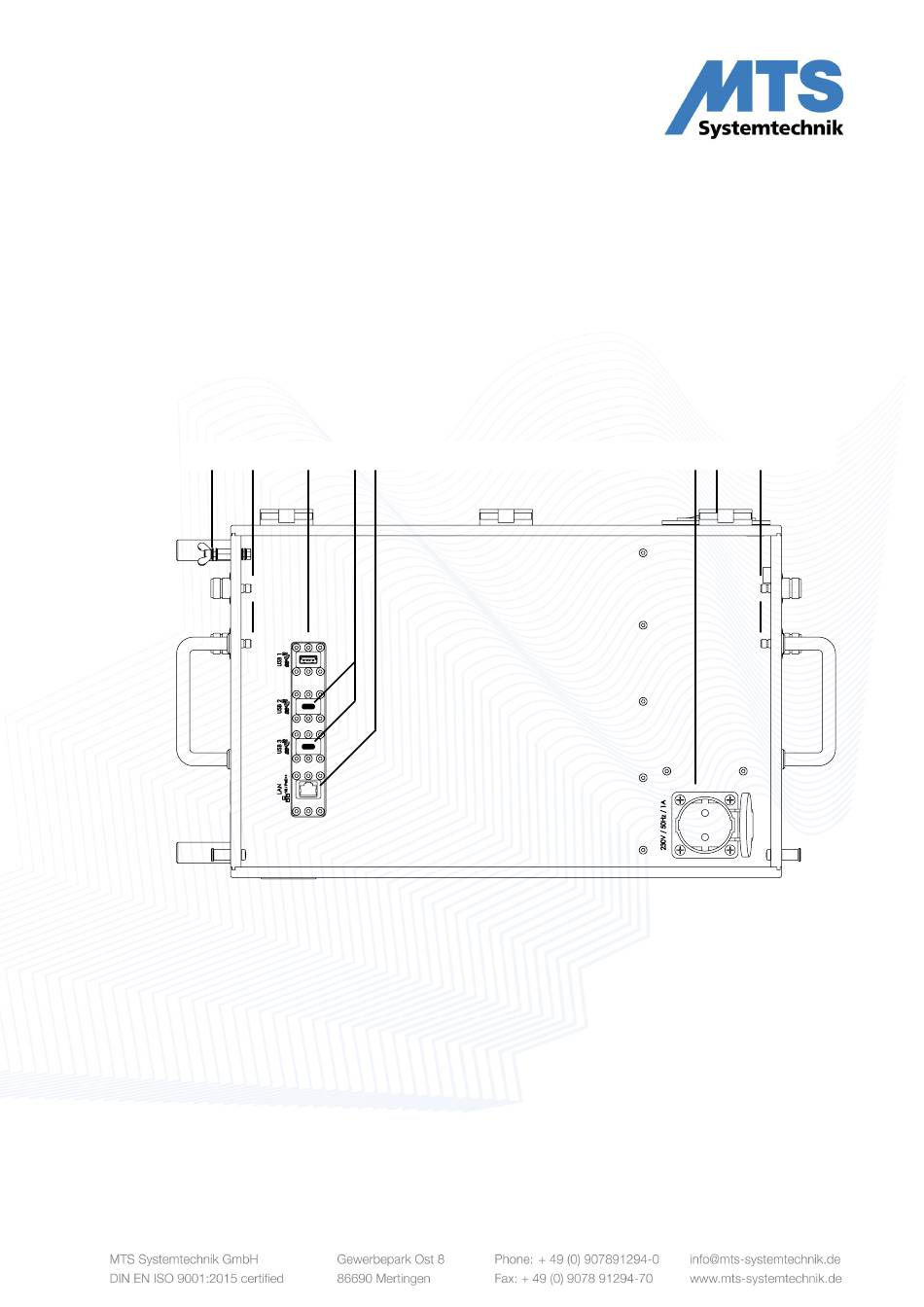

Illustration 2: Inner view MSB-0293
