ASROCK G41MH/USB3 Brochure & Specs

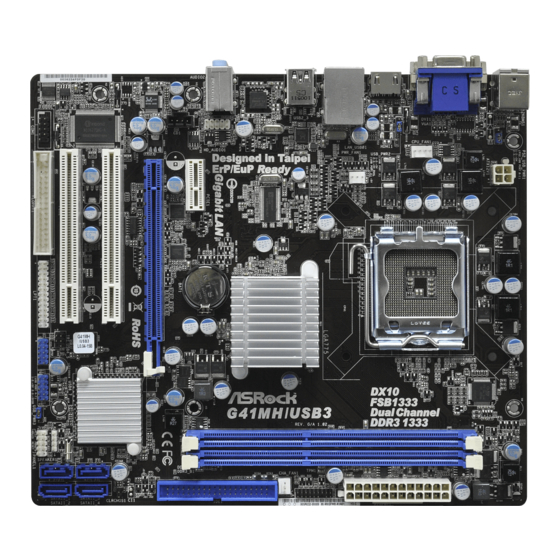

G41MH/USB3
Intel G41 + ICH7 Chipsets
®
Product Brief
- ASRock DuraCap (2.5 x longer life time), 100%
Japan-made high-quality Conductive Polymer
Capacitors
- Supports FSB1333/1066/800/533 MHz CPUs
- Supports Dual Channel DDR3 1333(OC)
- Intel Graphics Media Accelerator X4500,
®
DirectX 10, Pixel Shader 4.0
- Multi VGA Output options: D-Sub, DVI-D and
HDMI
- 1 x USB 3.0 port
- Supports ASRock Instant Boot, Instant Flash,
OC Tuner, Intelligent Energy Saver, OC DNA
- ErP / EuP Ready
- Free Software: CyberLink DVD Suite - OEM
and Trial; Creative Sound Blaster
X-Fi MB - Trial
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
www.as rock.com
Detail Specification
Platform
- Micro ATX Form Factor: 9.6-in x 8.4-in, 24.4 cm x 21.3 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- LGA 775 for Intel ®
/ Pentium Dual Core / Celeron
®
Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel
- Southbridge: Intel
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB
Expansion Slot
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Graphics
- Intel Graphics Media Accelerator X4500
®
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200
(1080P)
- Supports DVI with max. resolution up to 1920x1200 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI
and HDMI ports
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
- PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 3 x Ready-to-Use USB 2.0 Ports
- 1 x Ready-to-Use USB 3.0 Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
USB 3.0
- 1 x USB 3.0 port by Fresco FL1000G, supports USB 3.0 up to 5Gb/s
Connector
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug"
functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Print port header
- 1 x COM port header
- 1 x TPM header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- Supports I. O. T. (Intelligent Overclocking Technology)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software
Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster
X-Fi MB - Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (Optional)
Core TM 2 Extreme / Core TM 2 Quad / Core TM 2 Duo
Dual Core / Celeron , supporting
® ®
G41
®
® ICH7
7 / 7 64-bit / Vista / Vista 64-bit / XP / XP
® TM TM
