- Page 1 MXM-ACMA MXM Module User’s Manual 1 Last Updated: April 19, 2024...
- Page 2 Copyright Notice This document is copyrighted, 2024. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.
- Page 3 Acknowledgement All other products’ name or trademarks are properties of their respective owners. Microsoft Windows and DirectX are registered trademarks of Microsoft Corp. ⚫ Intel® Arc™ is a trademark of Intel Corporation ⚫ OpenCL and the OpenCL logo are trademarks of Apple Inc. ⚫...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity MXM-ACMA ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately. Preface...
- Page 5 About this Document This User’s Manual contains all the essential information, such as detailed descriptions and explanations on the product’s hardware and software features (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page on AAEON.com for the latest version of this document.
- Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.
- Page 7 If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii. Exposure to moisture Device is not working as expected or in a manner as described in this manual The device is dropped or damaged Any obvious signs of damage displayed on the device...
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ 连接器及线材 O：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下。 X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出...
- Page 10 China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products AAEON Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Hexavalent Polybrominated Polybrominated Component Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &...
-
Page 11: Table Of Contents
Table of Contents Chapter 1 - Product Specifications..................1 Specifications ........................2 Block Diagram ........................ 3 Chapter 2 – Hardware Information ..................4 Dimensions ........................5 Jumpers and Connectors ..................... 8 MXM-ACMA Jumper Settings (DG2) ................. 9 2.3.1 DP++ (SW1) ......................9 2.3.2 Gold Finger ...................... -
Page 12: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 13: Specifications

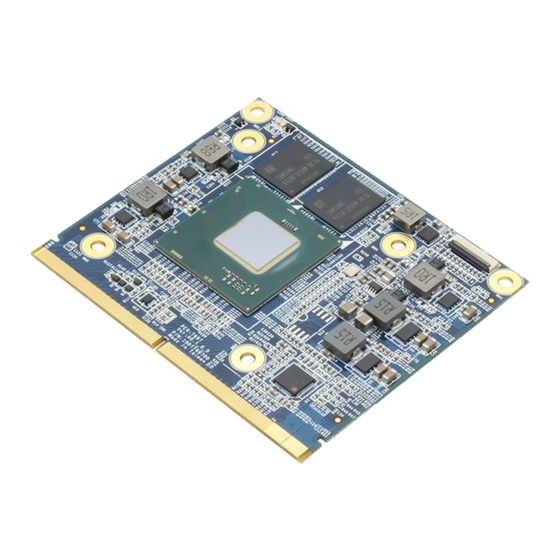

Specifications System Form Factor Standard MXM 3.1 Type A Form Factor Intel® Arc™ A370M GPU (8 X -cores, TGP 35W) Intel® Arc™ A350M GPU (6 X -cores, TGP 25W) Memory 4GB GDDR6, 64-bit, Bandwidth 112GB/s Display Interface DP++ 1.4 x 4 or HDMI 2.1 x 4 Dimension 3.2"... -
Page 14: Block Diagram
Block Diagram Chapter 1 – Product Specifications... -
Page 15: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information... -
Page 16: Dimensions
Dimensions Chapter 2 – Hardware Information... - Page 17 P/N: PER-T686-A02-0001 (PCIe to MXM Riser Card) Chapter 2 – Hardware Information...
- Page 18 With Fan (P/N: MXM-ACMA-FAN01) Chapter 2 – Hardware Information...
-
Page 19: Jumpers And Connectors
Jumpers and Connectors Top Side Bottom Side Chapter 2 – Hardware Information... -
Page 20: Mxm-Acma Jumper Settings (Dg2)
MXM-ACMA Jumper Settings (DG2) 2.3.1 DP++ (SW1) Pin Number HDMI HDMI HDMI HDMI 2.3.2 Gold Finger Pin Name Pin Name 7~20V 7~20V PCIE_WAKE# VR_RDY(reserve) PWR_EN Pull up tp 3.3V Pull down to GND TH_OVERT# PWM1_CTRL SMB_DAT SMB_CLK Chapter 2 – Hardware Information... - Page 21 Pin Name Pin Name PEG_TXN7 PEG_RXN7 PEG_TXP7 PEG_RXP7 Chapter 2 – Hardware Information...
- Page 22 Pin Name Pin Name PEG_TXN6 PEG_RXN6 PEG_TXP6 PEG_RXP6 PEG_TXN5 PEG_RXN5 PEG_TXP5 PEG_RXP5 PEG_TXN4 PEG_RXN4 PEG_TXP4 PEG_RXP4 PEG_TXN3 PEG_RXN3 PEG_TXP3 PEG_RXP3 PEG_RXN2 PEG_TXN2 PEG_RXP2 PEG_TXP2 PEG_RXN1 PEG_TXN1 PEG_RXP1 PEG_TXP1 PEG_RXN0 PEG_TXN0 PEG_RXP0 PEG_TXP0 PEG_CLK# PEX_CLK_REQ# PEG_CLK PERST-MXM Chapter 2 – Hardware Information...
- Page 23 Pin Name Pin Name DP_C_L0# DP_C_L0 DP_C_L1# DP_D_L0# DP_C_L1 DP_D_L0 DP_C_L2# DP_D_L1# DP_C_L2 DP_D_L1 DP_C_L3# DP_D_L2# DP_C_L3 DP_D_L2 DP_C_AUX-_DDCDAT DP_D_L3# DP_C_AUX+_DDCCLK DP_D_L3 DP_D_AUX-_DDCDAT DP_D_AUX+_DDCCLK Chapter 2 – Hardware Information...
- Page 24 Pin Name Pin Name DP_C_HPD DP_D_HPD DP_B_L0# DP_B_L0 DP_B_L1# DP_A_L0# DP_B_L1 DP_A_L0 DP_B_L2# DP_A_L1# DP_B_L2 DP_A_L1 DP_B_L3# DP_A_L2# DP_B_L3 DP_A_L2 DP_B_AUX-_DDCDAT DP_A_L3# DP_B_AUX+_DDCCLK DP_A_L3 DP_B_HPD DP_A_HPD DP_A_AUX-_DDCDAT 3.3V DP_A_AUX+_DDCCLK 3.3V Pull up to 3.3V Chapter 2 – Hardware Information...
-
Page 25: Per-T686 & Fan Installation
PER-T686 & Fan Installation Step 1: Chapter 2 – Hardware Information... - Page 26 Step 2: Chapter 2 – Hardware Information...
