Asus TPM-SPI Quick Start Manual

14-1 pin.
Hide thumbs


Advertisement

TPM-SPI (14-1 pin)
Using the TPM-SPI card
The TPM-SPI card securely store keys, digital certificates, passwords, and data. It helps enhance the
network security, protects digital identities, and ensures platform integrity.
The TPM-SPI card supports 64-bit Windows
To use the TPM-SPI card:
1.
Insert the TPM-SPI card to the SPI_TPM connector on your motherboard.
NOTE: The TPM module and BIOS share the same pin layout. The NC signal is used for the TPM-
SPI, while the BIOS signal is used for the motherboard.
Quick Start Guide
10 UEFI OS only.
®
E15028 / First Edition / November 2018

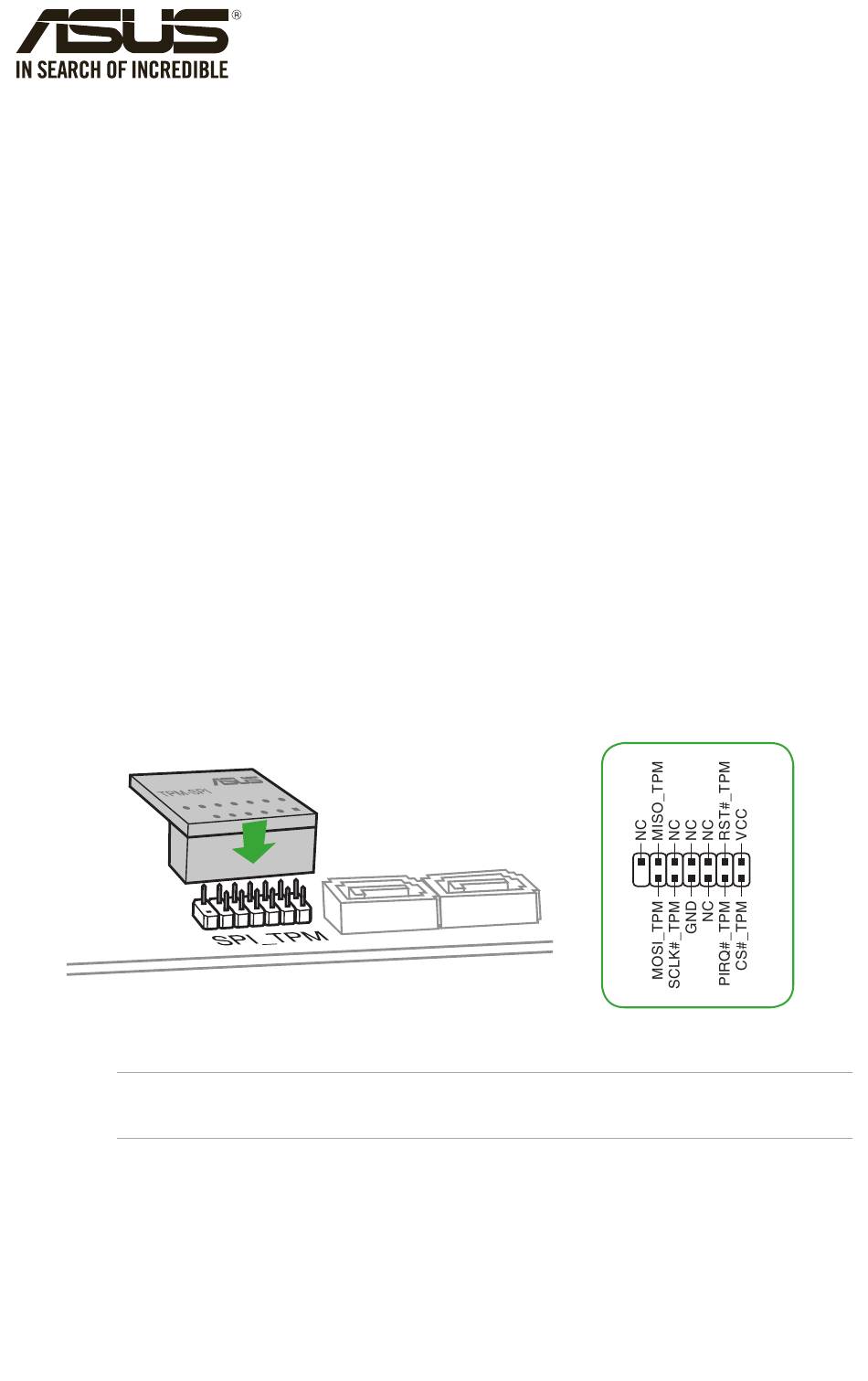

Pin definition:
PIN 1

Advertisement

Table of Contents

   Related Manuals for Asus TPM-SPI

   Summary of Contents for Asus TPM-SPI

  • Page 1 TPM-SPI (14-1 pin) Quick Start Guide Using the TPM-SPI card The TPM-SPI card securely store keys, digital certificates, passwords, and data. It helps enhance the network security, protects digital identities, and ensures platform integrity. The TPM-SPI card supports 64-bit Windows 10 UEFI OS only.
  • Page 2 F10: Save & Exit ESC: Exit Version 2.17.1246 Copyright (C) 2018 American Megatrends, Inc. Press <F10> to save the changes, exit the BIOS Setup program and boot into the OS. Now you can start using the TPM-SPI card with Windows BitLocker. ®...
  • Page 3 To clear from the BIOS: Launch the Trusted Computing BIOS screen. NOTE: For details, refer to steps 2-3 of the section Using the TPM-SPI card. Set the Pending operation item to [TPM Clear]. Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc.
  • Page 4 Clearing from the OS To clear from the OS: In the Windows Search box, key in tpm.msc and press <Enter>. The TPM Management screen ® appears. Under Actions, click Clear TPM... Click Restart to restart your computer.
