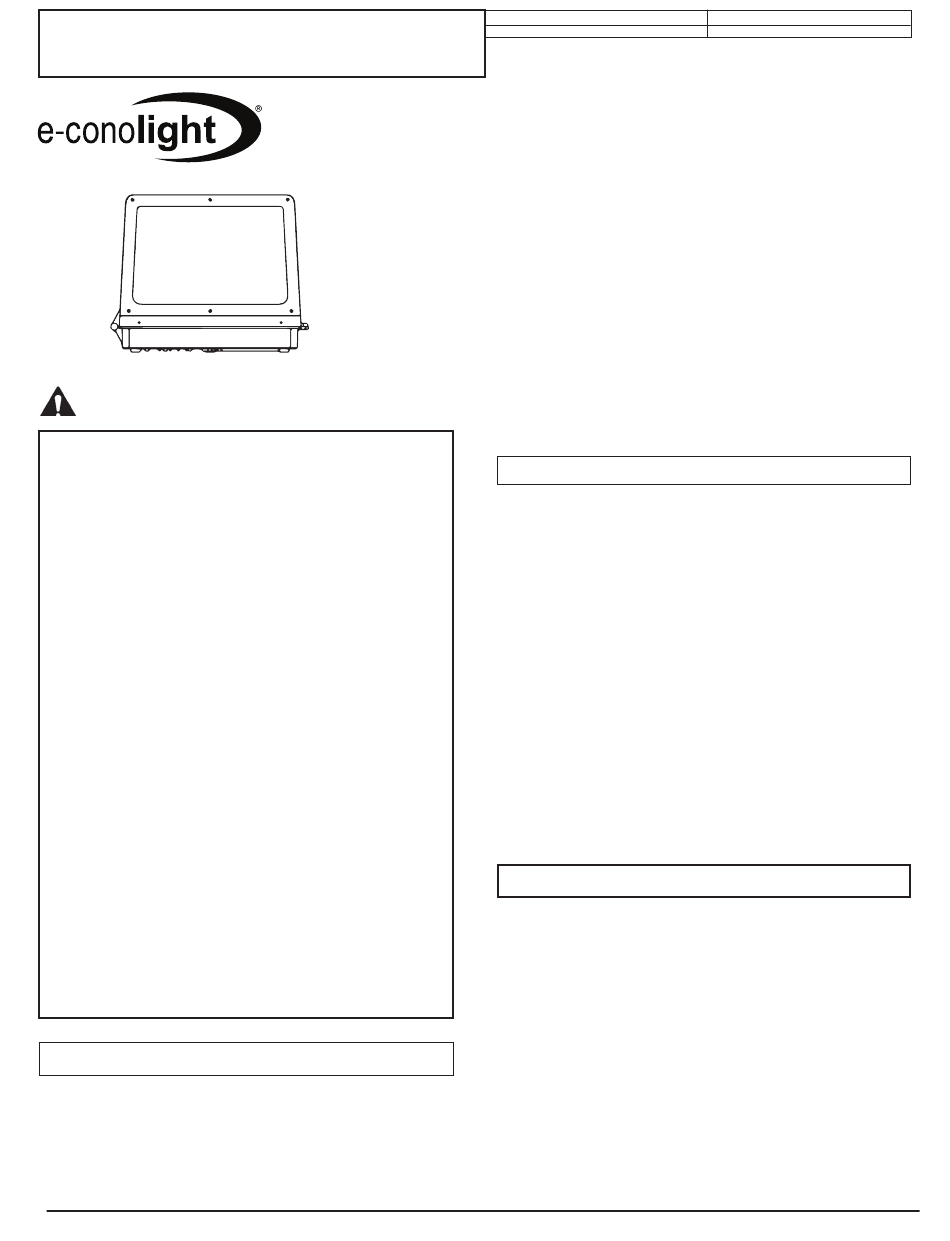

e-conolight E-WLT LARGE Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS
E-WLT LARGE Series
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This Product Must Be Installed In Accordance With The
Applicable Installation Code By A Person Familiar With
The Construction And Operation Of The Product And
The Hazards Involved.
Ce Produit Doit Être Installé Selon Le Code D'installation
Pertinent, Par Une Personne Qui Connaît Bien Le
Produit Et Son Fonctionnement Ainsi Que Les Risques
Inhérents.
3. Suitable for Wet Locations.
Adspte pour les Endroits Mouiles.
4. WALL MOUNT ONLY.
INSTALLATION MURALE SEULEMENT.
5. Suitable for maximum ambient of 40C.
Peut etre utilise pour maximum 40C temperature
ambiante.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
MOUNTING OVER RECESSED JUNCTION BOX
NOTE: Knockouts are provided for mounting over 3" octagonal, 4" oc-
tagonal, or 4" square junction boxes.
1. Remove lens assembly by loosening screws on side of frame. Do
not loosen tamper proof screws on hinge side of frame. Swing lens
assembly open,disconnect quick connect wiring connector(s) and
lift lens assembly upward to remove from housing.
following:
www.e-conolight.com
Document: LPN00666X0001A0_A
Created By:
TMT
2. Drill out appropriate knockouts in back box for attachment to junction
box. Also drill knockout for wiring access.
NOTE: Fixture should not be exclusively supported by junction
box. Drill additional knockouts toward corners of fixture to provide
additional support. Do NOT drill within 1/4" (64 mm) from edges of
fixture.
3. Pull supply leads from junction box through wall of back box. Attach
back box to mounting surface using hardware (supplied by others)
appropriate for mounting surface.
NOTE: A high grade caulking material such as silicone rubber, should
be used around perimeter of back box to prevent water leakage into
fixture or junction box.
4. Make wiring connections per the Electrical Connections section.
5. Replace the lens assembly on hinges, re-connect quick-connect
wiring connectors, and swing lens into place. Re-tighten screws that
were loosened in Step 1.
WALL MOUNTED WITH CONDUIT FEED
1. Remove lens assembly by loosening screws on side of frame. Do
not loosen tamper proof screws on hinge side of frame. Swing lens
assembly open,disconnect quick connect wiring connector(s) and lift
lens assembly upward to remove from housing.
2. Drill knockouts in lower two corners and center top of back box to
allow for attachment of back box to mounting surface.
3. Attach back box to mounting surface using hardware (supplied by
others) appropriate for mounting surface.
NOTE: A high grade caulking material such as silicone rubber, should
be used around perimeter of back box to prevent water entry.
4. Remove appropriate threaded plugs on sides of fixture and route
electrical conduit to the holes desired. Feed the supply leads through
the conduit and into the back box.
NOTE: Use of teflon tape on the conduit threads will ensure a
watertight seal.
5. Make wiring connections per the Electrical Connections section.
6. Replace the lens assembly on hinges, re-connect quick-connect
wiring connectors, and swing lens into place. Re-tighten screws that
were loosened in Step 1.
ELECTRICAL CONNECTIONS
Fixture is equipped with universal volt driver 120-277V
(ie. 120V, 208V, 240V or 277V)
PHASE TO NEUTRAL WIRING 120/277V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply common to fixture neutral (white) lead.
3. Connect supply Vin to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no wires
are pinched.
PHASE TO PHASE WIRING 208/240V
1. Connect supply ground to fixture ground (green) lead.
2. Connect supply L1 (Hot) to fixture neutral (white) lead.
3. Connect supply L2 (Hot) to fixture hot (black) lead.
Tuck all wires carefully into wiring chamber ensuring that no wires
are pinched.
| 888.243.9445 | FAX: 262.504.5409
Date 09-25-2019
ECO#
011046
