e-conolight E-DD0L40 SERIES Installation Instructions Manual

INSTALLATION INSTRUCTIONS
LED E-DD0L40 SERIES
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. SUITABLE FOR WET LOCATIONS.
CONVIENT AUX EMPLACEMENTS MOUILLES.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE

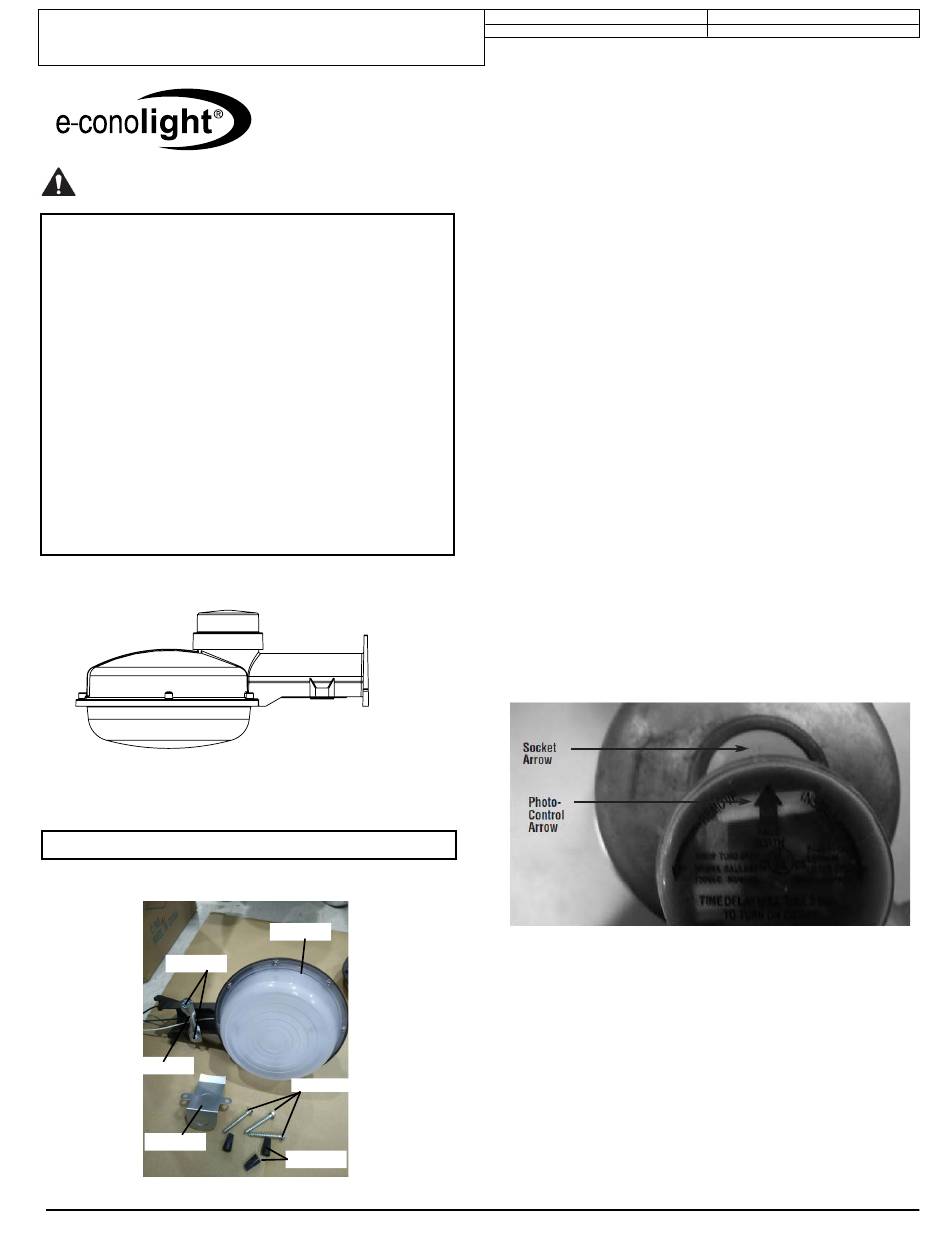

FIGURE 1
E-DD0L SERIES-
DIRECT MOUNTED
DIRECT MOUNTING
FIGURE 2- Items Included with Fixture
Hex Bolts
Arm Bracket
Cover Plate
following:
Fixture
Lag Bolts
Wire Nuts
www.e-conolight.com
Document: LPN00370X0001A0_A
Created By: TMT
1. Install fixture cover plate to conduit using either knockout.
2. Use fixture to mark the location for the lag bolts on
mounting surface.
3. Install two lower lag bolts into mounting surface, allowing
the head of each bolt to remain 1/4" (6.4 mm) from
mounting surface.
4. Wire black fixture lead to the incoming voltage supply
or Hot 1 lead and the white fixture lead to the incoming
neutral (Common) or Hot 2 lead. Attach bare copper or
green ground fixture lead to the incoming ground lead.
5. Slide fixture onto two lag bolts from Step 3 and install third
lag bolt in top slot of fixture. Secure all lag bolts.
6. Secure cover plate with (2) hex bolts. Discard arm bracket.
7. Install the photo-control by aligning the arrow on the top
of the photo-control with the arrow on the photo-control
socket and inserting pins into the socket. Twist photo-
control clockwise until the arrow on the photocontrol is
pointing north. (Photocontrol must be rotated at least 1/8
turn to properly lock in place). See Figure 3.
NOTE: Improper installation of the photo-control may result
in damage to the photo-control.
FIGURE 3- Photo-control Installation
| 888.243.9445 | FAX: 262.504.5409
Date
2018-4-24
ECO# 009113
