e-conolight E-E-MT6F421G Installation Instructions

INSTALLATION INSTRUCTIONS

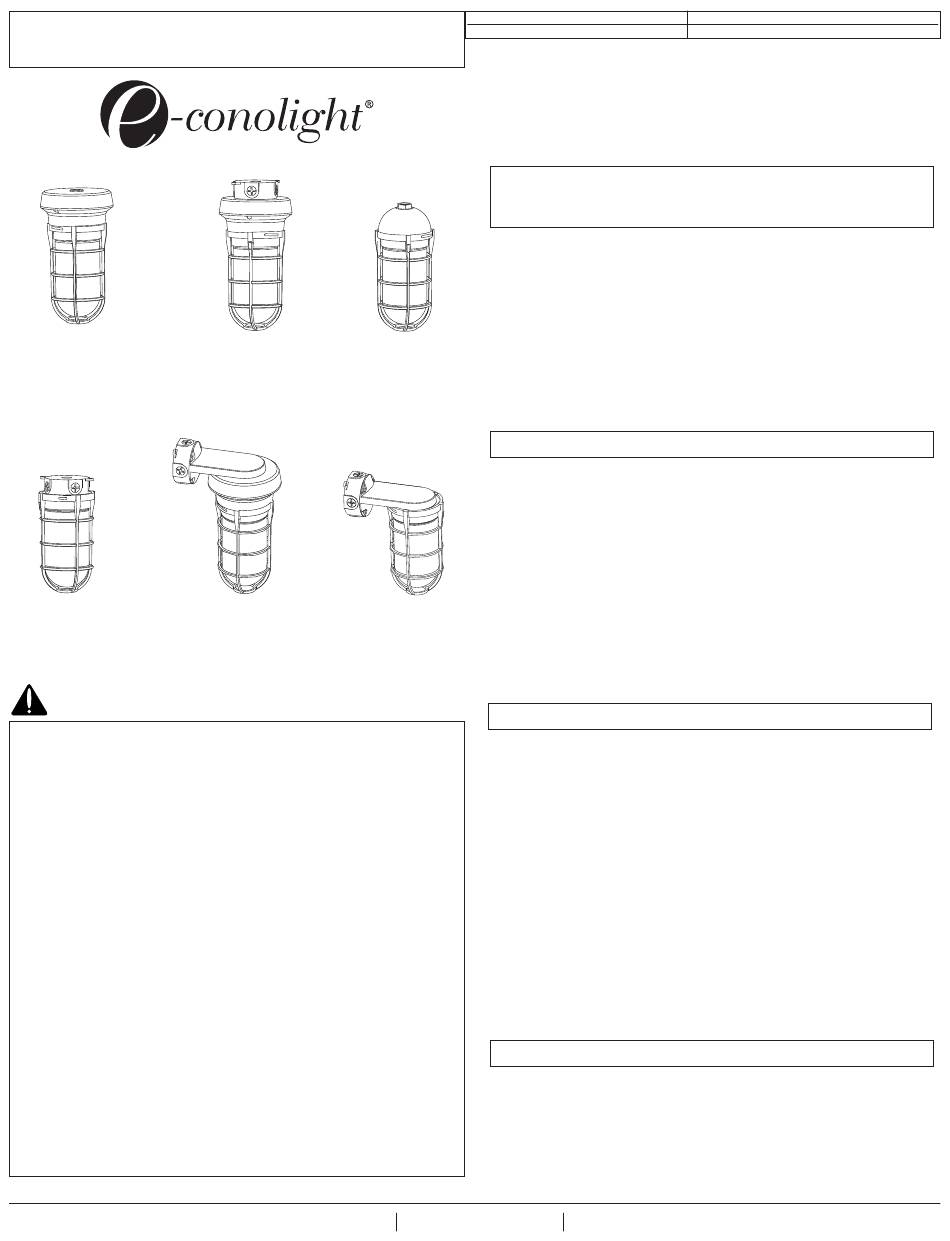

E-MT5, E-MT6, AND E-MT7 SERIES
E-MT6F421G
E-MT6M07DG
E-MT5M07DG
E-MT6H151G
E-MT5A301G
E-MT7F421G
E-MT7M07DG
E-MT7H151G
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. Make certain power is OFF before starting installation or
attempting any maintenance.
2. Fixture comes standard with a HOT, COMMON and GROUND
wire or ground lug.
3. 90°C supply wire required for E-MT5A301G. All others require
60°C supply wire.
4. Mounting locations above 4 feet (1.2 meters), caulking of
canopy to mounting surface and fixture must not be used
without lamp shields
SAVE THESE INSTRUCTIONS
Turn off power supply to avoid the risk of electrical shock. This
product must be wired in accordance with the National Electrical
Code and applicable local codes and ordinances. Proper grounding
is required to ensure personal safety. A qualified electrician should
do all work.
w w w. e - c o n o l i g h t . c o m
E-MT6A301G
E-MT5F421G
E-MT5H151G
E-MT7A301G
Document CI308X10R1
Drawing/Page JAD
MOUNTING TO CONDUIT PENDANT MOUNTING
1. Remove (3) screws connecting the pendant mounting/ballast
cover to the fixture housing.
2. Thread the pendant mounting cover onto the conduit.
3. Complete the wiring to the power source (refer to wiring
instructions)
4. Seal around the conduit using approved NEC procedures.
5. If necessary, align gasket with holes in fixture housing.
6. Reinsert and tighten (3) screws connecting the pendant mounting
cover to the fixture housing.
CEILING MOUNTING (E-MT5 SERIES)
1. Remove (3) screws connecting the ballast cover to the
fixture housing.
2. Remove (2) screws connecting the ballast cover to the J-box.
3. Attach the J-box to the mounting surface.
4. Attach conduit to J-box and pull leads to the box.
5. Seal around the conduit using approved NEC procedures.
6. Complete the wiring to the power source (refer to
wiring instructions.)
7. Reassemble fixture by reversing steps 1 & 2.
NOTE: Make sure to properly align gasket between the ballast
cover and fixture when reassembling.
WALL MOUNTING (E-MT7 SERIES)
1. Remove (3) screws connecting the ballast cover to the fixture
housing.
2. Remove (2) screws connecting the ballast cover to the
Mounting Arm.
3. Remove (4) screws connecting the mounting arm to the J-box.
4. Attach the J-Box to the mounting surface.
5. Attach conduit to J-box and pull leads to the box.
6. Seal around the conduit using approved NEC procedures.
7. Complete the wiring to the power source (refer to
wiring instructions).
8. Reassemble fixture by reversing steps 1, 2 & 3.
NOTE: Make sure to properly align gaskets between the
mounting and ballast cover and between the ballast cover
and fixture when reassembling.
1. Loosen guard set screws.
2. Remove globe and guard assembly.
3. Install recommended lamp only.
4. Re-install globe and guard assembly.
5. Tighten guard set screws.
