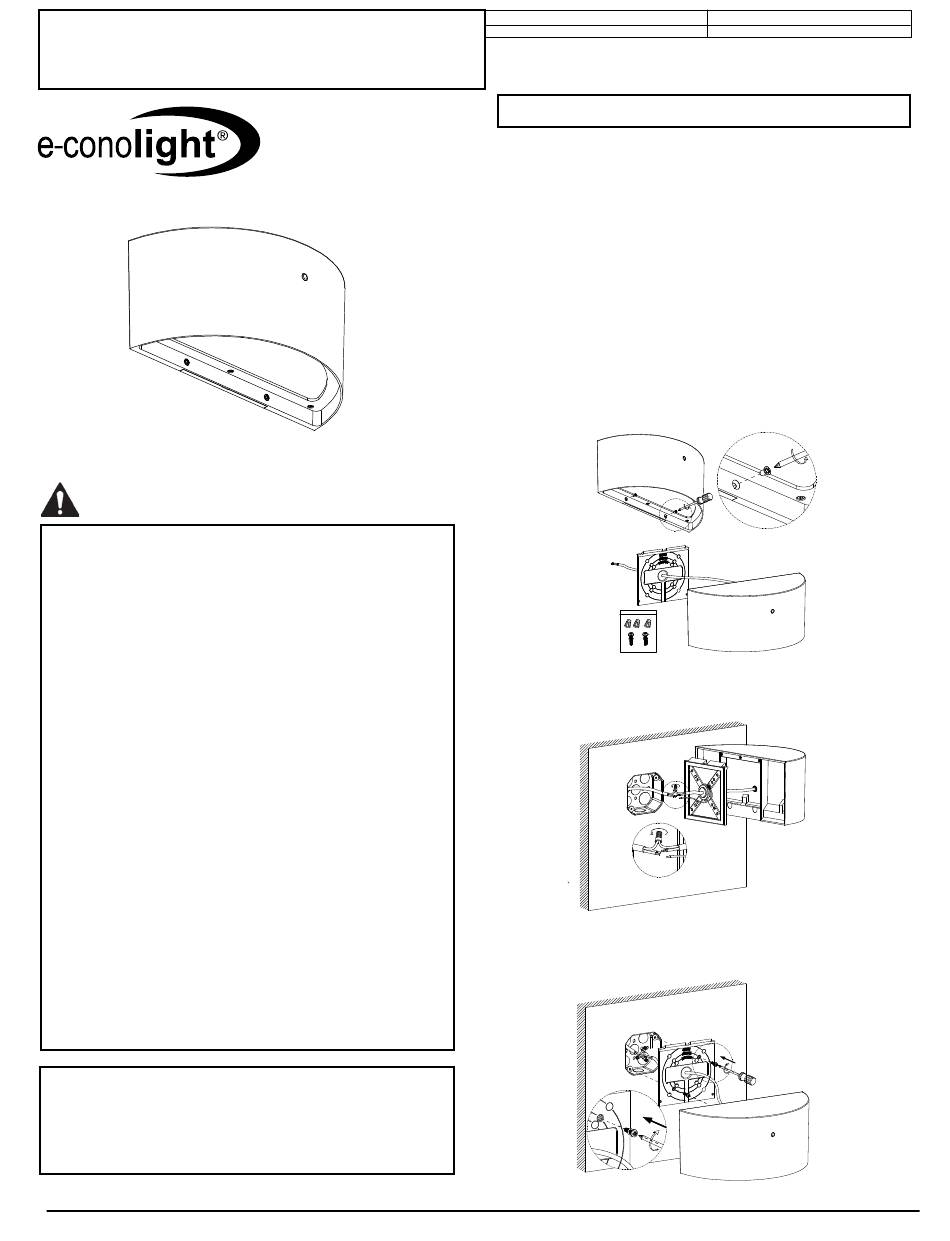

e-conolight E-RS Series Installation Instructions

INSTALLATION INSTRUCTIONS
LED Radial Wall Sconce
E-RS Series

CAUTIONS

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety
precautions should always be followed including the
following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. Wall Mount Only.
Installation Murale Seulement.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Notes:
1. Fixture is intended to operate at 120-277 VAC only.
2. Fixture is intended to be mounted over 3 1/2" or 4" octagon
recessed junction box or 4" square junction box, supplied by
customer.
www.e-conolight.com |
Document: LPN00320X0001A0_A
Created By:
TMT

DIRECT MOUNTING TO JUNCTION BOX

1. Remove the rear mounting plate by removing the (2) Phillips head
screws located on the lower flange of fixture. Do NOT pull cord out
of grommet in mounting plate. See Figure 1.
2. While supporting fixture and mounting plate, splice the power
leads from the cord to the branch circuit leads in the junction box.
Attach black to black (hot), white to white (neutral) and green to
green (ground). Push the splices into the junction box. See Figure
2.
3. Remove only two appropriate plugs from the back plate for
mounting over the corresponding junction box. Leave all other
plugs in place.
4. Attach the rear mounting plate to the junction box using supplied
screws and o-rings. For wet locations, caulk between rear gasket
and mounting surface to prevent water from entering junction
box area. A high grade caulking material such as silicone rubber
should be used. See Figure 3.
FIGURE 1
FIGURE 2
FIGURE 3
888.243.9445 | FAX: 262.504.5409
Date 2015-12-22
DCR#
005842
