e-conolight E-WFS Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS
E-WFS Series
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. Suitable for Wet Locations.
Adspte pour les Endroits Mouiles.
4. WALL MOUNT ONLY.
INSTALLATION MURALE SEULEMENT
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
www.e-conolight.com |
Document: LPN00662X0001A0_A
Created By:
TMT
MOUNTING OVER JUNCTION BOX
1. Remove the quick mount bracket from the fixture base by
loosening the two set screws. See Figure 1.
2. Install the quick mount bracket on a junction box at the intended
location using hardware supplied with junction box. Make sure
arrow on the bracket is pointing up. A high grade caulking
material, such as silicone rubber, should be used between gasket
on bracket and mounting surface.
NOTE: The bubble level on the quick mount bracket can be used
to ensure the bracket is mounted level.
3. Pull supply leads through center hole in quick mount bracket.
4. Attach the aircraft cable hook from the fixture base to the center
hole in the quick mount bracket to support the fixture.
5. Make wiring connections per the Electrical Connections section.
6. While holding fixture, remove aircraft cable from the fixture base
by removing screw holding cable in place. Discard cable and hook.
7. Attach fixture base to the quick mount bracket by hooking top
of bracket into the angled bracket on the back side of the fixture
base. Next, lower the fixture until base sits flush with mounting
surface.
8. Secure the fixture base to the quick mount bracket by tightening
two set screws on bottom of the fixture base.
9. Apply a high grade caulking material, such as a silicone rubber,
between the fixture base and the mounting surface. Make sure
caulking material is also applied at the set screw locations.
MOUNTING USING SURFACE CONDUIT (REQUIRES
USE OF E-ACSBWFZ ACCESSORY)
1. Remove the quick mount bracket from the fixture base by
loosening the two set screws. See Figure 1. Properly discard the
quick mount bracket.
2. For attachment of box to mounting surface, drill (2) 9/32" (8mm)
holes in opposite corners on the back surface of the surface
mounting box accessory (E-ACSBWFZ) for use with 1/4" (7mm)
fasteners. Do NOT drill holes within 1/4" (7mm) of the edge on the
surface mounting box
3. Attach surface mounting box to mounting surface using 1/4"
(7mm) fasteners appropriate for mounting surface. Angled side of
surface mounting box must be positioned facing up and down (on
vertical axis of box). See Figure 2 on back page.
NOTE: A high grade caulking material, such as a silicone rubber,
should be used around perimeter of mounting box between back
surface of box and the mounting surface to ensure a watertight
enclosure.

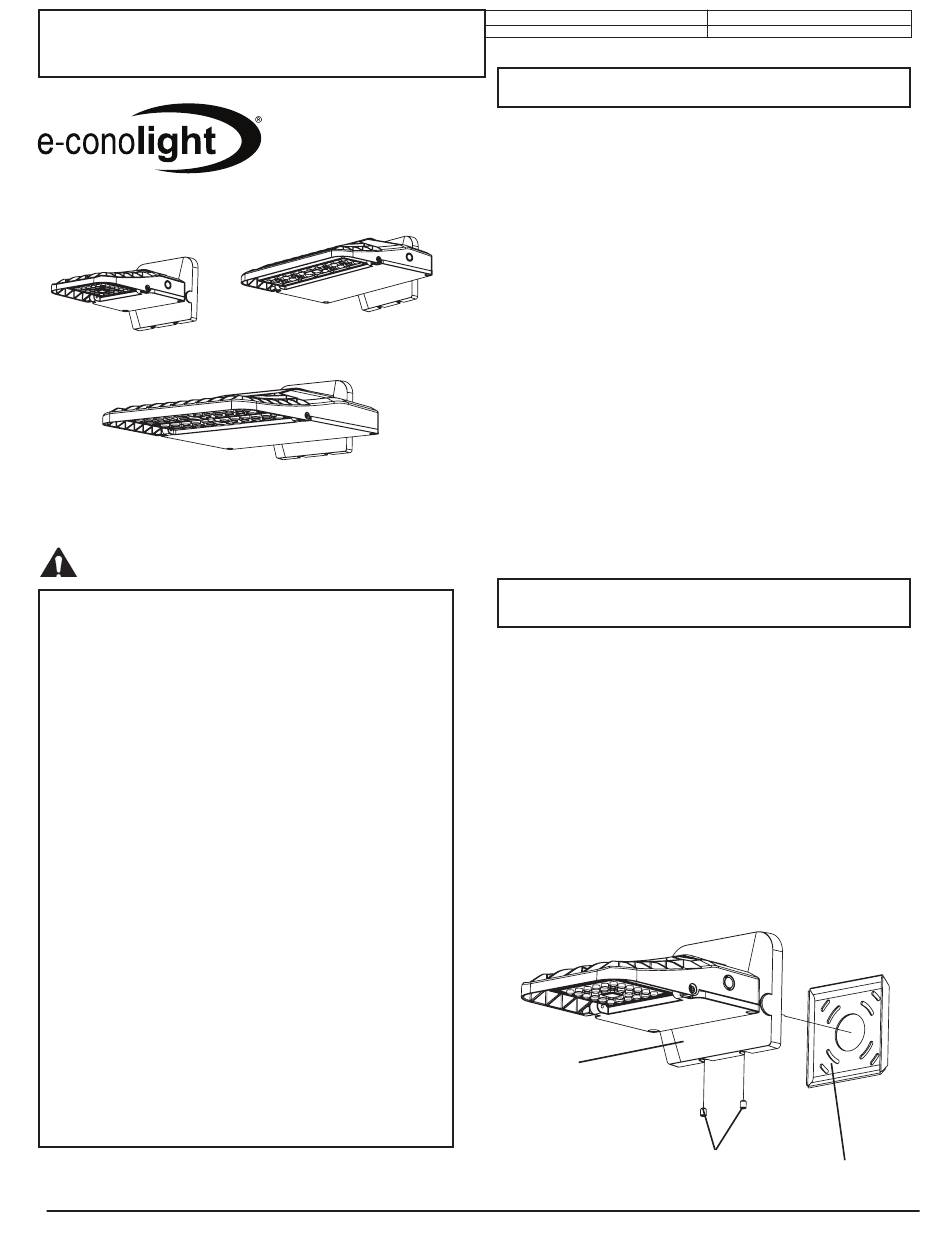

FIGURE 1
Fixture Base
888.243.9445 | FAX: 262.504.5409
Date 9-16-2019
ECO#
011012
Set Screws
Quick Mount
Bracket
