Sealey VS2078 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general
‰
workshop practice regulations are adhered to when using tools.
WARNING! Always use caution when working around fuel systems.
‰
The fuel in the fuel rail may be pressurised even if the engine is not running. These instructions are provided as a guide only. Always
refer to the vehicle manufacturer's service instructions, or a proprietary manual, to establish the current procedure and data, also any
warnings or cautions particular to the vehicle.
DO NOT use the set if any parts are missing or damaged.
8
DO NOT use this tool for any purpose other than that for which it is designed.
8
Switch off vehicle's ignition and disconnect the battery before commencing work under the bonnet.
9
You must follow the vehicle's service manual cautions when working around the air bag system. If the cautions are not followed the air
9
bag may deploy unexpectedly even after the ignition is turned 'OFF', resulting in personal injury.
DO NOT lay tools on the vehicle's battery. This may short the terminals together, causing harm to yourself, the tools, or the battery.
8
Operate in a well ventilated area. DO NOT inhale fuel vapours.
9
Wear approved eye protection.
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9
Keep children and other unauthorised persons away from the working area.
9
Keep yourself, tools, and test equipment away from hot engine parts.
9
Always keep a fire extinguisher that is suitable for fuel/electrical/chemical fires close by,
9
DO NOT smoke or have open flames near vehicle.
8
Always relieve fuel pressure before disconnecting fuel lines from injectors.
9
Use a cloth to cover fuel line fittings when connecting or disconnecting fuel lines. Avoid contact with fuel.
9
Clean up all fuel spills immediately and dispose of all used cloths properly.
9
Maintain the tool components in good and clean condition for best and safest performance.
9
When work on the vehicle is finished, ensure all connections on vehicle are restored, and that there are no tools left in the engine bay.
9
Replace tools in the carrying case and store in a safe, dry, childproof location.
9
2. INTRODUCTION

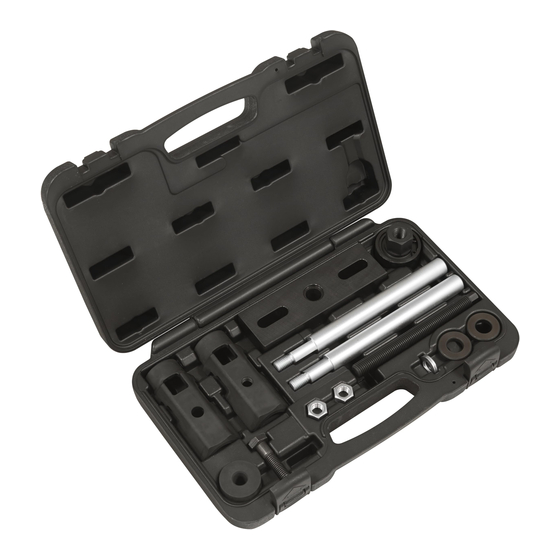

Suitable for Ford EcoBlue 2.0L engines. Easily extracts Ford EcoBlue diesel injectors in one piece so they can be refitted. The set includes a
force screw, shoulder nut (with bearing), injector clamp, clamp bolt, support bridge and bridge legs with nuts (x2). Equivalent to OEM 303-1706.
3. CONTENTS
© Jack Sealey Limited
SEALEY DIESEL INJECTOR PULLER - FORD
ECOBLUE 2.0L
MODEL NO:
Wear protective
gloves
Original Language Version
VS2078
DO NOT USE AIR TOOLS
TO OPERATE FORCE SCREW
ALWAYS KEEP FORCE SCREW
WELL LUBRICATED. MOLYBDENUM
COPPER BASED RECOMMENDED.
VS2078 Issue 1 01/02/2024
