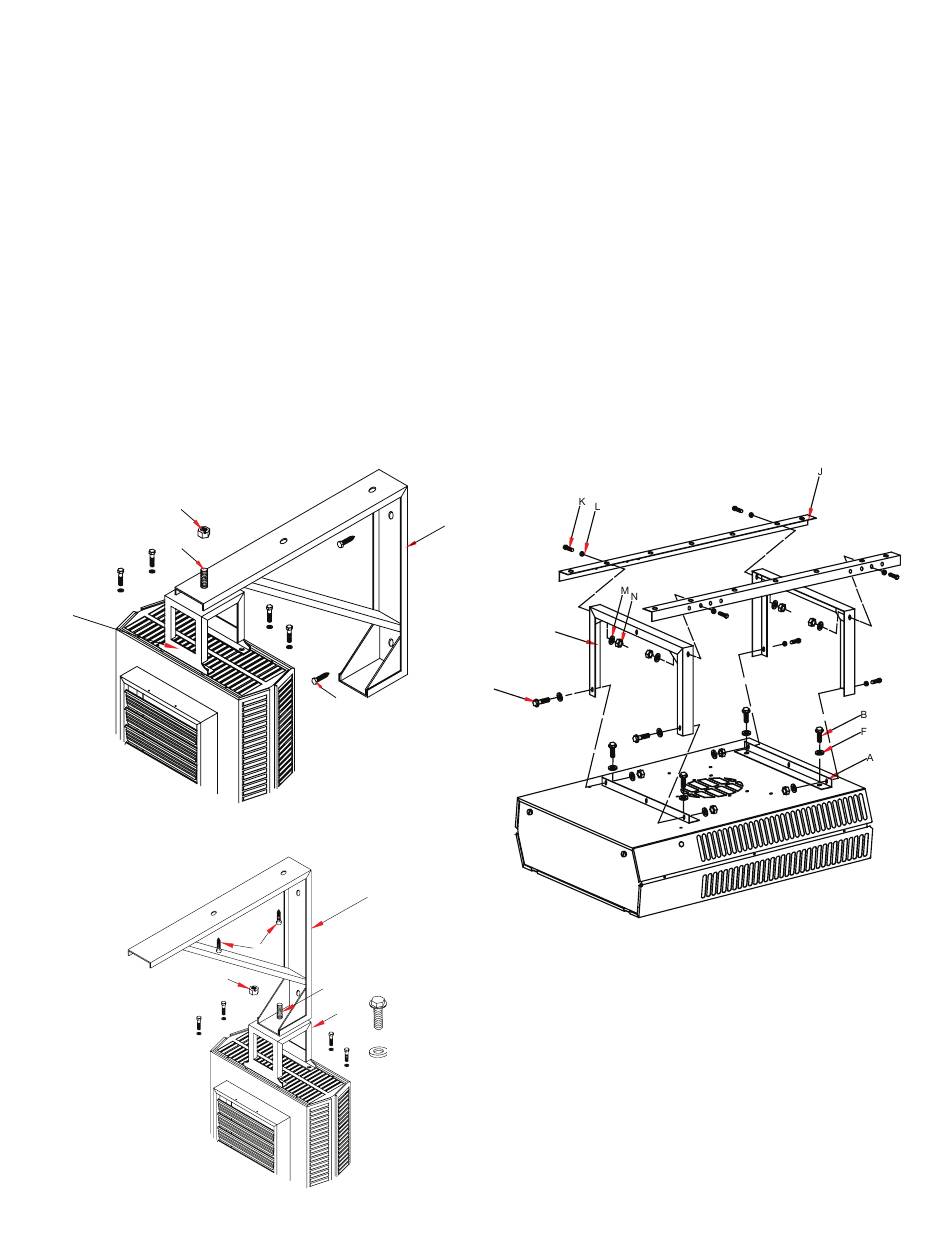

HORIZONTAL -- AIR DISCHARGE MOUNTING
SHOWN IN: FIGURE 5 & 6
Swivel hanger brackets may be used to suspend unit heaters from either
the wall (figure 5) or the ceiling (figure 6). Attach hanger base "A" to top of
heater with the four 5/16 X 18 caps screws and lockwashers (provided in
envelope).
Attach main hanger frame "B" to wall or ceiling in desired location using lag
screws "C" or other suitable attachments (supplied by others).
Lift heater into position inserting stud "D" through hole in main hanger frame
and attach lock nut "provided in envelope) "E" tightening to within two turns
of being tight.
Swivel heater to desired position, tighten lock nut.
VERTICAL -- AIR DISCHARGE MOUNTING
Figure 5
WALL MOUNT
HORIZONTAL DISCHARGE
E
D
A
Figure 6
CEILING MOUNT
HORIZONTAL DISCHARGE
E
INSTALLATION INSTRUCTIONS
TASKMASTER -- 5100 SERIES UNIT HEATER (part 2)
C
B
C
D
A
SHOWN IN: FIGURE 7
Attach short angle brackets "A" to back of heater with four 5/16 X 18
capscrews "B", lockwashers "F". Be sure vertical leg of angle brackets face
top and bottom of heater.
Attach inverted U frames "D" to short angle brackets with four 5/16 X 18
capscrews "K", washers "L", lockwashers "M" and nuts "N".
Attach long angle brackets "J" to inverted frames "D" with four 5/16 X 18
capscrews "K", washers "L", lockwashers "M" and nuts "N".
Attach heater and bracket assembly to ceiling in desired location using
customer supplied equipment sufficient to support the assembly.
Figure 7
CEILING MOUNT
VERTICAL DISCHARGE
B
D
F
NOTE: When mounting heater using 5/16" all thread rod (by others) do not
screw the rod more than 1/2" beyond the inside of the case.
6 of 20
ECO 1-7874
REV. 10/22
FORM: 9632
