ATTENTION: READ INSTRUCTION CAREFULLY
All electric unit heaters are shipped fully assembled. Installation includes
hanging the unit, mounting the built-in and remote accessories, wiring of
optional control devices, and electrical wiring to the unit.
To insure proper delivery of the heated air to desired areas, follow the
mounting height and air projection tables include in these instructions.

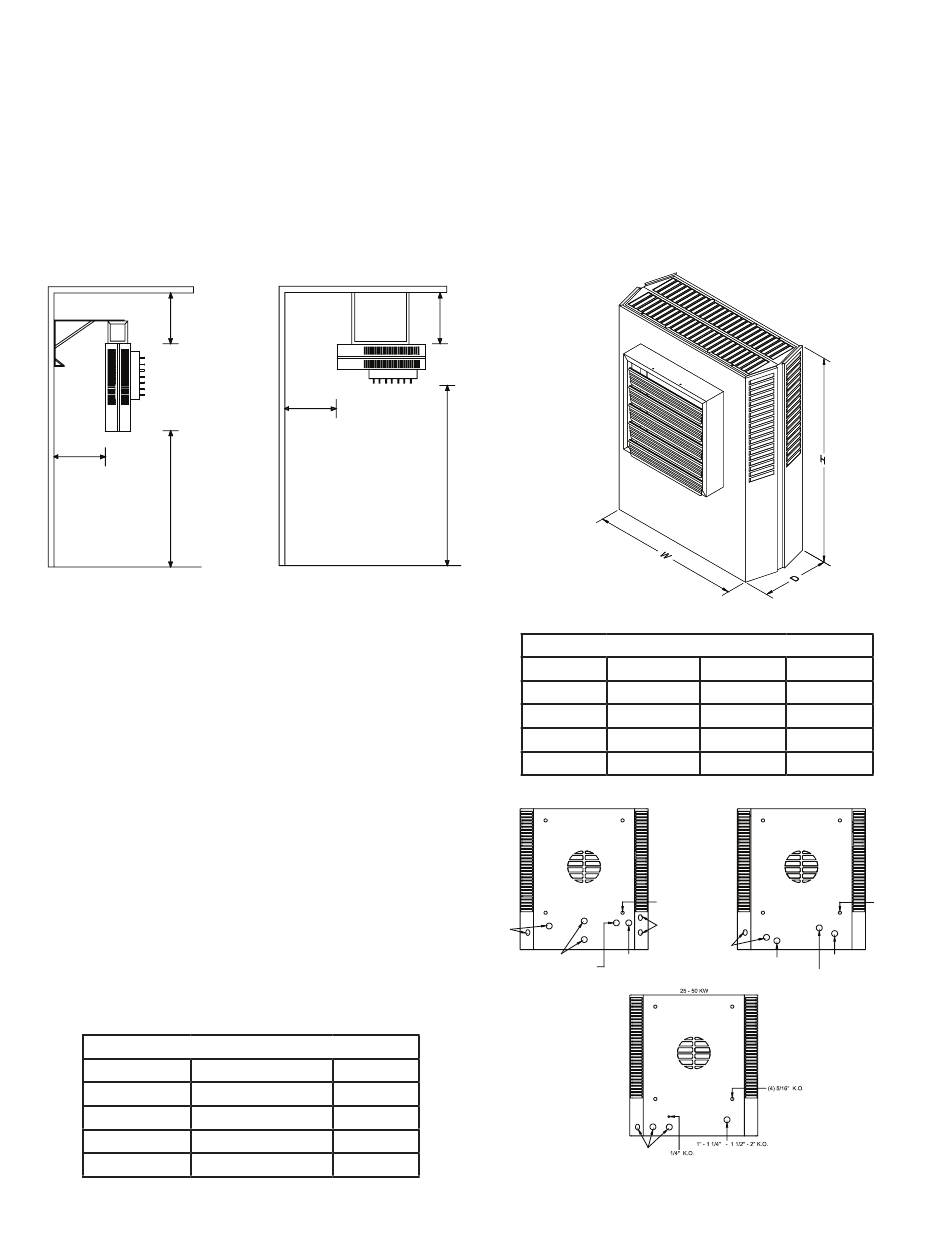

Follow Fig. 1 & 2 for minimum wall and ceiling clearances.
MO UN TI NG
CL EA RA NC E
12"
12"
7'
FI G. 1
HO RI ZO NT AL D IS CH AR GE
The wall and/or ceiling structure must be sufficient to support the combined
weight of the heater and any mounting bracket and accessories.
Be sure power source is deenergized before installing heater. Check heater
voltage and phase listed on heater date tape on back of unit to make sure
they are the same as the electrical service supplied.
Certain units are convertible from single to three phase service. Follow
instructions noted on the unit wiring diagram for this conversion. Units
that carry a dual voltage rating (HF) require specific wiring changes when
converting from 240 to 208 volt service supplied.
Open the access panel (2 1/4 turn fasteners).
Remove the desired knock-out(s) on back of the heater.
Install any optional accessories following their installation instructions
before mounting unit. Following the correct unit/accessory wiring diagram,
connect the power supply, electrical ground and accessories to the correct
terminals or termination points using accepted practices.
NET JUNCTION BOX VOLUME
Kw
CUBIC INCHES
3.3-5
7.5-10
15.0-20
25.0-50
INSTALLATION INSTRUCTIONS
TASKMASTER -- 5100 SERIES UNIT HEATER
12"
FI G. 2
VE RT IC AL D IS CH AR GE
CC
74.4
1219
19.8
3245
19.8
3245
34.1
5592
Heaters may be mounted in the horizontal or vertical air discharge
configuration using factory optional supplied accessory mounting equipment
or using special hardware facilities supplied by others.
After the installation is complete, replace the access panel.
Set the controls (thermostat, switch) at their desired control point and apply
power to the unit.
Check correct operation.
DIMENSIONS
12"
7'
DIMENSIONS (INCHES)
Kw
3.3-5.0
7.5-10
15.0-20
25.0-50
3.3 - 5.0 KW
9/16" K.O.
1/2" K.O.
3/4" - 1" K.O.
3/4" K.O.
*
For vertical discharge
mounting bracket
Diagrams not to scale
5 of 20
H
W
17-3/4
14-15/32
24-5/16
21-1/2
28-11/16
21-1/2
34
29-1/4
7.5 - 20 KW
(4) 5/16" K.O.
9/16" K.O.
9/16" K.O.
1/2" K.O.
9/16" K.O.
D
6-1/2
6-1/2
6-1/2
10-1/16
(4) 5/16" K.O.
1/2" - 3/4" K.O.
9/16" K.O.
ECO 1-7874
REV. 10/22
FORM: 9632
