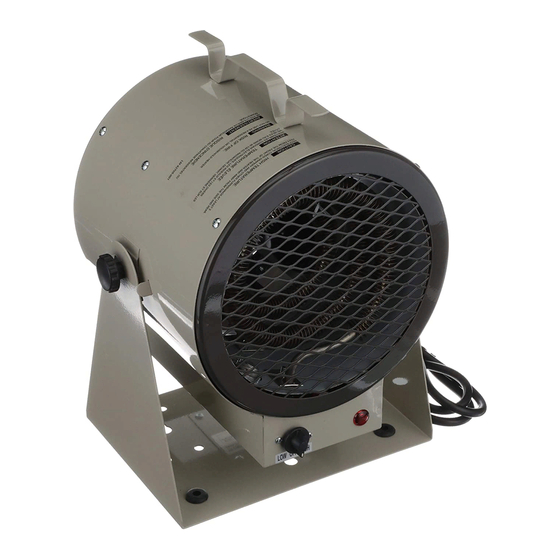

OPERATING INSTRUCTIONS
UTILITY UNIT HEATERS 680 SERIES
BTUH
13,652/10,239
16,393/12,295
19,113/14,335
CAUTION

INSTALLATION INSTRUCTIONS

OPERATION

• M A I N T E N A N C E
THERMAL.. CUTOFF DEVICE
20 Amp Plug Configuration
NEMA #6-20P
VOLTS
LINE AMPS
60HZ
240/208
16.7/14.4
240/208
20.0/17.3
23.3/20.2
240/208
PLUG CAP
ON CORD SET
20A
30A
30A
tpi corporation
P.O Box 4973, CRS
Johnson City, TN 37602-4973

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 680 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TPI 680 Series

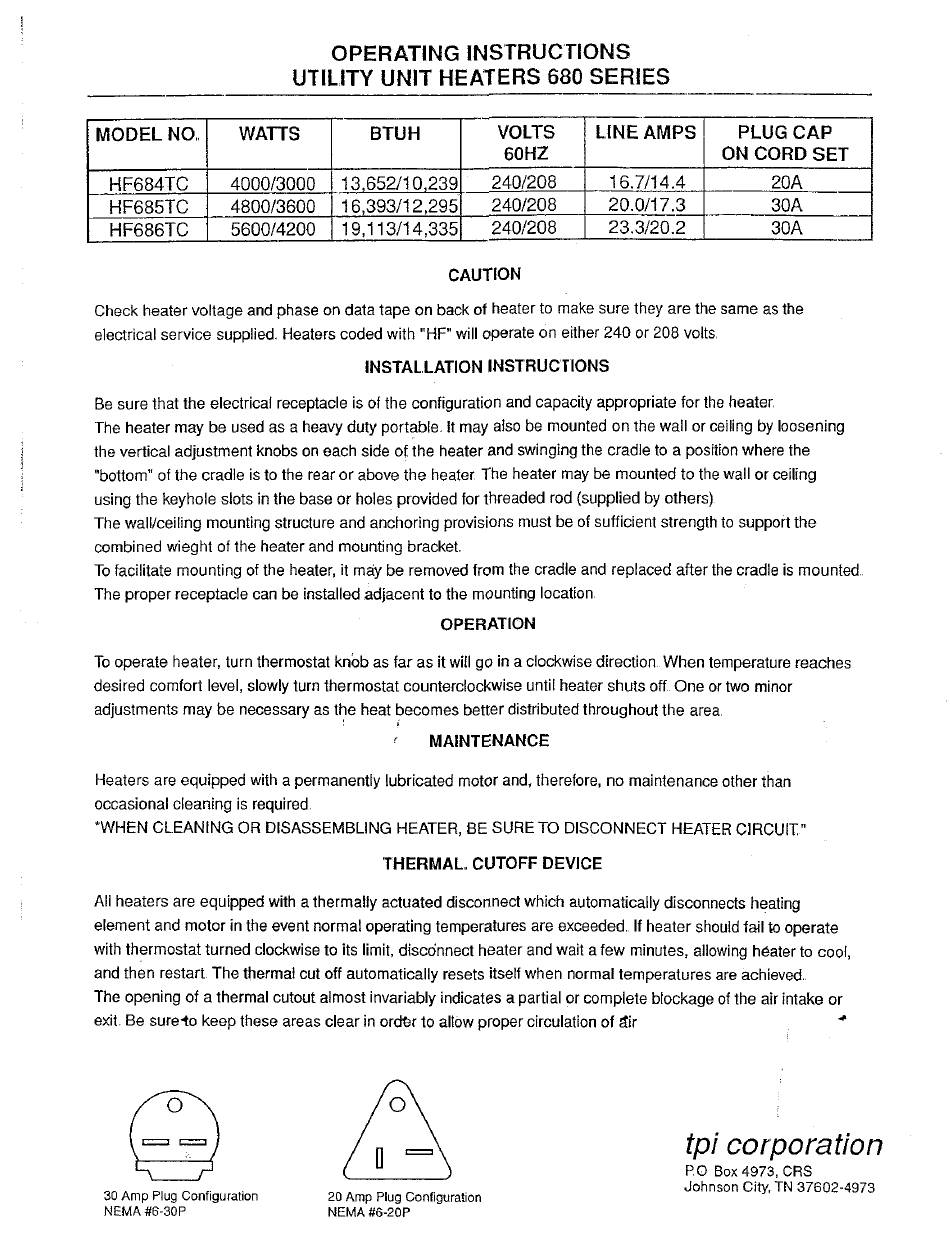

  • Page 1 OPERATING INSTRUCTIONS UTILITY UNIT HEATERS 680 SERIES MODEL NO. WATTS BTUH VOLTS LINE AMPS PLUG CAP 60HZ ON CORD SET 13,652/10,239 240/208 16.7/14.4 HF684TC 4000/3000 16,393/12,295 240/208 20.0/17.3 HF685TC 4800/3600 23.3/20.2 5600/4200 19,113/14,335 240/208 HF686TC CAUTION Check heater voltage and phase on data tape on back of heater to make sure they are the same as the electrical service supplied.
