USER MANUAL
IC-317x
Industrial Controller with Reconfigurable I/O
This document describes the features of the National Instruments IC-317x and contains
information about mounting and operating the device.
Contents
About the IC-317x.................................................................................................................... 1
Hardware Overview.................................................................................................................. 2
Connector Pinouts............................................................................................................. 3
LED Indicators................................................................................................................ 15
Using the RESET Button................................................................................................ 18
Replacing the Battery......................................................................................................18
Mounting the IC-317x.............................................................................................................20
Securing the IC-317x to a Mount....................................................................................23
Clearance Requirements................................................................................................. 25
Software Options.....................................................................................................................26
IEEE 1588 Precision Time Protocol References.....................................................................27
BIOS Configuration and System Recovery............................................................................ 27
Entering BIOS Setup.......................................................................................................27
BIOS Setup Utility Keyboard Navigation...................................................................... 27
Main Setup Menu............................................................................................................28
Advanced Menu.............................................................................................................. 29
Boot Menu.......................................................................................................................31
Save & Exit Menu...........................................................................................................32
Restoring the Device to Factory Default Condition........................................................33
Restoring the Windows Operating System..................................................................... 33
Where to Go Next................................................................................................................... 35
Resources for LabVIEW Users.......................................................................................35
Resources for Vision Builder AI Users...........................................................................35
Worldwide Support and Services............................................................................................ 35
About the IC-317x

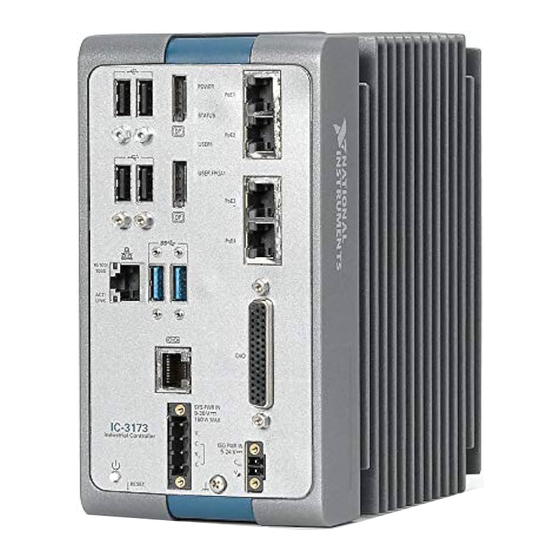

The IC-317x is a high-performance, small, fanless embedded computer designed for rugged
industrial applications. The IC-317x also provides multiple digital input/output (I/O) options
for communicating with external devices.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments 784227-01
Summary of Contents for National Instruments 784227-01
-
Page 1: Table Of Contents
USER MANUAL IC-317x Industrial Controller with Reconfigurable I/O This document describes the features of the National Instruments IC-317x and contains information about mounting and operating the device. Contents About the IC-317x........................1 Hardware Overview........................2 Connector Pinouts......................3 LED Indicators........................ 15 Using the RESET Button.................... -
Page 2: Hardware Overview
Figure 1. IC-317x Block Diagram RJ45 Primary Gigabit x2 DisplayPort Ethernet Port Intel Dual-Core Processor i7-5650U, i5-5350U, or Celeron 3765U 8/4 GB DDR3L x2 USB 3.0 Memory Host Ports 64/32/4 GB x4 USB 2.0 Solid-state Drive Host Ports RJ50 Serial Port PCIe RS-232/422/485 Gen 2... -
Page 3: Connector Pinouts
You can develop a single real-time VI to use for both your user interface and system logic. For more information, refer to the Using the Embedded UI to Access RT Target IC-317x User Manual | © National Instruments | 3... - Page 4 VIs topic in the LabVIEW Help. For up-to-date information about supported NI cables and accessories, refer to the pricing section of the product page at ni.com. Use an appropriate adapter cable to connect a DisplayPort connector to a VGA or DVI connector.
- Page 5 Ethernet port in Device Manager. The NI GigE Vision driver (NI-GEV) does not support Wake-on-LAN. The Ethernet ports with PoE do not support Wake-on-LAN. Figure 4. Ethernet Port Pin Locations IC-317x User Manual | © National Instruments | 5...
- Page 6 Table 2. Ethernet Port Pin Descriptions Fast Ethernet (100 Mbps) Gigabit Ethernet MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ No Connect BI_DC+ BI_DD- No Connect BI_DC- BI_DD- BI_DB- BI_DA- No Connect BI_DD+ BI_DC+ No Connect BI_DD- BI_DC- Digital I/O The 44-pin Digital I/O port on the IC-317x offers 8 isolated inputs, 8 isolated outputs, 2 bidirectional differential inputs (RS-422) or single-ended input lines that can be used with a quadrature encoder, and 8 bidirectional TTL lines.
- Page 7 Bidirectional TTL I/O TTL 7 Bidirectional TTL I/O Digital ground reference for TTL and differential I/O Diff 1- Bidirectional RS-422 I/O (negative side), or quadrature encoder phase B- Isolated power voltage reference output IC-317x User Manual | © National Instruments | 7...
- Page 8 Table 3. Digital I/O Pin Descriptions (Continued) Pin Number Signal Description Common ground reference for isolated inputs and outputs Iso Out 2 General purpose isolated output Iso Out 3 General purpose isolated output Common ground reference for isolated inputs and outputs Iso Out 5 General purpose isolated output Iso In 0 General purpose isolated input...
- Page 9 IC-317x to an inductive load. The following image shows an example of an isolated output wired to an external load with a flyback diode installed across the load. IC-317x User Manual | © National Instruments | 9...
- Page 10 Caution Do not draw more than 35 mA from each isolated output when V 5 V. Do not draw more than 80 mA from each isolated output when V is 24 V. Figure 7. Connecting an Isolated Output to an External Load Overcurrent Protection Circuit Digital Output...
- Page 11 Figure 9. Connecting Differential Line Drivers External Device Industrial Controller Diff In 0+ Phase A Twisted Pair – Diff In 0– Phase A Diff In 1+ Phase B Twisted Pair – Diff In 1– Phase B IC-317x User Manual | © National Instruments | 11...
- Page 12 Figure 10. Connecting Single-Ended Line Drivers External Device Industrial Controller Diff In 0+ Phase A Twisted Pair – Diff In 0– Diff In 1+ Phase B Twisted Pair – Diff In 1– TTL I/O The following image shows the circuit for a bidirectional TTL I/O. Figure 11.
- Page 13 Part Number RJ50 10-position modular plug to DB-9 serial cable 182845-01 for 1 meter cable 182845-02 for 2 meter cable 182845-03 for 3 meter cable Figure 12. RS-485/422/232 Serial Port Pin Locations IC-317x User Manual | © National Instruments | 13...
- Page 14 Table 6. RS-485/422/232 Serial Port Pin Descriptions RS-485/422 Mode RS-232 Mode No Connect No Connect TXD- Unused TXD+ Unused No Connect No Connect No Connect No Connect RXD- RXD+ Unused Unused Unused Unused Related Information Serial Port Configuration Submenu on page 31 USB 3.0 Ports The USB ports support common USB peripheral devices such as USB flash drives, USB hard drives, USB-to-IDE adapters, keyboards, mice, and USB cameras.
-
Page 15: Led Indicators
LED Indicators The LED indicators are located on the front panel of the device. The IC-317x provides the following LED indicators. POWER LED The following table lists the POWER LED indications. IC-317x User Manual | © National Instruments | 15... - Page 16 This indicates a hardware error. An internal power supply has blink failed. Check front-panel I/O connections for shorts. Remove any shorts and cycle power to the IC-317x. If the problem persists, contact National Instruments. Related Information Safe Mode on page 18...
- Page 17 The corresponding PoE port is powering the connected device. Ethernet LEDs The Gigabit Ethernet ports have the following LEDs. Figure 15. LEDs for the Gigabit Ethernet Ports 1. Speed LED 2. Activity/Link LED IC-317x User Manual | © National Instruments | 17...
-
Page 18: Using The Reset Button
Table 13. Ethernet LED Indications Status Indication No link, or 10 Mbps link Speed Green 100 Mbps link Amber 1,000 Mbps link No link has been established Activity/Link Solid A link has been negotiated Blinking Activity on the link Using the RESET Button Pressing the RESET button resets the processor in the same manner as cycling power. - Page 19 Locate the BATTERY CONNECT switch above the battery and move the switch toward the front panel of the device. The battery is now disconnected from the device. Replace the battery cover plate. IC-317x User Manual | © National Instruments | 19...
-
Page 20: Mounting The Ic-317X
Figure 16. Side of Device with Removed Battery Cover Plate and BATTERY CONNECT Switch in Disconnected Position Mounting the IC-317x This section provides information for creating a custom mount for the IC-317x. If you do not want to create a custom mount, a panel mount kit for the IC-317x is available from National Instruments (part number 784791-01). - Page 21 27.94 mm 21.35 mm (1.10 in.) (0.84 in.) 11.45 mm 22.72 mm (0.45 in.) (0.89 in.) 36.12mm 3.27 mm (1.42 in.) (0.129 in.) 2.58 mm (0.10 in.) 28.02 mm (1.10 in.) IC-317x User Manual | © National Instruments | 21...
- Page 22 Figure 18. Side View Dimensions 167.63 mm (6.60 in.) 4.23 mm 15.08 mm (0.17 in.) (0.20 in.) 173.99 mm (6.85 in.) 176.94 mm (6.97 in.) 22 | ni.com | IC-317x User Manual...
-
Page 23: Securing The Ic-317X To A Mount
Insert four 6-32 screws and tighten them 0.28 N · m (3.5 lb · in) until they are secure. Ensure the heads of the screws are flush with the mounting bracket. IC-317x User Manual | © National Instruments | 23... - Page 24 Figure 20. Securing a Mounting Bracket to the Device 24 | ni.com | IC-317x User Manual...
-
Page 25: Clearance Requirements
Allow 101.6 mm (4.0 in.) on the top and bottom of the IC-317x for air circulation. • Allow 50.8 mm (2.0 in.) on the sides of the IC-317x for air circulation. • Allow enough space in front of the IC-317x to connect cables. IC-317x User Manual | © National Instruments | 25... -
Page 26: Software Options
Figure 22. Clearance Requirements for the IC-317x 101.6 mm (4.00 in.) 50.8 mm 50.8 mm (2.00 in.) (2.00 in.) 101.6 mm (4.00 in.) Software Options Use the following software to develop applications with the IC-317x. Refer to the IC-317x Getting Started Guide for information about installing software. •... -
Page 27: Ieee 1588 Precision Time Protocol References
Immediately hold down the <Delete> key until the BIOS setup utility appears. The Main setup menu is displayed when you first enter the BIOS setup utility. BIOS Setup Utility Keyboard Navigation Use the following keys to navigate through the BIOS setup utility: IC-317x User Manual | © National Instruments | 27... -
Page 28: Main Setup Menu
Table 14. Navigation Keys Key(s) Function(s) Left Arrow, Right Move between the different setup menus. If you are in a submenu, Arrow these keys have no effect, and you must press <Esc> to leave the submenu first. Up Arrow, Down Move between the options within a setup menu. -
Page 29: Advanced Menu
The default setting is Enabled. • Hardware Prefetcher—This setting specifies whether or not to enable the hardware prefetcher. Enabling this setting may increase performance by prefetching portions of IC-317x User Manual | © National Instruments | 29... - Page 30 memory for the processor, but software jitter may increase. The default setting is Enabled. • Adjacent Cache Prefetcher—This setting specifies whether or not to enable the adjacent cache line prefetcher. Enabling the adjacent cache prefetcher may increase performance by prefetching portions of memory for the processor, but software jitter may increase. The default setting is Enabled.
-
Page 31: Boot Menu
The default value is Disabled. To enable this setting, you must select Enable and then select Save & Exit to restart the device. When this setting is enabled, the Intel IC-317x User Manual | © National Instruments | 31... -
Page 32: Save & Exit Menu
Boot Agent is visible in the Boot Option Priorities menu. This allows you to boot from a PXE server on the local subnet. Note that the Intel Boot Agent device names are preceded by IBA GE Slot in the Boot Option Priorities menu. •... -
Page 33: Restoring The Device To Factory Default Condition
Insert the USB flash drive into a computer with a DVD drive running Windows, and wait for the flash drive to be recognized. Open a command prompt as an administrator. Type and press <Enter>. diskpart.exe Type and press <Enter>. list disk IC-317x User Manual | © National Instruments | 33... - Page 34 Identify the drive number that corresponds to the USB flash drive. Type , where is the drive number of the USB flash drive, and press select disk <Enter>. For example, in the following image, the USB flash drive is disk number 5. The command is select disk 5 Caution...
-
Page 35: Where To Go Next
Where to Go Next The following documents and resources contain information you may find helpful as you use the IC-317x in an application. Refer to the National Instruments Product Manuals Library at ni.com/manuals for the most recent versions of product documentation. - Page 36 CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015. © 2016 National Instruments. All rights reserved. 375285B-01 Jun16...
