Anleitung SKA 5000 C+H_GB

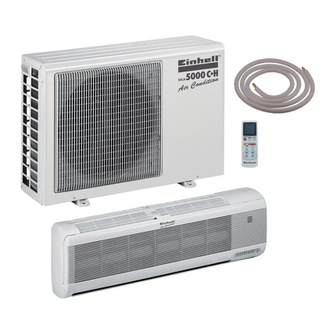

Operating Instructions for the
Indoor and Outdoor Device
Split-system Air Conditioner
Important note:
This high-quality product will only offer
optimum service if installed correctly and in
the right place, and is put into operation for
the first time by a suitably competent person.
Avoid malfunctions by seeking competent
advice from an expert with regards to the
location, installation and starting up of the
system.
We shall accept no liability for malfunctions
or inadequate cooling performance resulting
from the improper handling of the product.
Only a suitably qualified firm is permitted to
undertake any work of making the electrical
and cooling system connections and putting
the system into operation for the first time.
If the system is to be moved to another
location or disposed of, only a suitably
qualified electrician's/cooling system firm is
permitted to undertake any work of
disassembly or disposal.
Art.-Nr.: 23.653.62
27.12.2004
11:39 Uhr
Seite 1
I.-Nr. 01012
SKA 5000 C+H
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKA 5000 C+H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EINHELL SKA 5000 C+H

Summary of Contents for EINHELL SKA 5000 C+H

  • Page 1 If the system is to be moved to another location or disposed of, only a suitably qualified electrician’s/cooling system firm is permitted to undertake any work of disassembly or disposal. SKA 5000 C+H Art.-Nr.: 23.653.62 I.-Nr. 01012...

  • Page 2: Technical Data

    Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 2 Technical data: Cooling capacity Watt/BTU/h 4500 / 16000 Heating capacity Watt/BTU/h 4800 / 17000 Air capacity Absorbed humidity Timer Operating voltage V ~ Hz 230 / 50 Power rating: Cooling Watt 1660 Power rating: Heating Watt...
  • Page 3 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 3 Sleep function: 24-hour program setting: Automatic adjustment of the air Computer-controlled simulation of Precise time setting. The switch- velocity: the physiological sleeping curve of over time and switching on time Automatic adjustment of the air the human body for a quiet and can be set to any desired time capacity to a high, medium or low...

  • Page 4: Safety Instructions

    Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 4 Safety instructions going to be used for any lengthy period of time. Collections of dust can cause fire. Never step onto the outdoor device and never Read the safety instructions before you start to place anything on it.
  • Page 5 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 5 Indoor device 1 Front panel 2 Air outlet vent 3 Mains plug 4 Air filter 5 Left / right slats 6 Controller 7 Emergency switch 8 Remote control 9 Display 10 Receiver for remote control display 11 Temperature indicator 12 Status indicator lamp 13 Window for signal reception...
  • Page 6 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 6 Outdoor device 1 At the rear: air inlet 2 Hose package 3 Water drainage hose 4 Air vent 5 Water drainage hole...
  • Page 7 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 7 Indicator on the indoor device Green signal lamp The room temperature and the selected temperature are indicated during operation. Room temperature in the indication range is 21-30°C (but the set temperature is 16- 31°C).

  • Page 8: Remote Controll

    Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 8 Remote controll: Signal output window Function display On/Off switch Function switch (mode switch) 4a Automatic function 4b Cool 4c Dehumidify (Dry) 4d Heat Switch for air circulation velocity Sleep selection key Timer-on key Hours selection switch, minute setting, time setting...
  • Page 9 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 9 Preparing to use the remote control for the first time and setting the current time. Press the reset key with a pointed object. Make sure that the + and – terminals are positioned correctly when you load the batteries.
  • Page 10 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 10 Preparation for use of the remote control - The radio signal has a range of approx. 6 m. - When the ON/OFF button is pressed, the indoor device will emit an audio signal once or twice to indicate that the device has received the signal.
  • Page 11 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 11 “I feel ...” automatic function A light press of the automatic function “I feel” can produce a comfortable room temperature. To start Press the ON/OFF KEY automatic function is indicated, the air conditioner switches to a comfortable room temperature.
  • Page 12 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 12 If the automatic function is not shown, press key “4” as often as is required for the automatic function (4a) to be shown. Each time the key is pressed the sequence changes: Automatic (4a) - Cool (4b) - Dehumidify (Dry) (4c) - Heat (4d).
  • Page 13 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 13 Selecting the mode function (cool (4b), dehumidify (4c), heat (4d)). Select Mode in order to finely adjust the room temperature or air flow. Important! If the ambient temperature is too high the cooling system works at maximum capacity.
  • Page 14 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 14 Changing the temperature Press the “too hot” key to reduce the temperature. Each press of the key reduces the set temperature by 1°C. Press the “too cool” key to increase the temperature. Each press the key increases the temperature by 1°C.
  • Page 15 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 15 Adjusting the air velocity and air flow Select the air flow and air circulation with which you feel most comfortable. Press the key to adjust the air velocity. Each press of the key changes the air velocity as follows: Select a high setting if you...
  • Page 16 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 16 Recommended range for the air flow up/down. Adjust with the automatic key. Select cool, heat or dehumidify. Important: - In the dehumidify and cool function the air is blown downwards for 1 hour (Item 4 - 5).
  • Page 17 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 17 Comfortable sleep mode function Set this function if you desire a quiet room while sleeping. Proceed as follows: Press the key. This function is for a quiet room while sleeping. To cancel this function: Press the key again.
  • Page 18 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 18 Full blast If this function is started, every part of the room will be cooled. Proceed as follows: Press the key. The cancel: Press the key again. Press the key during full blast to stop the operation.
  • Page 19 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 19 Timer mode (ON/OFF) Set the TIMER mode before going to sleep, or for the normal time that you come home or get up in the morning. Timer On setting 1 Press the key during operation to set the timer to “ON”.
  • Page 20 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 20 Important: Always switch off the device and pull the power plug before cleaning. The high speed of the fans can cause injury. Clean the indoor device with a soft cloth only. Never use petrol, thinners, scouring powder, cleaners, etc., as these may cause damage to the device.

  • Page 21: Troubleshooting

    Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 21 Troubleshooting Before you ever contact customer services, check the following: Device does not start. Check the following: 1. Is voltage present at the plug socket outlet? 2. Check the plug fuse! 3.
  • Page 22 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 22 Troubleshooting Problem Cause After pressing the start key the device is not started This is not a fault, it is for the protection of the by the microprocessor for 3 minutes. compressor.

  • Page 23: Important Installation Instructions

    Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 23 Important installation instructions Selecting the place to install the indoor device The air flow must never be blocked. The cooled air should be capable of being distributed to all parts of the room. The maximum distance between the indoor and outdoor device is 15m and their maximum difference in height 5m.

  • Page 24: Installation Instructions

    Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 24 Installation instructions: correctly and exactly. 7. Make sure that there is sufficient space available for later repair and service work. Check that the actual mains voltage is the same 8. The device should be installed at a distance of at as the mains voltage specified on the rating least 1 m from all other electrical devices and plate.
  • Page 25 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 25 Never install in locations exposed to aggressive damage. air. Slide the additional drainage hose onto the Comply with all specified minimum distances mounts on the drainage hose already fixed to the (see Important notes on installation).

  • Page 26: Remote Control Holder

    Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 26 3. Assembly of the outdoor device terminal. Important Have the connection cable for the outdoor device 1. Have all service work performed by a specialist connected only by a qualified electrician firm only.
  • Page 27 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 27 indoor device ET-Nr. 23.710.21.00 Connection cable outdoor device ET-Nr. 23.710.25.00 Stress-relief cable clip...
  • Page 28 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 28 Notes 1. Any unauthorized modifications to the device shall not be covered by the warranty. 2. Liability for any injury or damage to property resulting from defects caused by sales, storage, transportation or unloading personnel shall rest with the person(s) causing such injury or damage to property.
  • Page 29 Vyhásenie EU o konformite Dichiarazione di conformità CE Декларация за съответствие на ЕО Declaraţie de conformitate CE Split-Klimagerät SKA 5000 C+H AT Uygunluk Deklarasyonu következő irányvonalakkal és normákkal. Der Unterzeichnende erklärt in Namen der Firma die Übe- reinstimmung des Produktes.
  • Page 30 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 30 GARANTIEURKUNDE Auf das in der Anleitung bezeichnete Gerät geben wir 2 Jahre Selbstverständlich bleiben Ihnen die gesetzlichen Gewähr- Garantie, für den Fall, dass unser Produkt mangelhaft sein sollte. leistungsrechte innerhalb dieser 2 Jahre erhalten. Die Garan- Die 2-Jahres-Frist beginnt mit dem Gefahrenübergang oder der tie gilt für den Bereich der Bundesrepublik Deutschland oder der Übernahme des Gerätes durch den Kunden.
  • Page 31 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 31 Recycling alternative to the demand to return electrical devices: As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation.
  • Page 32 Anleitung SKA 5000 C+H_GB 27.12.2004 11:39 Uhr Seite 32 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only EH 12/2004 with the express consent of ISC GmbH.
