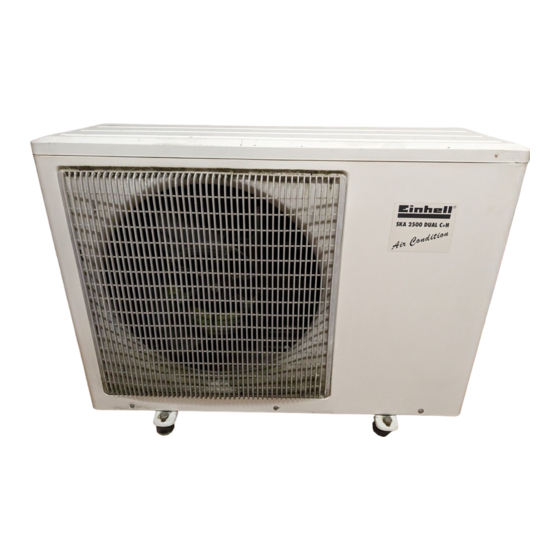

EINHELL SKA 2500 DUAL C+H Operating Instructions Manual

Split-system air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Anleitung SKA 2500 C+H _GB
Operating Instructions for the
Indoor and Outdoor Device
Split-system Air Conditioner
Important note:
This high-quality product will only offer
optimum service if installed correctly and in
the right place, and is put into operation for
the first time by a suitably competent person.
Avoid malfunctions by seeking competent
advice from an expert with regards to the
location, installation and starting up of the
system.
We shall accept no liability for malfunctions
or inadequate cooling performance resulting
from the improper handling of the product.
Only a suitably qualified firm is permitted to
undertake any work of making the electrical
and cooling system connections and putting
the system into operation for the first time.
If the system is to be moved to another
location or disposed of, only a suitably
qualified electrician's/cooling system firm is
permitted to undertake any work of
disassembly or disposal.
Art.-Nr.: 23.653.85
23.12.2004
14:28 Uhr
Seite 1
I.-Nr. 01013
SKA 2500 DUAL C+H
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKA 2500 DUAL C+H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EINHELL SKA 2500 DUAL C+H

Summary of Contents for EINHELL SKA 2500 DUAL C+H

  • Page 1 If the system is to be moved to another location or disposed of, only a suitably qualified electrician’s/cooling system firm is permitted to undertake any work of disassembly or disposal. SKA 2500 DUAL C+H Art.-Nr.: 23.653.85 I.-Nr. 01013...

  • Page 2: Technical Data

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 2 Technical data: Cooling capacity Watt/BTU/h 2 x 2500 / 9000 Heating capacity Watt/BTU/h 2 x 2900 / 10000 Air capacity 2 x 420 Absorbed humidity 2 x 1.0 Timer Operating voltage V ~ Hz 230 / 50 Power rating: Cooling...
  • Page 3 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 3 Sleep function: 24-hour program setting: Automatic adjustment of the air Computer-controlled simulation of Precise time setting. The switch- velocity: the physiological sleeping curve of over time and switching on time Automatic adjustment of the air the human body for a quiet and can be set to any desired time...

  • Page 4: Safety Instructions

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 4 Safety instructions going to be used for any lengthy period of time. Collections of dust can cause fire. Never step onto the outdoor device and never Read the safety instructions before you start to place anything on it.

  • Page 5: Description Of Parts

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 5 Description of parts: Indoor device Air inlet Air outlet Air intake flap Air filter Emergency switch Remote control Slats Water hose Receiver for remote control Display 10 Power cable Outdoor device 11 Air outlet grille Air inlet Important!
  • Page 6 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 6 Display: Indoor device Cool Dehumidify Automatic not for C+H types Heat not for C+H types Temperature indicator in °C Temperature and timer indicator Air velocity Open close Press the two bottom corners (marked with Push) on the intake grille.

  • Page 7: Remote Controll

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 7 Remote controll: Signal output window Function display On/Off switch Function switch (mode switch) 4a Automatic function 4b Cool 4c Dehumidify (Dry) 4d Heat Switch for air circulation velocity Sleep selection key Timer-on key Hours selection switch, minute setting, time setting...
  • Page 8 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 8 Preparing to use the remote control for the first time and setting the current time. Press the reset key with a pointed object. Make sure that the + and – terminals are positioned correctly when you load the batteries.
  • Page 9 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 9 Preparation for use of the remote control - The radio signal has a range of approx. 6 m. - When the ON/OFF button is pressed, the indoor device will emit an audio signal once or twice to indicate that the device has received the signal.
  • Page 10 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 10 “I feel ...” automatic function A light press of the automatic function “I feel” can produce a comfortable room temperature. To start Press the ON/OFF KEY automatic function is indicated, the air conditioner switches to a comfortable room temperature.
  • Page 11 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 11 If the automatic function is not shown, press key “4” as often as is required for the automatic function (4a) to be shown. Each time the key is pressed the sequence changes: Automatic (4a) - Cool (4b) - Dehumidify (Dry) (4c) - Heat (4d).
  • Page 12 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 12 Selecting the mode function (cool (4b), dehumidify (4c), heat (4d)). Select Mode in order to finely adjust the room temperature or air flow. Important! If the ambient temperature is too high the cooling system works at maximum capacity.
  • Page 13 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 13 Changing the temperature Press the “too hot” key to reduce the temperature. Each press of the key reduces the set temperature by 1°C. Press the “too cool” key to increase the temperature. Each press the key increases the temperature by 1°C.
  • Page 14 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 14 Adjusting the air velocity and air flow Select the air flow and air circulation with which you feel most comfortable. Press the key to adjust the air velocity. Each press of the key changes the air velocity as follows: Select a high setting if you...
  • Page 15 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 15 Recommended range for the air flow up/down. Adjust with the automatic key. Select cool, heat or dehumidify. Important: - In the dehumidify and cool function the air is blown downwards for 1 hour (Item 4 - 5).
  • Page 16 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 16 Comfortable sleep mode function Set this function if you desire a quiet room while sleeping. Proceed as follows: Press the key. This function is for a quiet room while sleeping. To cancel this function: Press the key again.
  • Page 17 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 17 Full blast If this function is started, every part of the room will be cooled. Proceed as follows: Press the key. The cancel: Press the key again. Press the key during full blast to stop the operation.
  • Page 18 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 18 Timer mode (ON/OFF) Set the TIMER mode before going to sleep, or for the normal time that you come home or get up in the morning. Timer On setting 1 Press the key during operation to set the timer to “ON”.
  • Page 19 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 19 Important: Always switch off the device and pull the power plug before cleaning. The high speed of the fans can cause injury. Clean the indoor device with a soft cloth only. Never use petrol, thinners, scouring powder, cleaners, etc., as these may cause damage to the device.
  • Page 20 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 20 Troubleshooting Before you ever contact customer services, check the following: Device does not start. Check the following: 1. Is voltage present at the plug socket outlet? 2. Check the plug fuse! 3.

  • Page 21: Troubleshooting

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 21 Troubleshooting Problem Cause After pressing the start key the device is not started This is not a fault, it is for the protection of the by the microprocessor for 3 minutes. compressor.

  • Page 22: Important Installation Instructions

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 22 Important installation instructions Selecting the place to install the indoor device The air flow must never be blocked. The cooled air should be capable of being distributed to all parts of the room. The maximum distance between the indoor and outdoor device is 15m and their maximum difference in height 5m.

  • Page 23: Installation Instructions

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 23 Installation instructions: correctly and exactly. 7. Make sure that there is sufficient space available for later repair and service work. Check that the actual mains voltage is the same 8. The device should be installed at a distance of at as the mains voltage specified on the rating least 1 m from all other electrical devices and plate.
  • Page 24 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 24 Never install in locations exposed to aggressive damage. air. Slide the additional drainage hose onto the Comply with all specified minimum distances mounts on the drainage hose already fixed to the (see Important notes on installation).

  • Page 25: Electrical Connection

    Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 25 previous notes on selecting the location). Check that the + and – terminals on the batteries Check that the available mains voltage is the are positioned correctly in the remote control. same as the voltage specified on the rating plate.
  • Page 26 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 26 indoor device outdoor device Power cable Stress- relief clip Connection cable Connection cable Stress-relief clip Stress-relief clip...
  • Page 27 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 27 Notes 1. Any unauthorized modifications to the device shall not be covered by the warranty. 2. Liability for any injury or damage to property resulting from defects caused by sales, storage, transportation or unloading personnel shall rest with the person(s) causing such injury or damage to property.
  • Page 28 Vyhásenie EU o konformite Dichiarazione di conformità CE Декларация за съответствие на ЕО Declaraţie de conformitate CE Split-Klimaanlage SKA 2500 DUAL C+H AT Uygunluk Deklarasyonu következő irányvonalakkal és normákkal. Der Unterzeichnende erklärt in Namen der Firma die Übe- reinstimmung des Produktes.
  • Page 29 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 29 GARANTIEURKUNDE Auf das in der Anleitung bezeichnete Gerät geben wir 2 Jahre Selbstverständlich bleiben Ihnen die gesetzlichen Gewähr- Garantie, für den Fall, dass unser Produkt mangelhaft sein sollte. leistungsrechte innerhalb dieser 2 Jahre erhalten. Die Garan- Die 2-Jahres-Frist beginnt mit dem Gefahrenübergang oder der tie gilt für den Bereich der Bundesrepublik Deutschland oder der Übernahme des Gerätes durch den Kunden.
  • Page 30 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 30...
  • Page 31 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 31 Recycling alternative to the demand to return electrical devices: As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation.
  • Page 32 Anleitung SKA 2500 C+H _GB 23.12.2004 14:28 Uhr Seite 32 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only EH 12/2004 with the express consent of ISC GmbH.
