Anleitung SKA 3500 C+H_GB

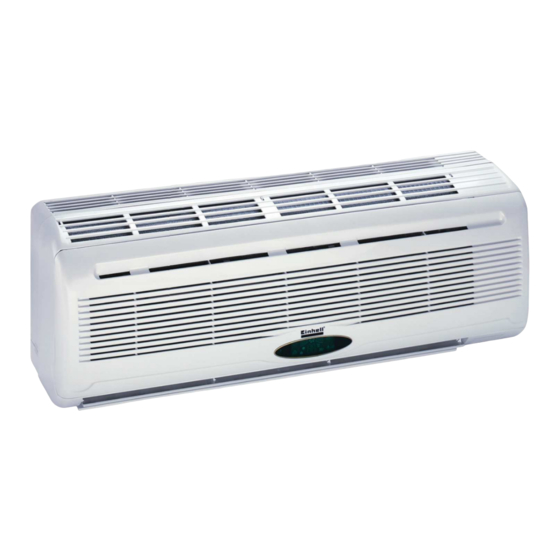

Operating Instructions for the
Indoor and Outdoor Device
Split-system Air Conditioner
Important note:
This high-quality product will only offer
optimum service if installed correctly and in
the right place, and is put into operation for
the first time by a suitably competent person.
Avoid malfunctions by seeking competent
advice from an expert with regards to the
location, installation and starting up of the
system.
We shall accept no liability for malfunctions
or inadequate cooling performance resulting
from the improper handling of the product.
Only a suitably qualified firm is permitted to
undertake any work of making the electrical
and cooling system connections and putting
the system into operation for the first time.
If the system is to be moved to another
location or disposed of, only a suitably
qualified electrician's/cooling system firm is
permitted to undertake any work of
disassembly or disposal.
Art.-Nr.: 23.653.22
20.01.2006
9:14 Uhr
Seite 1
I.-Nr. 01012
SKA 3500 C+H
®
Advertisement
Related Manuals for EINHELL SKA 3500 C+H
Summary of Contents for EINHELL SKA 3500 C+H
- Page 1 If the system is to be moved to another location or disposed of, only a suitably qualified electrician’s/cooling system firm is permitted to undertake any work of disassembly or disposal. SKA 3500 C+H Art.-Nr.: 23.653.22 I.-Nr. 01012...
-
Page 2: Safety Instructions
Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 2 1. Safety instructions Always pull out the power plug if the device is not going to be used for any lengthy period of time. Collections of dust can cause fire. Read the safety instructions before you start to Never step onto the outdoor device and never use the device. -
Page 3: Technical Data
Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 3 2. Technical data Cooling capacity 3,500 watts Heating capacity 3,800 watts Energy efficiency B (EER 3.02/COP 3.42) Air capacity 520 m Absorbed humidity 1.3 l/h Timer 24 h Operating voltage 230 V ~ 50 Hz Nominal power consumption, cooling 1,320 watts Nominal power consumption, heating... - Page 4 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 4 3. Description of parts Indoor device 1 Front panel 2 Air outlet vent 3 Air filter 4 Left / right slats 5 Controller 6 Emergency switch 7 Remote control 8 Color display 9 Top / bottom slats...
- Page 5 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 5 Outdoor device 1 At the rear: air inlet 2 Hose package 3 Water drainage hose 4 Air vent 5 Water drainage hole...
-
Page 6: Remote Control
Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 6 Remote control: Signal output window Function display On/Off switch Function switch (mode switch) 4a Automatic function 4b Cool 4c Dehumidify (Dry) 4d Heat Switch for air circulation velocity Sleep selection key Timer-on key Hours selection switch, minute setting, time setting... - Page 7 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 7 Preparing to use the remote control for the first time and setting the current time. Press the reset key with a pointed object. Make sure that the + and – terminals are positioned correctly when you load the batteries.
- Page 8 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 8 Preparation for use of the remote control - The radio signal has a range of approx. 6 m. - When the ON/OFF button is pressed, the indoor device will emit an audio signal once or twice to indicate that the device has received the signal.
- Page 9 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 9 “I feel ...” automatic function A light press of the automatic function “I feel” can produce a comfortable room temperature. To start Press the ON/OFF KEY automatic function is indicated, the air conditioner switches to a comfortable room temperature.
- Page 10 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 10 If the automatic function is not shown, press key “4” as often as is required for the automatic function (4a) to be shown. Each time the key is pressed the sequence changes: Automatic (4a) - Cool (4b) - Dehumidify (Dry) (4c) - Heat (4d).
- Page 11 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 11 Selecting the mode function (cool (4b), dehumidify (4c), heat (4d)). Select Mode in order to finely adjust the room temperature or air flow. Important! If the ambient temperature is too high the cooling system works at maximum capacity.
- Page 12 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 12 Changing the temperature Press the “too hot” key to reduce the temperature. Each press of the key reduces the set temperature by 1°C. Press the “too cool” key to increase the temperature. Each press the key increases the temperature by 1°C.
- Page 13 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 13 Adjusting the air velocity and air flow Select the air flow and air circulation with which you feel most comfortable. Press the key to adjust the air velocity. Each press of the key changes the air velocity as follows: Select a high setting if you...
- Page 14 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 14 Recommended range for the air flow up/down. Adjust with the automatic key. Select cool, heat or dehumidify. Important: - In the dehumidify and cool function the air is blown downwards for 1 hour (Item 4 - 5).
- Page 15 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 15 Comfortable sleep mode function Set this function if you desire a quiet room while sleeping. Proceed as follows: Press the key. This function is for a quiet room while sleeping. To cancel this function: Press the key again.
- Page 16 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 16 Full blast If this function is started, every part of the room will be cooled. Proceed as follows: Press the key. The cancel: Press the key again. Press the key during full blast to stop the operation.
- Page 17 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 17 Timer mode (ON/OFF) Set the TIMER mode before going to sleep, or for the normal time that you come home or get up in the morning. Timer On setting 1 Press the key during operation to set the timer to “ON”.
- Page 18 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 18 Important: Always switch off the device and pull the power plug before cleaning. The high speed of the fans can cause injury. Clean the indoor device with a soft cloth only. Never use petrol, thinners, scouring powder, cleaners, etc., as these may cause damage to the device.
-
Page 19: Troubleshooting
Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 19 6. Troubleshooting Before you ever contact customer services, check the following: Device does not start. Check the following: 1. Is voltage present at the plug socket outlet? 2. Check the plug fuse! 3. - Page 20 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 20 Troubleshooting Problem Cause After pressing the start key the device is not started This is not a fault, it is for the protection of the by the microprocessor for 3 minutes. compressor.
- Page 21 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 21 The following pages are intended for professional installers. 7. Important installation instructions Selecting the place to install the indoor device The air flow must never be blocked. The cooled air should be capable of being distributed to all parts of the room.
-
Page 22: Installation Instructions
Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 22 8. Installation instructions: correctly and exactly. 7. Make sure that there is sufficient space available for later repair and service work. Check that the actual mains voltage is the same 8. The device should be installed at a distance of at as the mains voltage specified on the rating least 1 m from all other electrical devices and plate. - Page 23 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 23 air. Slide the additional drainage hose onto the Comply with all specified minimum distances mounts on the drainage hose already fixed to the (see Important notes on installation). indoor device. Fasten this connection point with The indoor and outdoor devices must only ever adhesive tape, checking that it is fully sealed as you do so.
- Page 24 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 24 indoor device and the outdoor device should be 4. Connecting the coolant tubes damaged, contact a specialist firm. 3. If the power cable should ever be damaged, 4.1 Important notes have it replaced by an electrician. Please make sure that coolant is never allowed 4.
- Page 25 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 25 indoor device ET-Nr. 23.709.21.00 Connection cable outdoor device ET-Nr. 23.709.25.00 Stress-relief cable clip...
- Page 26 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 26 9. Notes 1. Any unauthorized modifications to the device shall not be covered by the warranty. 2. Liability for any injury or damage to property resulting from defects caused by sales, storage, transportation or unloading personnel shall rest with the person(s) causing such injury or damage to property.
- Page 27 E E C C З З а а я я в в л л е е н н и и е е о о к к о о н н ф ф о о р р м м н н о о с с т т и и Vyhásenie EU o konformite Dichiarazione di conformità CE Split-Klimagerät SKA 3500 C+H Declaraţie de conformitate CE AT Uygunluk Deklarasyonu Der Unterzeichnende erklärt in Namen der Firma die Übe-...
- Page 28 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 28 GARANTIEURKUNDE Auf das in der Anleitung bezeichnete Gerät geben wir 2 Jahre Selbstverständlich bleiben Ihnen die gesetzlichen Gewähr- Garantie, für den Fall, dass unser Produkt mangelhaft sein sollte. leistungsrechte innerhalb dieser 2 Jahre erhalten. Die Garan- Die 2-Jahres-Frist beginnt mit dem Gefahrenübergang oder der tie gilt für den Bereich der Bundesrepublik Deutschland oder der Übernahme des Gerätes durch den Kunden.
- Page 29 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 29 For EU countries only Never place any electric tools in your household refuse. To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g.
- Page 30 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 30...
- Page 31 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 31...
- Page 32 Anleitung SKA 3500 C+H_GB 20.01.2006 9:14 Uhr Seite 32 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH. EH 01/2006...
