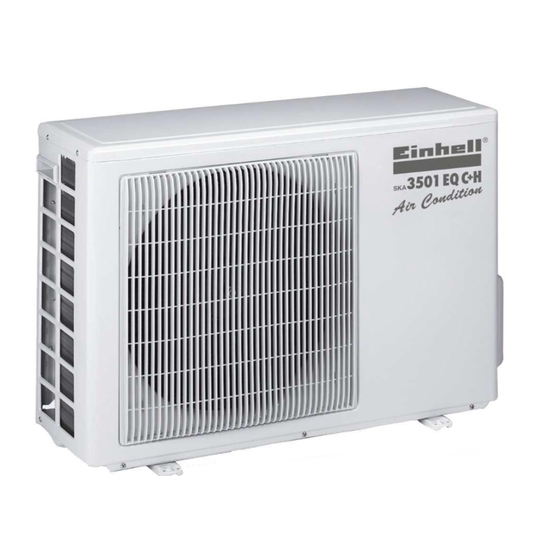

EINHELL SKA 3501 EQ C+H Operating Instructions Manual

Split-system air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Anleitung SKA 3501 EQ C+H GB
Operating Instructions for the
Indoor and Outdoor Device
Split-system Air Conditioner
Important note:
This high-quality product will only offer
optimum service if installed correctly and in
the right place, and is put into operation for
the first time by a suitably competent person.
Avoid malfunctions by seeking competent
advice from an expert with regards to the
location, installation and starting up of the
system.
We shall accept no liability for malfunctions
or inadequate cooling performance resulting
from the improper handling of the product.
All 230V electrical work on the system, namely
electrical connections and putting it into
operation for the first time, is to be performed
by a qualified electrician only.
Should you ever have to dispose of the
system, all work of removal, disassembly and
disposal is to be performed by an electrician
or refrigeration specialist only.
Art.-Nr.: 23.657.30
13.12.2004
8:44 Uhr
Seite 1
I.-Nr. 01014
SKA 3501 EQ C+H
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKA 3501 EQ C+H and is the answer not in the manual?

Questions and answers

Related Manuals for EINHELL SKA 3501 EQ C+H

Summary of Contents for EINHELL SKA 3501 EQ C+H

  • Page 1 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 1 ® Operating Instructions for the Indoor and Outdoor Device Split-system Air Conditioner Important note: This high-quality product will only offer optimum service if installed correctly and in the right place, and is put into operation for the first time by a suitably competent person.

  • Page 2: Technical Data

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 2 Technical data: Cooling capacity Watt/BTU/h 3600 / 12000 Heating capacity Watt/BTU/h 4100 / 14000 Energy efficiency 3.05 3.42 Air capacity Absorbed humidity Timer Operating voltage V ~ Hz 230 / 50...
  • Page 3 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 3 Sleep function: 24-hour program setting: Automatic adjustment of the air Computer-controlled simulation of Precise time setting. The switch- velocity: the physiological sleeping curve of over time and switching on time...

  • Page 4: Safety Instructions

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 4 Safety instructions going to be used for any lengthy period of time. Collections of dust can cause fire. Never step onto the outdoor device and never Read the safety instructions before you start to place anything on it.
  • Page 5 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 5 ndoor device: 1 Front panel 2 Air outlet vent 3 Air filter 4 Left / right slats 5 Controller 6 Emergency switch 7 Remote control 8 Color display 9 Top/bottom slats...
  • Page 6 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 6 Indicator display for the indoor device Indoor fan Fan speed Fan speed Cool Heat Temperature Sleep switch-on indicator in °C time Dehumidify/Dry Automatic function Device switched on Hours indicator Description of the indicator display 1.

  • Page 7: Remote Controll

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 7 Remote controll: Signal output window Function display On/Off switch Function switch (mode switch) 4a Automatic function 4b Cool 4c Dehumidify (Dry) 4d Heat Switch for air circulation velocity Sleep selection key...
  • Page 8 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 8 Preparing to use the remote control for the first time and setting the current time. Press the reset key with a pointed object. Make sure that the + and –...
  • Page 9 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 9 Preparation for use of the remote control - The radio signal has a range of approx. 6 m. - When the ON/OFF button is pressed, the indoor device will emit an audio signal once or twice to indicate that the device has received the signal.
  • Page 10 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 10 “I feel ...” automatic function A light press of the automatic function “I feel” can produce a comfortable room temperature. To start Press the ON/OFF KEY automatic function is indicated, the air conditioner switches to a comfortable room temperature.
  • Page 11 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 11 If the automatic function is not shown, press key “4” as often as is required for the automatic function (4a) to be shown. Each time the key is pressed the sequence changes: Automatic (4a) - Cool (4b) - Dehumidify (Dry) (4c) - Heat (4d).
  • Page 12 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 12 Selecting the mode function (cool (4b), dehumidify (4c), heat (4d)). Select Mode in order to finely adjust the room temperature or air flow. Important! If the ambient temperature is too high the cooling system works at maximum capacity.
  • Page 13 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 13 Changing the temperature Press the “too hot” key to reduce the temperature. Each press of the key reduces the set temperature by 1°C. Press the “too cool” key to increase the temperature. Each press the key increases the temperature by 1°C.
  • Page 14 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 14 Adjusting the air velocity and air flow Select the air flow and air circulation with which you feel most comfortable. Press the key to adjust the air velocity. Each press of the key...
  • Page 15 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 15 Recommended range for the air flow up/down. Adjust with the automatic key. Select cool, heat or dehumidify. Important: - In the dehumidify and cool function the air is blown downwards for 1 hour (Item 4 - 5).
  • Page 16 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 16 Comfortable sleep mode function Set this function if you desire a quiet room while sleeping. Proceed as follows: Press the key. This function is for a quiet room while sleeping.
  • Page 17 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 17 Full blast If this function is started, every part of the room will be cooled. Proceed as follows: Press the key. The cancel: Press the key again. Press the key during full blast to stop the operation.
  • Page 18 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 18 Timer mode (ON/OFF) Set the TIMER mode before going to sleep, or for the normal time that you come home or get up in the morning. Timer On setting...
  • Page 19 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 19 Important: Always switch off the device and pull the power plug before cleaning. The high speed of the fans can cause injury. Clean the indoor device with a soft cloth only.

  • Page 20: Troubleshooting

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 20 Troubleshooting Before you ever contact customer services, check the following: Device does not start. Check the following: 1. Is voltage present at the plug socket outlet? 2. Check the plug fuse! 3.
  • Page 21 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 21 Troubleshooting Problem Cause After pressing the start key the device is not started This is not a fault, it is for the protection of the by the microprocessor for 3 minutes.

  • Page 22: Important Installation Instructions

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 22 Important installation instructions Selecting the place to install the indoor device The air flow must never be blocked. The cooled air should be capable of being distributed to all parts of the room.

  • Page 23: Installation Instructions

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 23 Installation instructions: correctly and exactly. 7. Make sure that there is sufficient space available for later repair and service work. Check that the actual mains voltage is the same 8.

  • Page 24: Installation Accessories

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 24 Never install in locations exposed to aggressive Insert the wall air. hole tube Comply with all specified minimum distances (see Important notes on installation). The indoor and outdoor devices must only ever be installed in a vertical position.
  • Page 25 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 25 Fit the indoor device to the hook at the top of the 4.2 Mounting the outdoor device mounting plate and let it lock into place at the The outdoor device can be fastened to the bottom.

  • Page 26: Electrical Connection

    Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 26 detector spray or similar. gland on the ourddor Gland on the coolant device tube 6. Electrical connection 6.1 Important notes Follow all instructions and notes on electrical Plastic nut connection.
  • Page 27 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 27 damaged, contact a specialist firm. 3. If the power cable should ever be damaged, have it replaced by an electrician. 4. Important note: a) The maximum length of the coolant tube is 4 meters.
  • Page 28 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 28 ISC GmbH Konformitätserklärung Eschenstraße 6 D-94405 Landau/Isar ürün ile ilgili olarak AB Yönetmelikleri ve erklärt folgende Konformität gemäß EU-Richtlinie Normlar∂ gere©ince aµa©∂daki uygunluk aç∂kla und Normen für Artikel mas∂n∂ sunar.
  • Page 29 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 29 GARANTIEURKUNDE Auf das in der Anleitung bezeichnete Gerät geben wir 2 Jahre Selbstverständlich bleiben Ihnen die gesetzlichen Gewähr- Garantie, für den Fall, dass unser Produkt mangelhaft sein sollte. leistungsrechte innerhalb dieser 2 Jahre erhalten. Die Garan- Die 2-Jahres-Frist beginnt mit dem Gefahrenübergang oder der...
  • Page 30 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 30...
  • Page 31 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 31 Recycling alternative to the demand to return electrical devices: As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished.
  • Page 32 Anleitung SKA 3501 EQ C+H GB 13.12.2004 8:44 Uhr Seite 32 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only EH 12/2004 with the express consent of ISC GmbH.
