CTS MCT-RACK-12 User Manual

MCT-RACK-12
12 SLOTS COMPACT MEDIA
CONVERTER CHASSIS
User's Guide
Version 2.0
Trademarks
CTS is a registered trademark of Connection Technology Systems Inc. Contents subject to
revision without prior notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright  Connection Technology Systems Inc.
This publication may not be reproduced as a whole or in part, in any way whatsoever unless
prior consent has been obtained from Connection Technology Systems Inc.
FCC Warning
The MCT-RACK-12 media converter chassis have been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These standards are
designed to provide reasonable protection against harmful interference when these devices are
operated in a commercial environment. These devices generate, use, and can radiate radio
frequency energy and may cause harmful interference to radio communications unless installed
in accordance with this User's Guide. Operation of these devices in a residential area is likely
to cause harmful interference which will make the user responsible for the appropriate remedial
action at his / her own expense.
CE Mark Warning
These are Class A products. In a domestic environment these products may cause radio
interference in which case the user will need to consider adequate preventative methods.
1.
Checklist
The item listed below should be included in the package:

1 x MCT-RACK-12

1 x AC Power Cord (only for -1A model)
2 x AC Power Cord (only for -2A model)

4 x Screws

4 x Rubber Foot

1 x RJ-45 Cable for pulling media converter (150mm)

2 x Cover Plate for Power Slot
Please contact your sales representative immediately if any items are missing or damaged.
2.

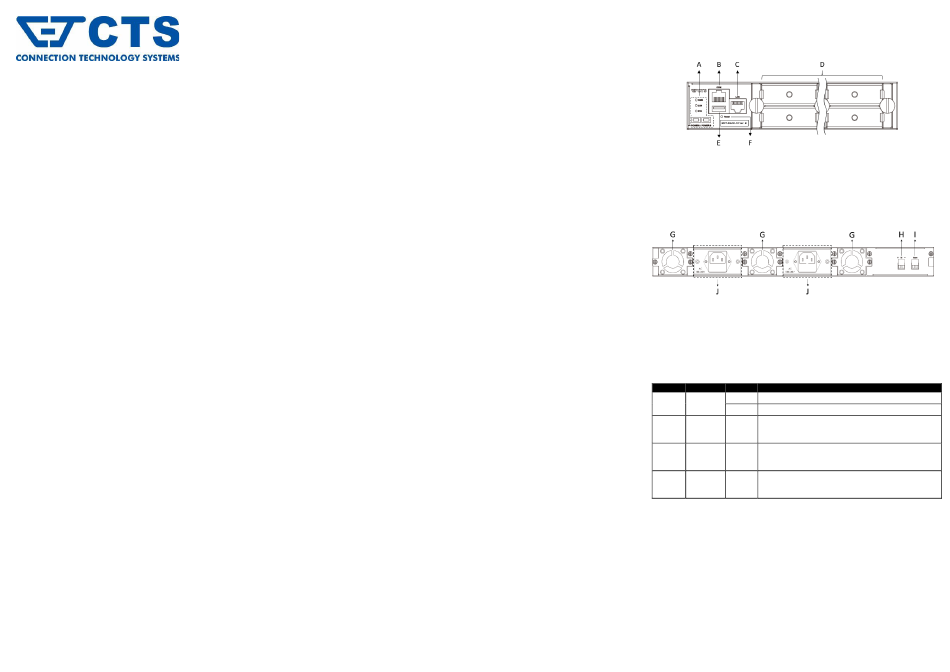

Appearance
2.1 Front Panel
A. LED indicators
B. RS-232 to RJ-45 console port (N/A)
C. 10/100Mbps RJ-45 LAN port (N/A)
D. 12 x Media converter slots
E. USB host (N/A)
Reset button (N/A)
F.
2.2 Rear Panel
G. Smart Fan
H. Digital Input Terminal Block (N/A)
I. Digital Output Terminal Block (N/A)
J. Slot for AC/DC power module
2.3 LED Definitions
Chassis LED
LED Definition Color
Off The power is currently unavailable
Power A Power
Power B Status
Green The power is currently available.
System
STA - N/A
Status
LAN Port
LAN - N/A
Status
Console
COM Port - N/A
Status
MCT Series Media Converter LED
Please refer to the User's Manual that comes with the MCT Series Media Converters for LED
indications.
Operation
